Front Seat Disassembly/Reassembly

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

NOTE:

Put on gloves to protect your hands.
Take care not to tear the seams or damage the seat covers.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
DTC codes will set if the ignition is turned ON (II) with the seats removed.

Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Remove the screws and release the hook (A), tabs (B), then remove the front cover (C).

Fig 1: Identifying Front Cover, Hook And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the recline cover (A).
1. Remove the screw (B) and detach the clip (C) and hooks (D).
2. Pull up the cover, then detach the hooks (E, F).
3. Disconnect the recline switch and up-down switch connector (G), and on the driver's seat, lumbar support switch connector (H).
4. Remove the wire harness (I) from the hook (J).

  Fig 2: Identifying Recline Cover, Wire Harness, Hook And Screws
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the center cover (A).
1. Release the hooks (B).
2. Pull up the cover, then detach the hook (C).

  Fig 3: Identifying Center Cover And Hooks
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
From under the seat cushion, release the hook strips (A) and pull the seat cushion cover (B) back. Detach the clip fastening the harness sock (C). Disconnect or detach the connectors, detach the harness clips (D), release the wire ties (E), then pull out the harness(es) out through the harness sock.
- Driver's seat
  - Side airbag connector (F)
  - Seat-back heater harness connector (G)
  - Recline motor/lumbar support motor harness connector (H)
- Passenger's seat
  - Side airbag connector (F)
  - ODS unit harness connector (I)
  - Recline motor harness connector (J)
    Driver's seat

    Fig 4: Identifying Driver'S Seat Clip (Fastener Location)
    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Passenger's seat

    Fig 5: Identifying Passenger'S Seat Clip (Fastener Location)
    Courtesy of AMERICAN HONDA MOTOR CO., INC.

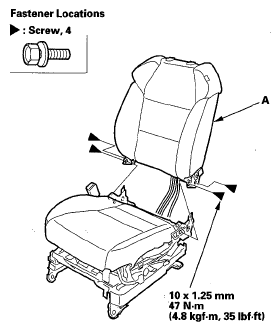

Remove bolts, then remove the seat-back (A).

Fig 6: Seat-Back Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Assemble the seat-back and seat cushion in the reverse order of disassembly, and note these items:
- Passenger's seat: Calibrate the ODS unit (see ODS UNIT OPERATION CHECK ).
- Check if the clips are damaged, and if necessary, replace it with new ones.
- Push the clip and hooks on the covers into place securely.
- Apply multipurpose grease to the moving parts of the seat track.
- Replace the wire ties you removed with new ones.
- Make sure each connector is plugged in properly.
- To prevent wrinkles in the seat cushion cover, stretch the material evenly over the pad before securing the hook strips.
