Displaying the Diagnostic Trouble Code (DTC)

  1. Turn the ignition switch to LOCK (0), and move the seat to a non-memorized position.
  2. Press and hold the MEMO button (A) and both position buttons (B) at the same time.

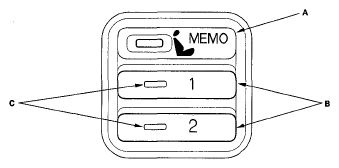

    Fig 1: Identifying MEMO Button And Position Buttons
    G05526870Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Turn the ignition switch to ON (II), and wait at least 1 second, then release the three buttons.
  4. After 1 second, the position button indicators (C) will blink to show the DTC.
