Regulator Valve Body

The regulator valve body is located on the main valve body. The regulator valve body contains the regulator valve, the cooler check valve, the air check valves, the lock-up control valve, the servo valve/shift fork shaft, and the 3rd accumulator.

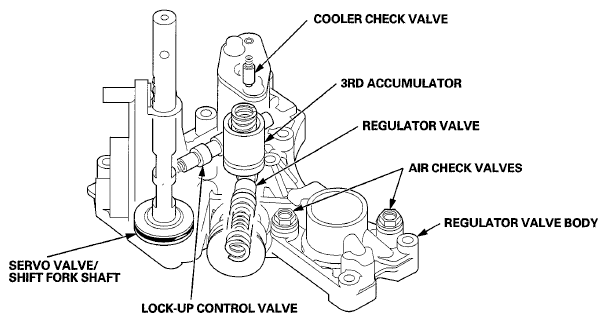

Fig 1: Identifying Regulator Valve Body Components
G06680702Courtesy of AMERICAN HONDA MOTOR CO., INC.
