PCM Electrical Connections ('08-10 models)

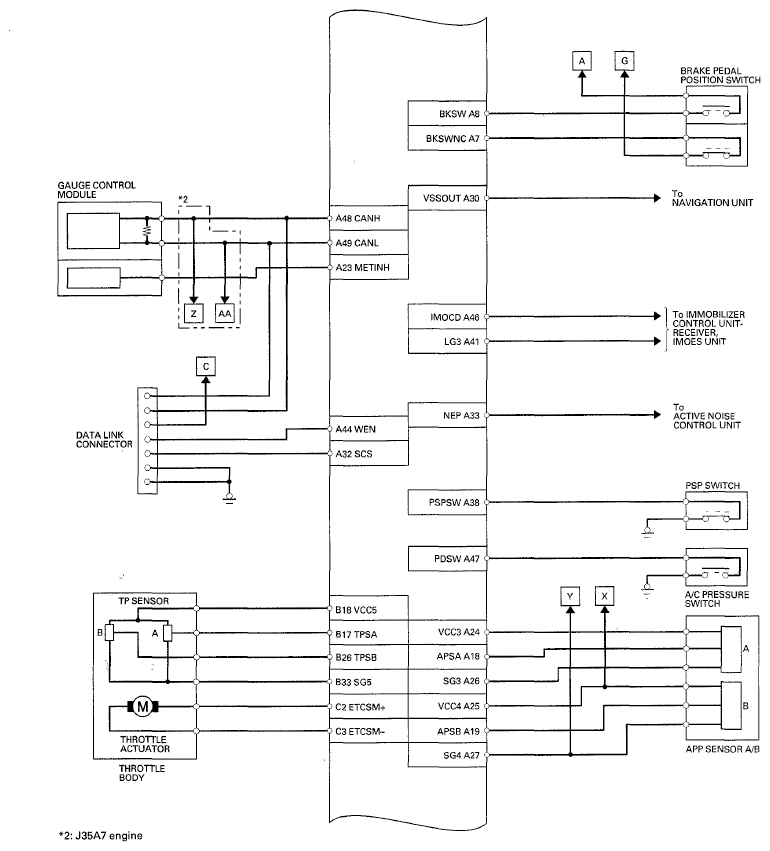

Fig 1: PCM Electrical Connections (1 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

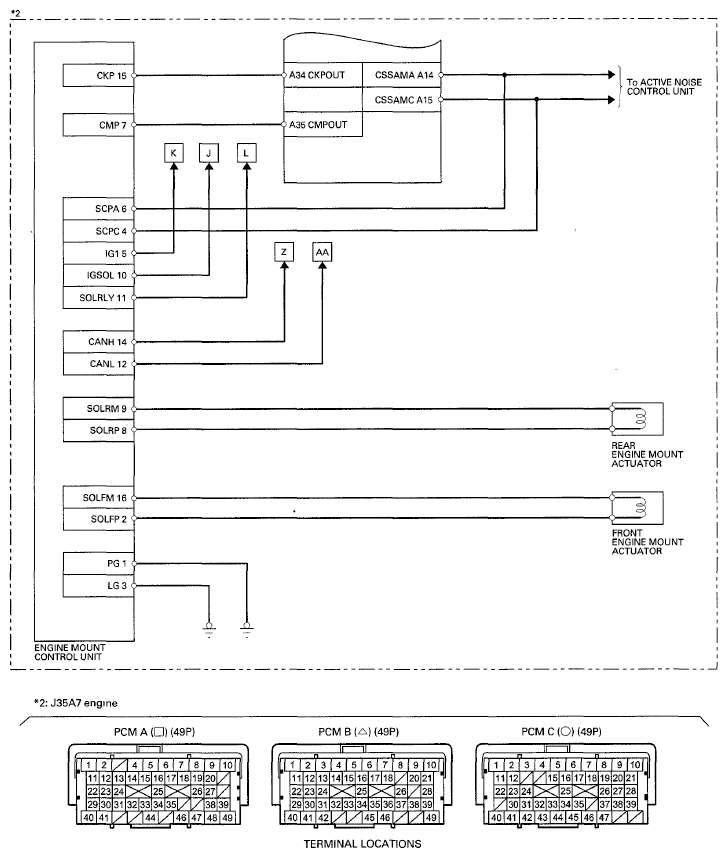

Fig 2: PCM Electrical Connections (2 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

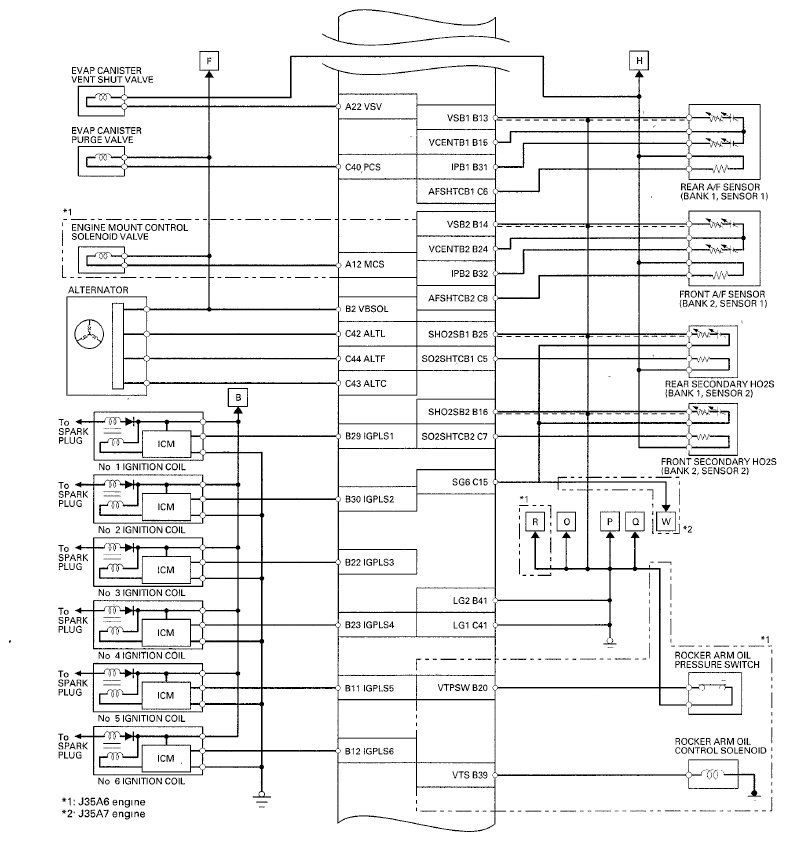

Fig 3: PCM Electrical Connections (3 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

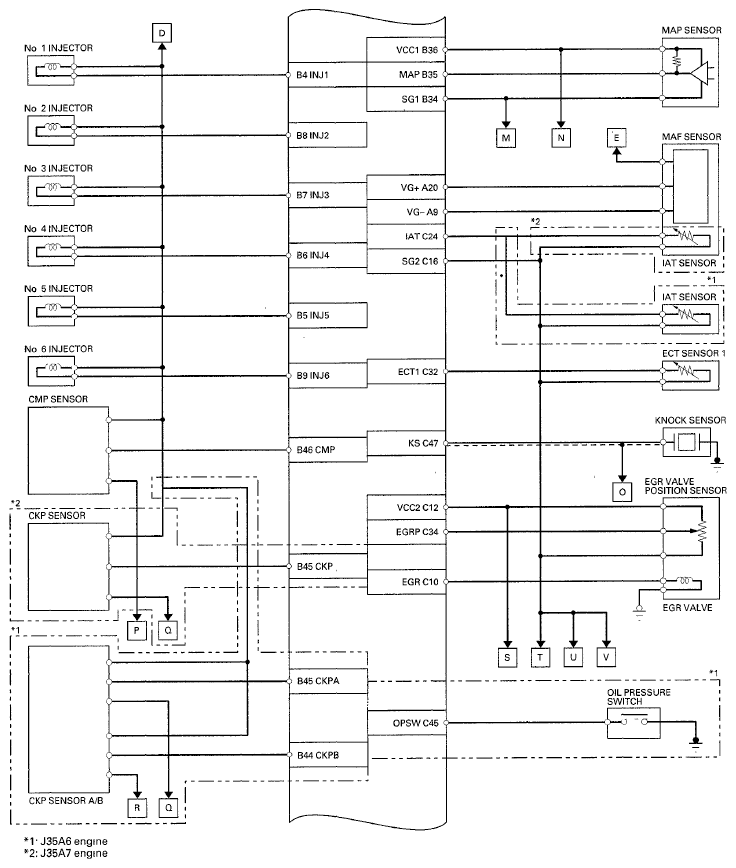

Fig 4: PCM Electrical Connections (4 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

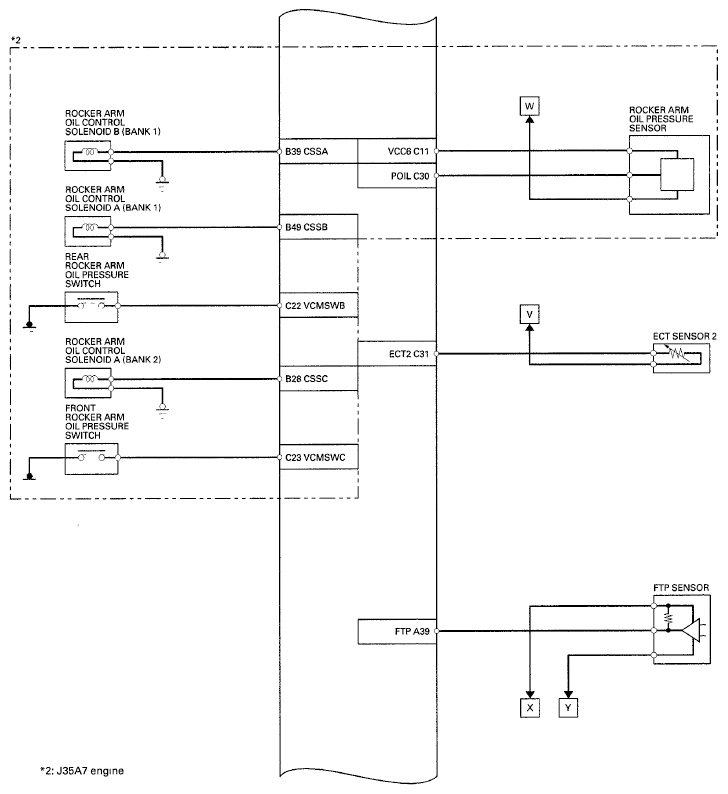

Fig 5: PCM Electrical Connections (5 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

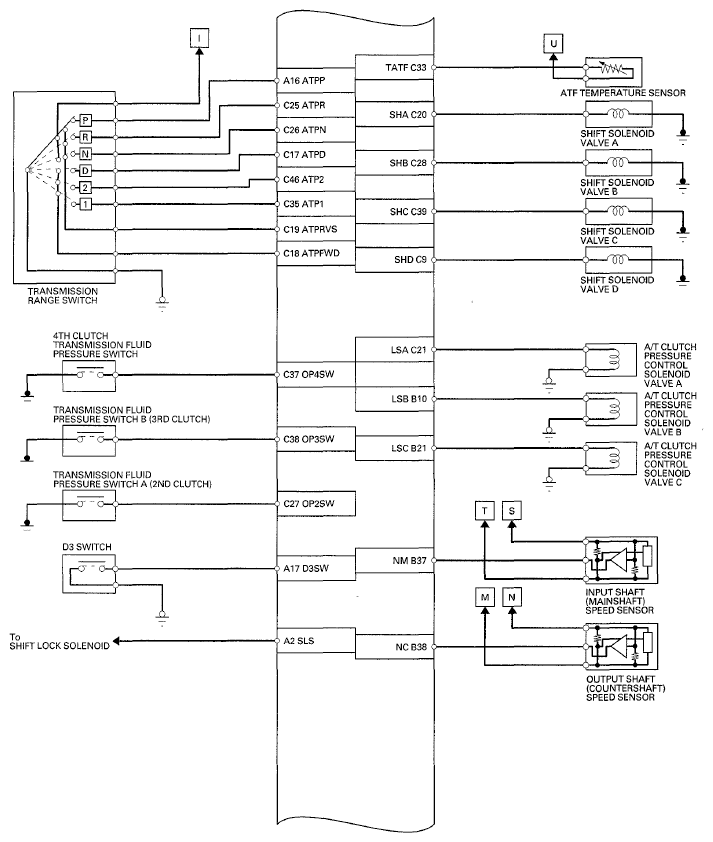

Fig 6: PCM Electrical Connections (6 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

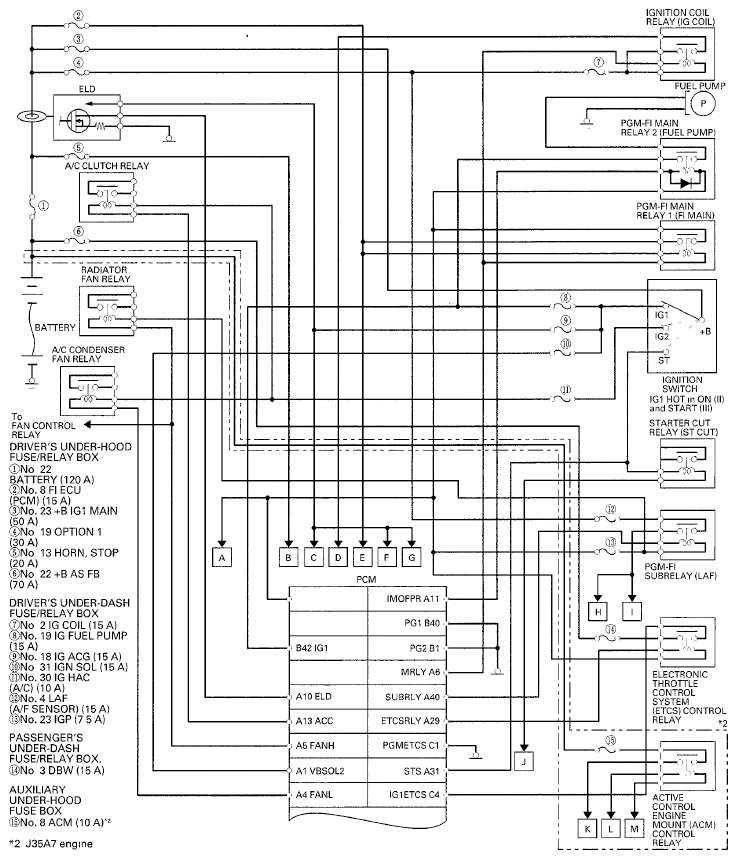

Fig 7: PCM Electrical Connections (7 Of 7)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
