J35A6 engine

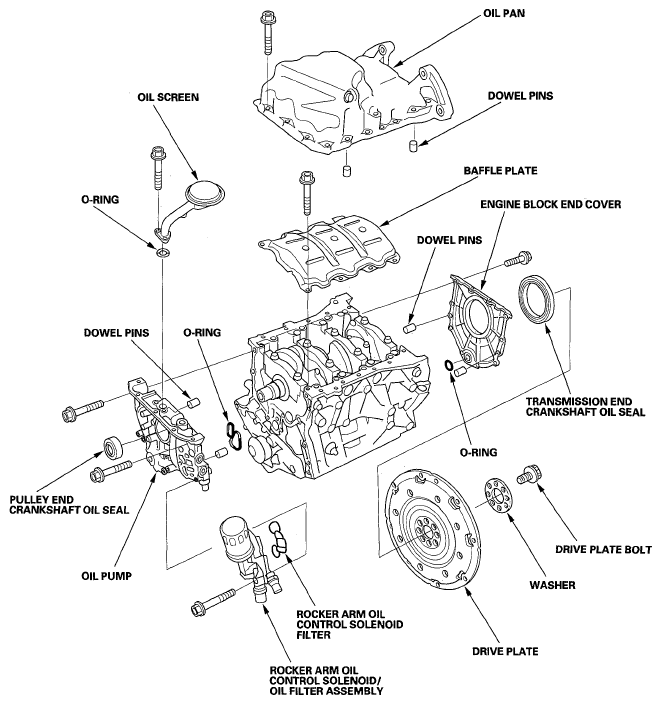

Fig 1: Identifying Engine Block Component Location - J35A6 Engine
G05523390Courtesy of AMERICAN HONDA MOTOR CO., INC.

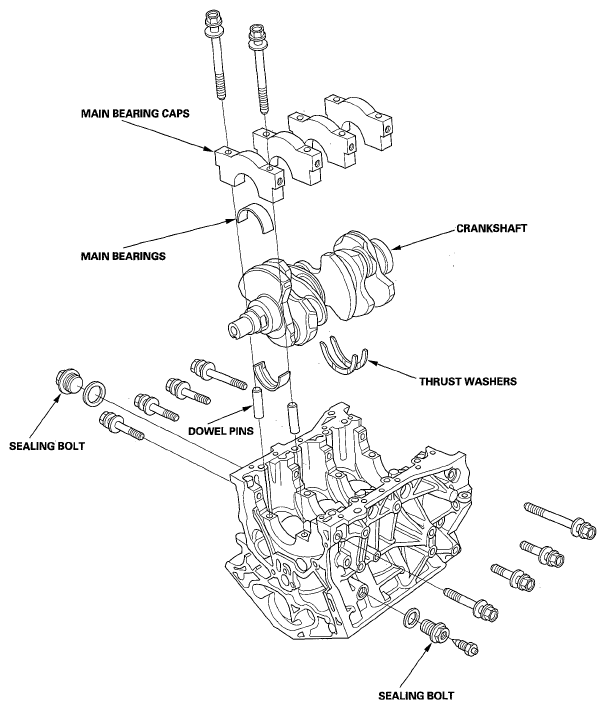

Fig 1: Identifying Engine Block Component Location - J35A6 Engine
G05523393Courtesy of AMERICAN HONDA MOTOR CO., INC.
