J35A7 Engine

  1. Disconnect the rear active control engine mount (ACM) actuator connector (A).

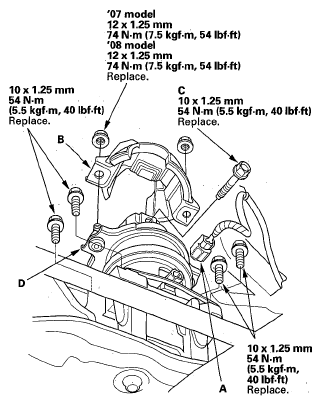

    Fig 1: Rear Engine Mount Stop And Rear Engine Mount Bolt With Torque Specifications
    G05522878Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Support the engine with a jack and a wood block under the oil pan.
  3. Remove the rear engine mount stop (B), then remove the rear engine mount bolt (C).
  4. Remove the rear engine mount(D).
  5. Install the rear engine mount in the reverse order of removal.
