J35A7 Engine

  1. Remove the battery (see BATTERY REMOVAL AND INSTALLATION ).
  2. Remove the battery base (see step 11 on ENGINE REMOVAL ).
  3. Remove the radiator (see RADIATOR REPLACEMENT ).
  4. Disconnect the front active control engine mount (ACM) actuator connector (A).

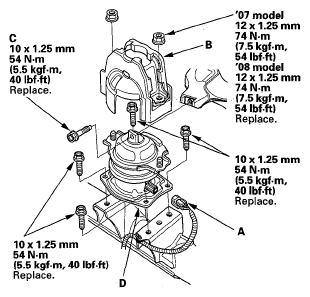

    Fig 1: Front Engine Mount Stop And Front Engine Mount Bolt With Torque Specifications
    G05522876Courtesy of AMERICAN HONDA MOTOR CO., INC.

    *: This illustration shows '07 model.

  5. Support the engine with a jack and a wood block under the oil pan.
  6. Remove the front engine mount stop (B), then remove the front engine mount bolt (C).
  7. Remove the front engine mount (D).
  8. Install the front engine mount in the reverse order of removal.
  9. Remove the battery (see BATTERY REMOVAL AND INSTALLATION ).
