J35A6 engine

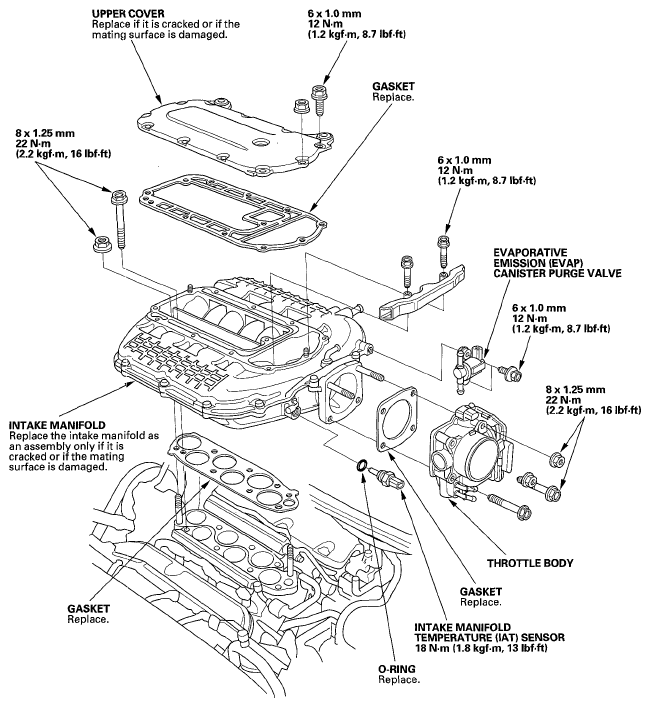

Fig 1: Exploded View Of Intake Manifold And Exhaust System - J35A6 Engine With Torque Specifications
G05523503Courtesy of AMERICAN HONDA MOTOR CO., INC.
