Component Location Index

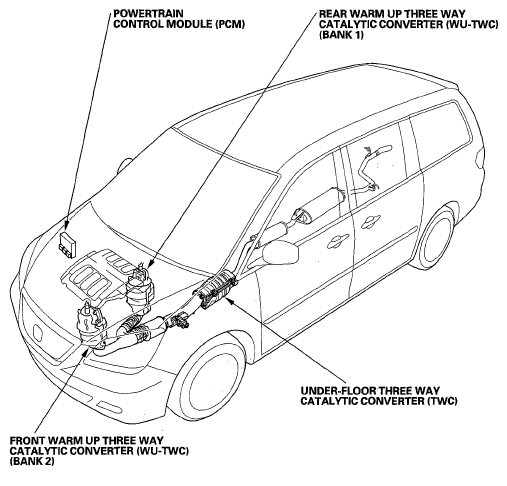

Fig 1: Identifying Catalytic Converter System Components Location

G05524117

Courtesy of AMERICAN HONDA MOTOR CO., INC.
