Relays And Control Unit Locations: Seat

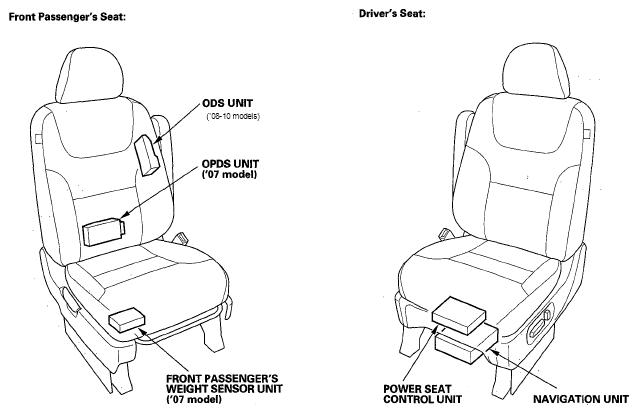

Fig 1: Identifying Seat Components Location

G05526479

Courtesy of AMERICAN HONDA MOTOR CO., INC.
