ATF Temperature Sensor Connector End View

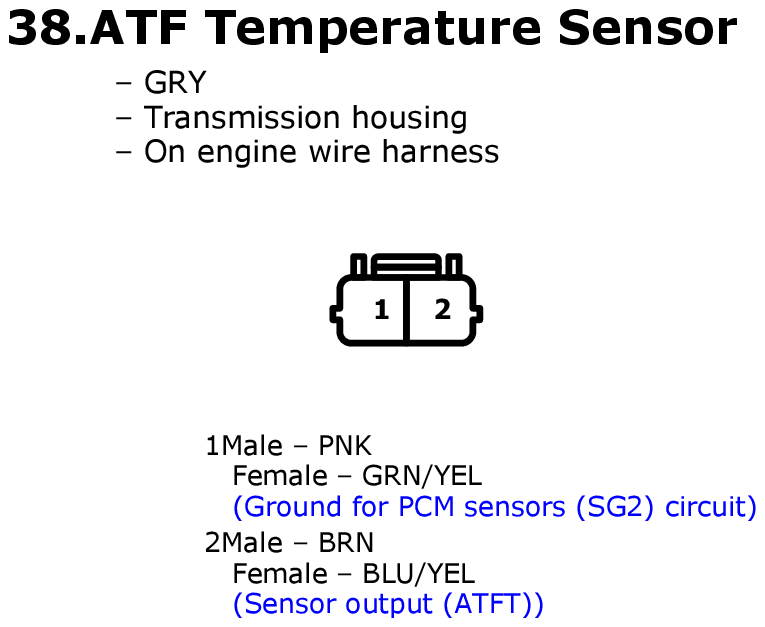

Fig 1: ATF Temperature Sensor Connector End View
GHHW4856Courtesy of AMERICAN HONDA MOTOR CO., INC.

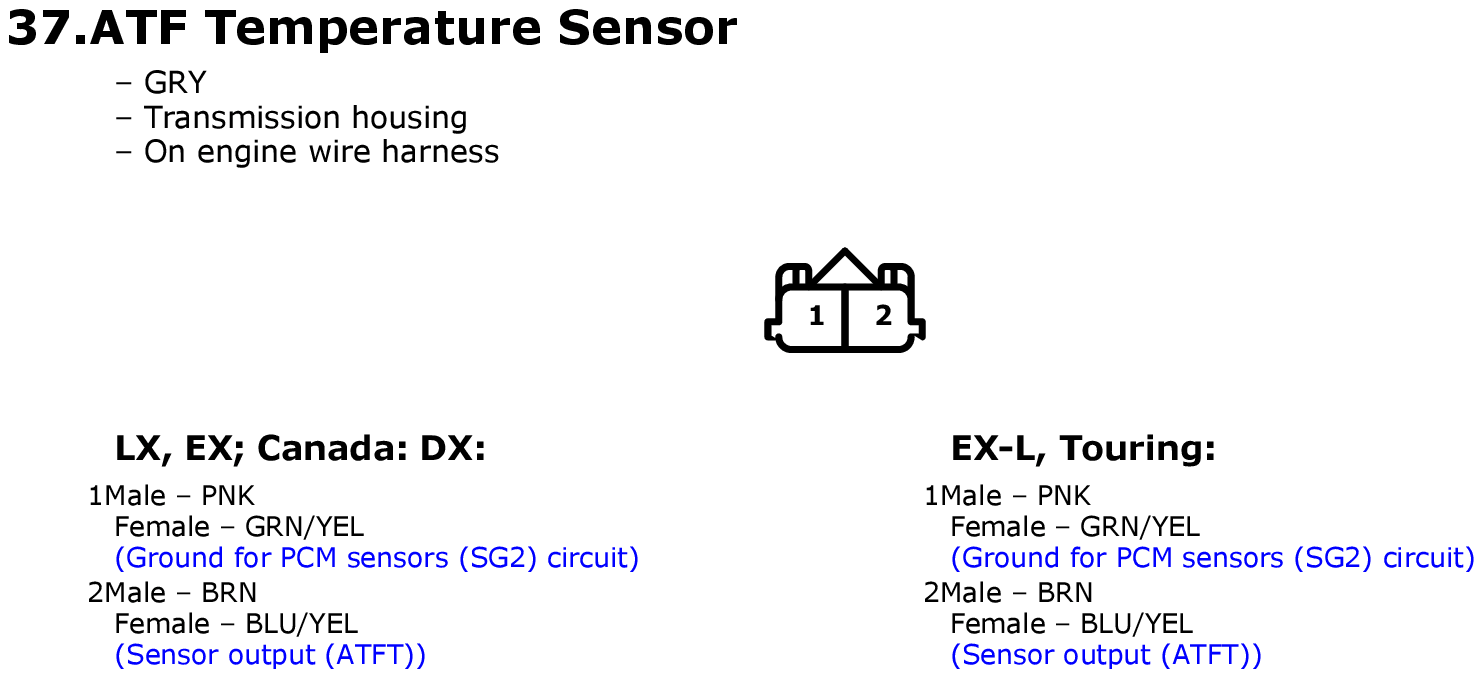

Fig 1: ATF Temperature Sensor Connector End View
GHHW5256Courtesy of AMERICAN HONDA MOTOR CO., INC.
