Home >> Honda >> 2007 >> Odyssey EX >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass >> Component Location Index

Component Location Index

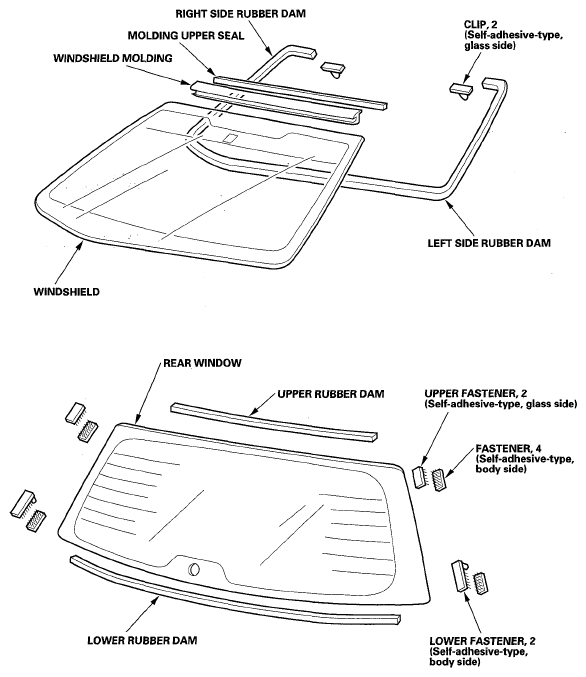

Fig 1: Identifying Glass Component Location (1 Of 2)
G05525591Courtesy of AMERICAN HONDA MOTOR CO., INC.

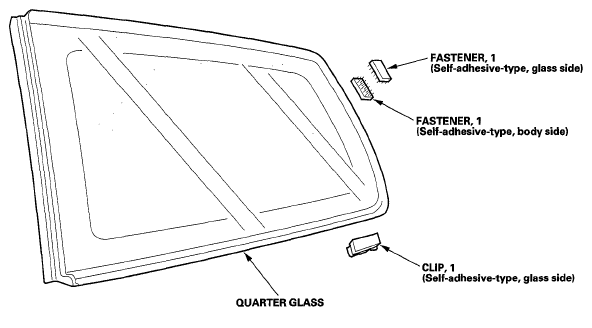

Fig 2: Identifying Glass Component Location (2 Of 2)
G05525592Courtesy of AMERICAN HONDA MOTOR CO., INC.
