Circuit Diagram

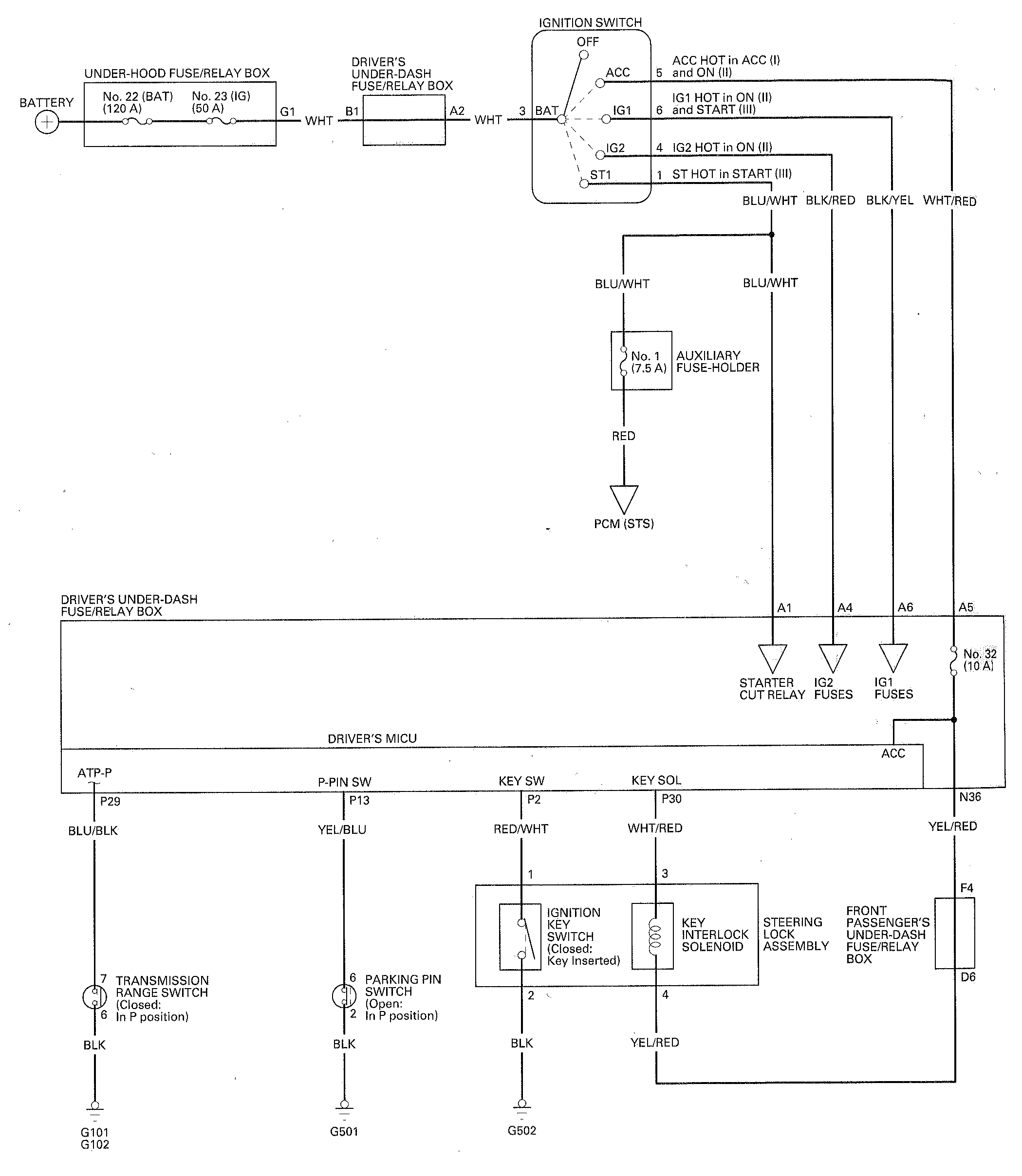

Fig 1: Ignition System - Circuit Diagram

G00492057

Courtesy of AMERICAN HONDA MOTOR CO., INC.
