Component Location Index

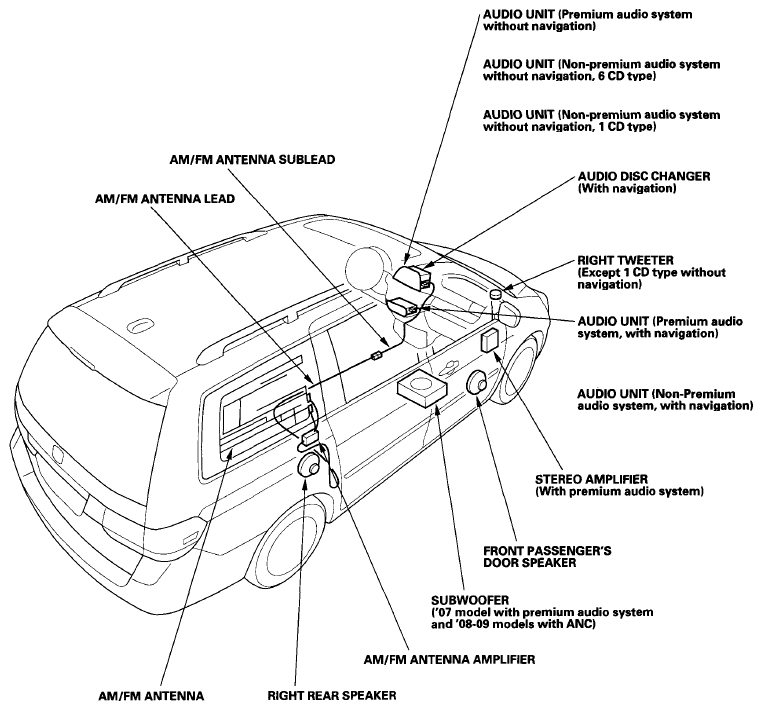

Fig 1: Identifying Audio System Component Location (1 Of 2)
G06277849Courtesy of AMERICAN HONDA MOTOR CO., INC.

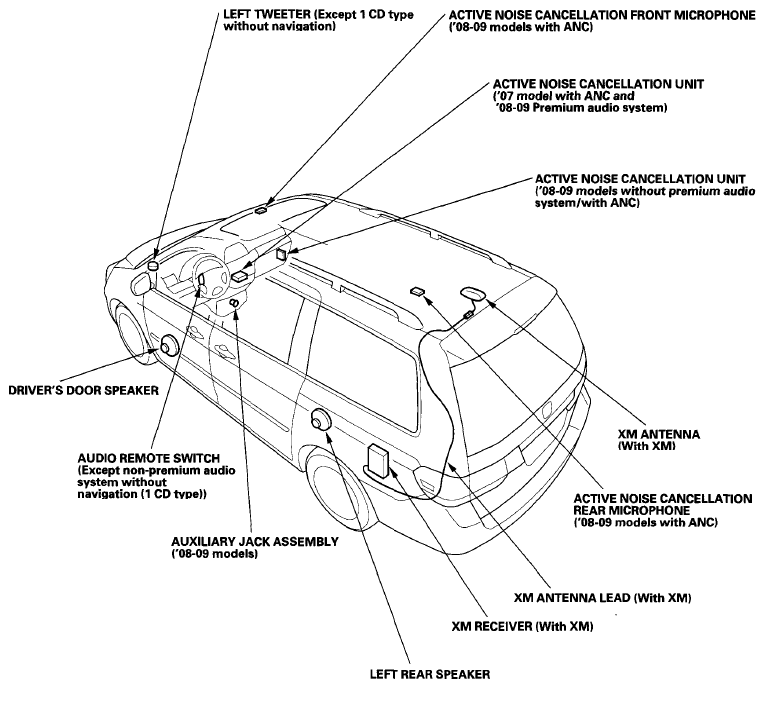

Fig 2: Identifying Audio System Component Location (2 Of 2)
G06277850Courtesy of AMERICAN HONDA MOTOR CO., INC.
