Component Location Index

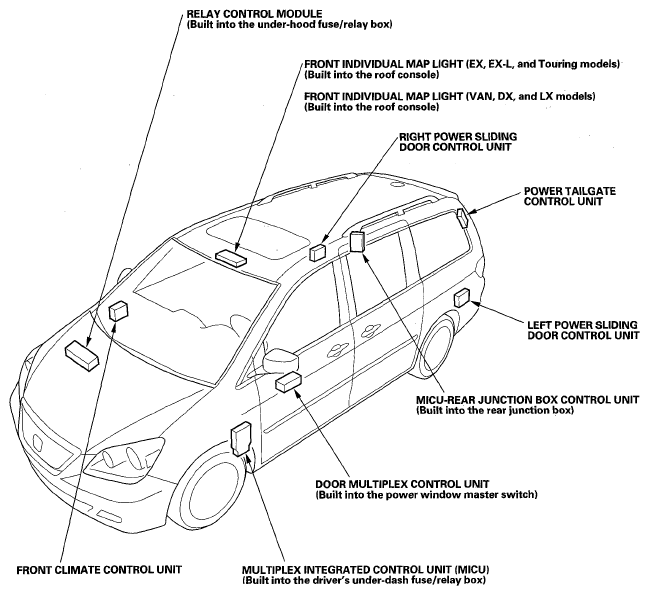

Fig 1: Identifying Multiplex Integrated Control System Component Location (1 Of 2)
G05526530Courtesy of AMERICAN HONDA MOTOR CO., INC.

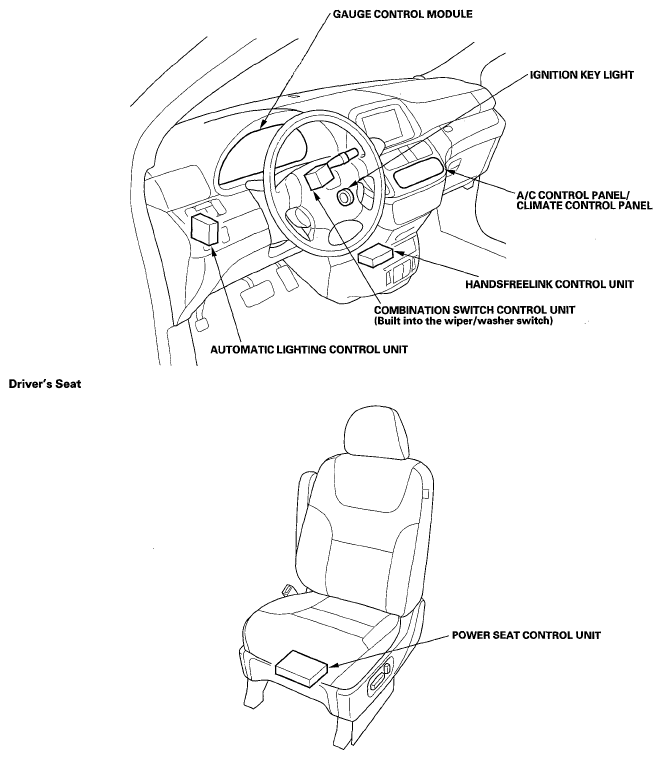

Fig 2: Identifying Multiplex Integrated Control System Component Location (2 Of 2)
G05526531Courtesy of AMERICAN HONDA MOTOR CO., INC.
