Body & Frame
>>
Frames, Subframes & Crossmembers
>>
Frame Repair Chart
>>
Top View
Top View

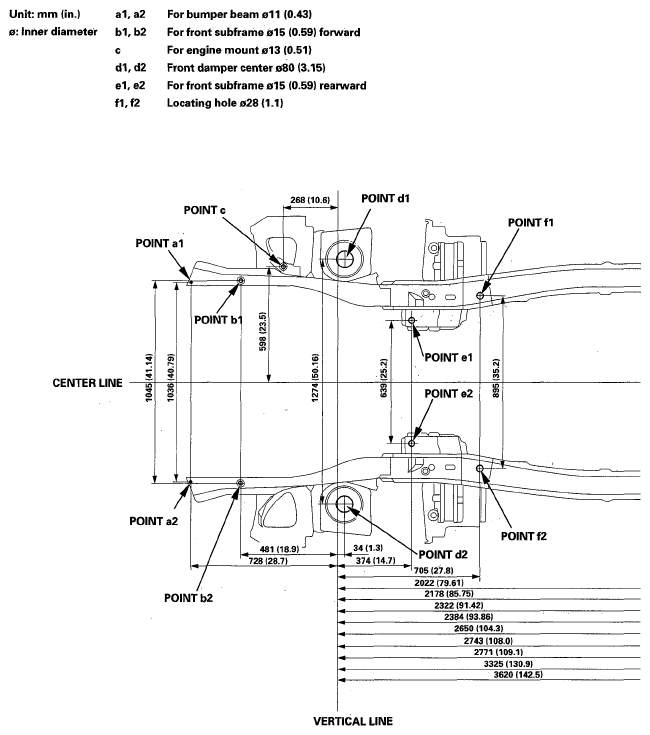

Fig 1: Identifying Frame Dimension - Top View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

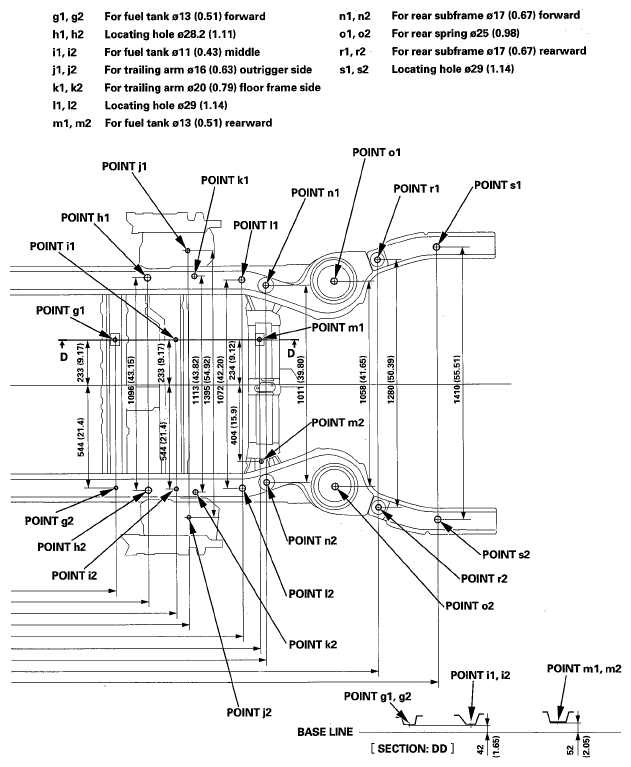

Fig 2: Identifying Frame Dimension - Top View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
