DVD Player Unit (EX-L: RES) Connector End View

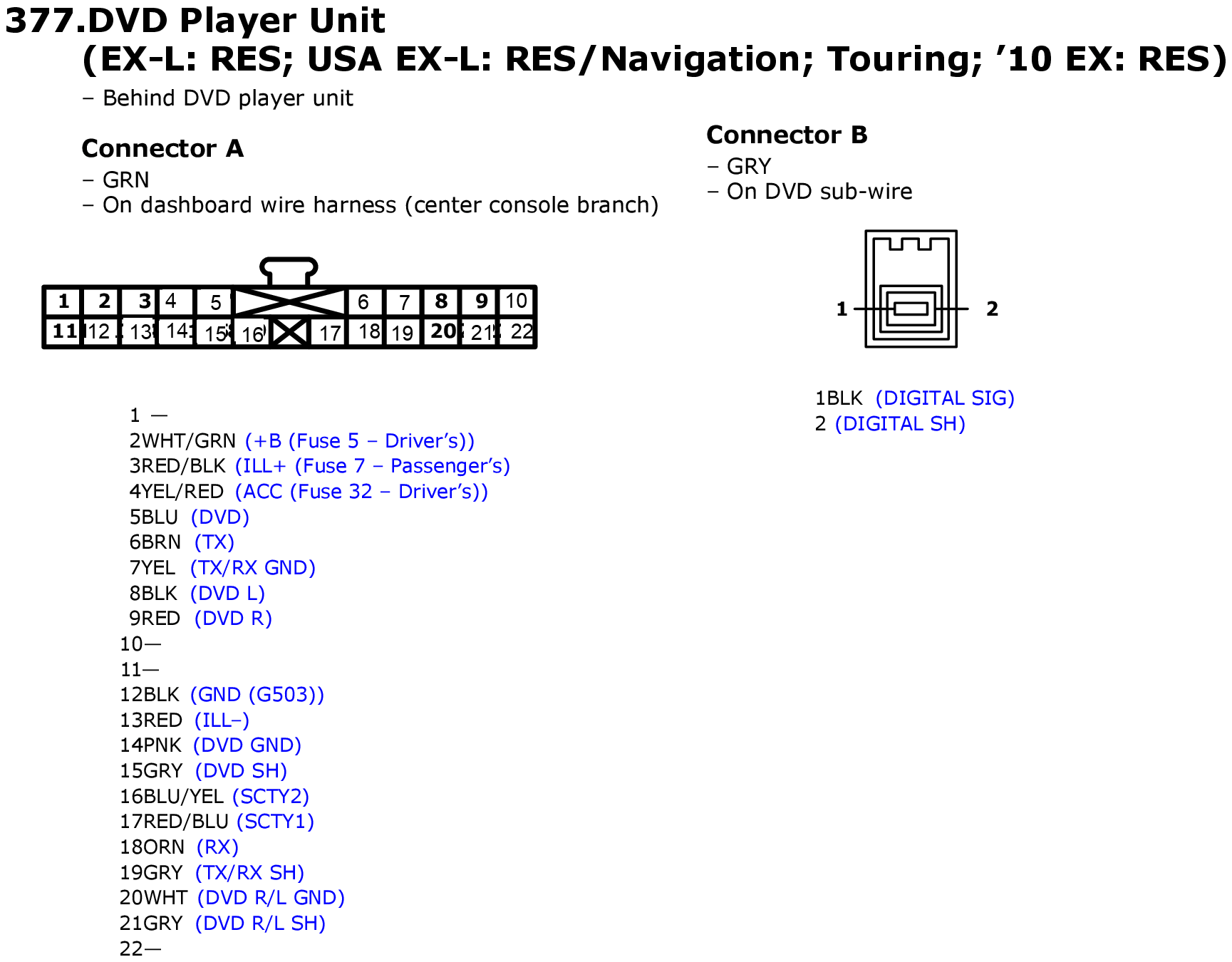

Fig 1: DVD Player Unit (EX-L: RES) Connector End View

GHHW5596

Courtesy of AMERICAN HONDA MOTOR CO., INC.
