Danger/Warning/Caution Label Locations

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Front Passenger's Compartment:

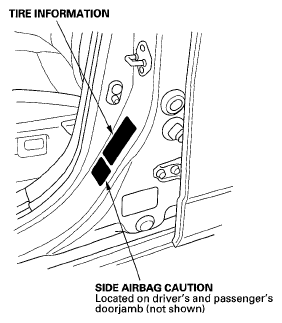

Fig 1: Identifying Danger/Warning/Caution Label Locations (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

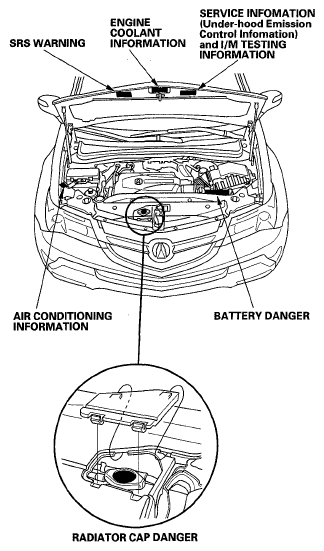

Fig 2: Identifying Danger/Warning/Caution Label Locations (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

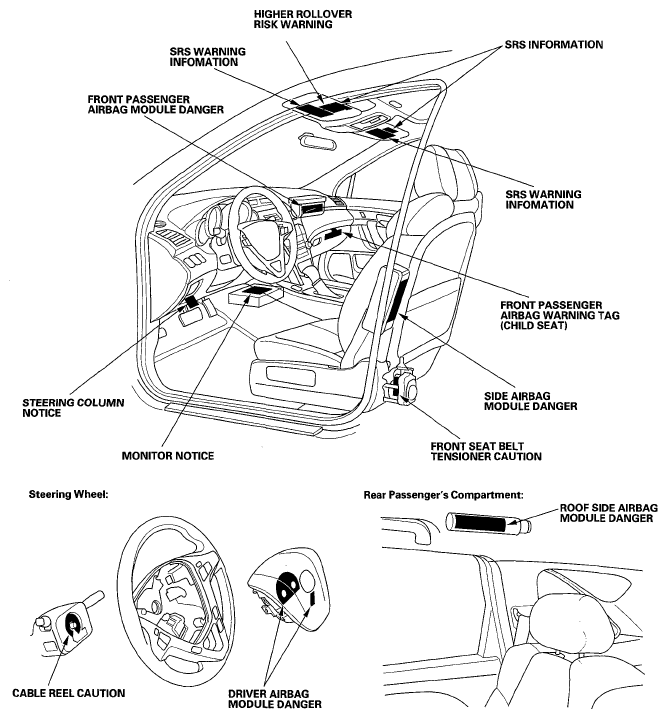

Fig 3: Identifying Danger/Warning/Caution Label Locations (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
