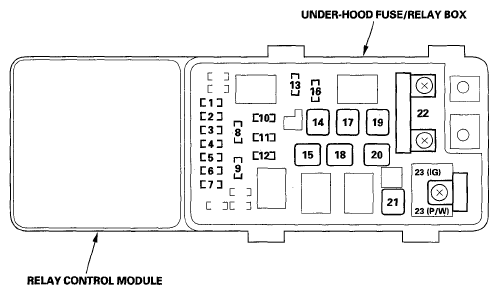

| 1 |
10A |
RED/YEL |
Left headlight (low beam) |
| 2 |
30 A |
Internal connection |
Control block |
| 3 |
10A |
WHT/RED |
Left headlight (high beam) |
| 4 |
15A |
RED/BLK |
Ambient light, Driving position memory switch, Left front parking light, Left license plate light. Left taillight, Left inner taillight, No. 7 fuse (in the passenger's under-dash fuse/relay box), Optional connector (fuse/relay box socket), Power mirror switch light, Rear A/C control panel. Right front parking light, Right license plate light, Right taillight, Right inner taillight |
| Internal connection |
Control block |
| Internal connection |
Relay control module |
| 5 |
10 A |
WHT/GRN |
Right headlight (high beam) |
| 6 |
10A |
RED/GRN |
Right headlight (low beam) |
| 7 |
7.5 A |
Internal connection |
Control block |
| 8 |
15A |
RED |
CMP sensor, CKP sensor A/B, Data link connector (DLC), Injectors, No. 23 fuse, PCM, PGM-FI main relay 1, PGM-FI main relay 2 |
| 9 |
30 A |
BLU/YEL |
A/C condenser fan motor |
| 10 |
- |
- |
Not used |
| 11 |
30 A |
BLU/BLK |
Fan control relay. Radiator fan motor |
| 12 |
7.5 A |
BLU/RED |
A/C compressor clutch |
| 13 |
20 A |
RED |
Brake pedal position switch, Ignition key switch |
| BLU/RED |
High horn, Low horn |
| Internal connection |
Control block |
| 14 |
30 A |
BLK/YEL |
MICU-rear junction box, Rear window defogger |
| 15 |
40 A |
YEL |
No. 5, 6, 7, 8, and 9 fuses (in the driver's under-dash fuse/relay box) |
| Internal connection |
No. 7 fuse (in the under-hood fuse/relay box) |
| 16 |
15A |
WHT/BLK |
Hazard warning switch and passenger's airbag cutoff indicator. Trailer lighting connector (YOP), Turn signal/hazard relay |
| 17 |
30 A |
WHT/RED |
VSA modulator-control unit |
| 18 |
30 A |
WHT |
VSA modulator-control unit |
| 19 |
30 A |
GRN/WHT |
No. 1,2,3, and 4 fuses (in the driver's under-dash fuse/relay box) |
| 20 |
40 A |
BLU |
No. 12, 13, 14, 15, 16, and 17 fuses (in the driver's under-dash fuse/relay box) |
| 21 |
40 A |
WHT/BLU |
Front blower motor |
| 22 |
120A (BAT) |
Internal connection |
Alternator, No. 1, 3, 4, 5, 6, 8, 9, 11, 12, 14, 15, 19, 20, 21, and 22 fuses (in the under-hood fuse/ relay box) |
| 70 A (AS F/B) |
BLK/WHT |
No. 1, 2, 3, 4, 5, 6, 8, and 9 fuses (in the passenger's under-dash fuse/relay box) |
| 23 |
50 A (IG) |
WHT |
Ignition switch |
| 50 A (P/W) |
WHT/BLU |
No. 27 and 28 fuses (in the driver's under-dash fuse/relay box). Power window relay |
| 40 A (P/W) |
