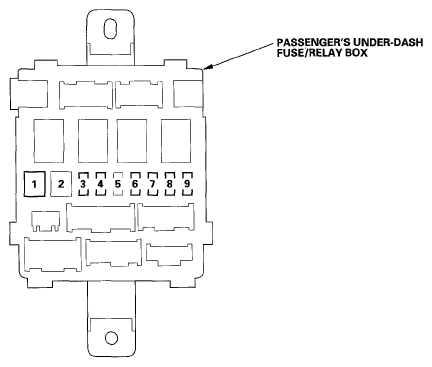

Passenger's Under-dash Fuse/Relay Box
PASSENGER UNDER-DASH FUSE/RELAY BOX REFERENCE
| Fuse Number | Amps | Wire Color | Component(s) or Circuit(s) Protected |
|---|---|---|---|
| 1 | 30 A | BLK/WHT | Rear blower motor relay (in the MICU-rear junction box) |
| 2 | - | - | Not used |
| 3 | 15A | YEL/GRN | PCM (THROTTLE ACTUATOR CONTROL RELAY OUT) |
| 4 | 20 A | RED/YEL | Left sliding door lock actuator. Multiplex integrated control unit (MICU) |
| 5 | - | - | Not used |
| 6 | 15 A | GRY/BLU | Driver's seat heater switch. Passenger's seat heater switch |
| 7 | 7.5 A | RED/BLK | Navigation display unit (with navigation), Navigation unit (with navigation), Ashtray light, Audio unit, Audio remote switch. Cruise control combination switch. Climate control panel (with climate control). Power sliding door switch, DVD player unit (with rear entertainment system). Rear controller and screen (with rear entertainment system). Glove box light, Driver's interior light switch, Park pin switch, VSA OFF switch. Adjustable pedal switch, Parking/back-up sensor switch. Power tailgate switch, Moonroof switch, Driver's seat heater switch. Front passenger's seat heater switch. Hazard warning switch, HFL voice control switch ('08-09 Touring models) |
| 8 | 20 A | GRN | Right power sliding door control unit |
| 9 | 10 A | WHT/YEL | Passenger's accessory power socket ('07 model) |
