Gearshift Mechanism Replacement

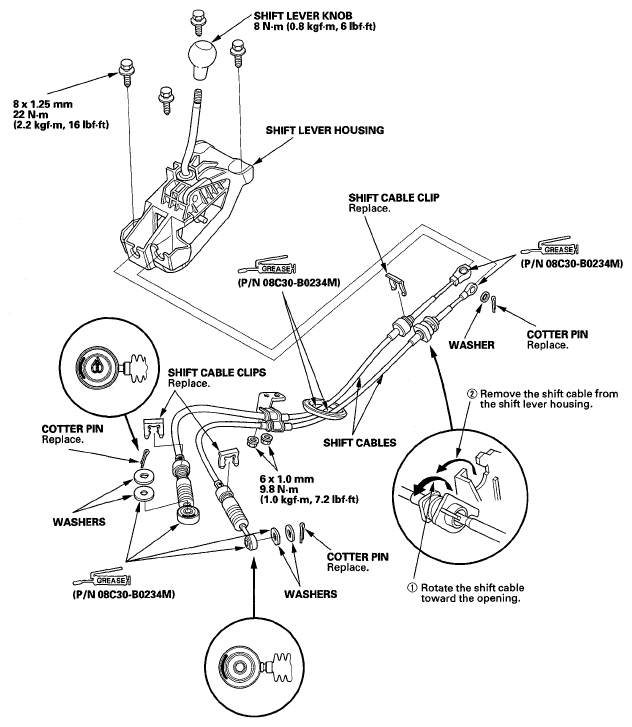

Fig 1: Gearshift Mechanism With Torque Specifications

G05454953

Courtesy of AMERICAN HONDA MOTOR CO., INC.
