Component Location Index

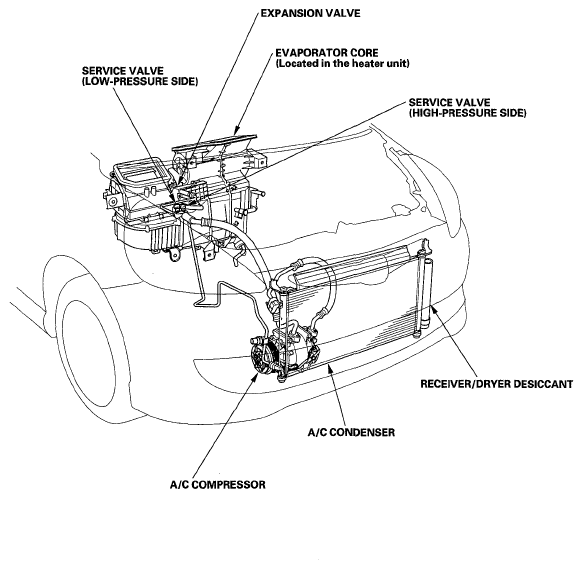

Fig 1: Identifying Heating/Air Conditioning Components (1 Of 3)
G05456459Courtesy of AMERICAN HONDA MOTOR CO., INC.

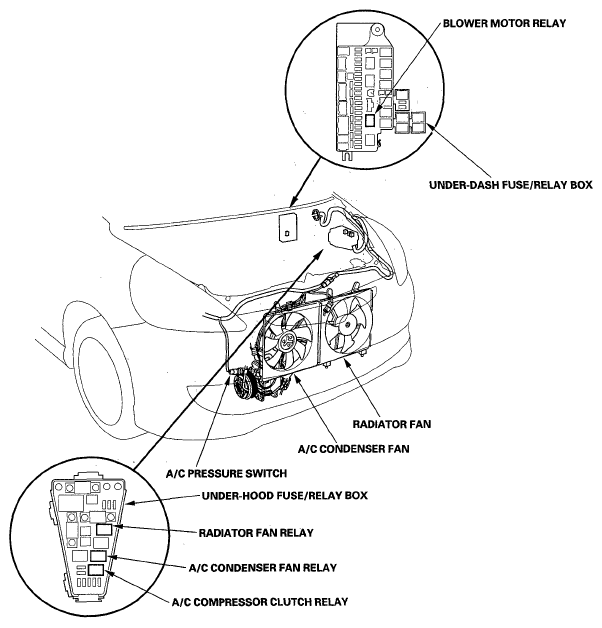

Fig 2: Identifying Heating/Air Conditioning Components (2 Of 3)
G05456460Courtesy of AMERICAN HONDA MOTOR CO., INC.

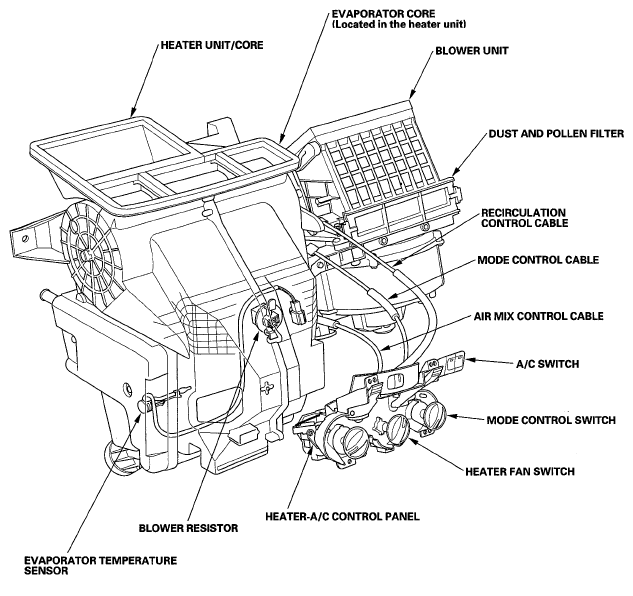

Fig 3: Identifying Heating/Air Conditioning Components (3 Of 3)
G05456461Courtesy of AMERICAN HONDA MOTOR CO., INC.
