Transmission Range Switch Test

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect the transmission range switch harness connector (A).
    Fig 1: Identifying Transmission Range Switch Harness Connector Terminal
    G05455407
  3. Check for continuity between terminals at the harness connector. There should be continuity between the terminals indicated in the following table for each switch position.

    Seven-position Transmission Range Switch Harness Connector

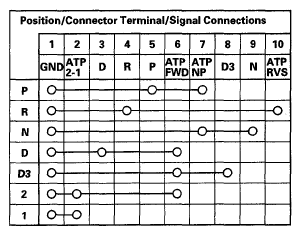

    Fig 2: Seven-Position Transmission Range Switch Harness Connector Continuity Chart
    G05455408

    Five-position Transmission Range Switch Harness Connector

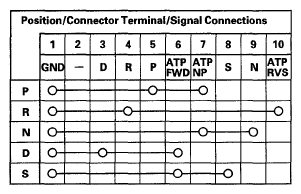

    Fig 3: Five-Position Transmission Range Switch Harness Connector Continuity Chart
    G05455409
  4. The transmission range switch test is finished if the test results are OK.

    If there is no continuity between any terminals, go to step  5.

  5. Raise the vehicle on a lift, or apply the parking brake, block the rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
  6. Remove the transmission range switch cover.
    Fig 4: Transmission Range Switch Cover With Mounting Bolts With Torque Specification
    G05455410
  7. Disconnect the transmission range switch connector.
    Fig 5: Identifying Transmission Range Switch Connector Terminals
    G05455411
  8. Check for continuity between terminals at the switch connector. There should be continuity between the terminals in the following table for each switch position.

    Seven-position Transmission Range Switch Connector

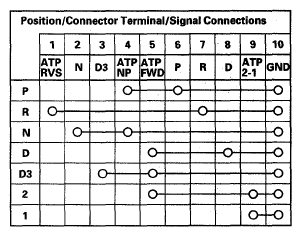

    Fig 6: Seven-Position Transmission Range Switch Connector Continuity Chart
    G05455412

    Five-position Transmission Range Switch Connector

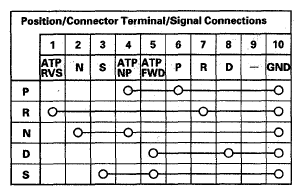

    Fig 7: Five-Position Transmission Range Switch Connector Continuity Chart
    G05455413
  9. If the transmission range switch continuity check is OK, replace the faulty transmission range switch harness.
  10. If there is no continuity between any terminals, remove the transmission range switch, and check the end of the selector control shaft (A).

    Selector Control Shaft

    Width (B): 6.1-6.2 mm (0.240-0.244 in.)

    End Gap (C): 1.8-2.0 mm (0.07-0.08 in.)

    Fig 8: Identifying Selector Control Shaft Width And End Gap
    G05455414
  11. If the measurement of the selector control shaft end is within the standard, replace the transmission range switch. If the measurement is out of the standard, repair the selector control shaft end, and recheck the transmission range switch continuity.
