Heater Relay: Inspection

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT HEATER RELAY
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between each terminal.

        Standard

        TESTER CONNECTION SPECIFIED CONDITION TABLE

        Tester Connection Specified Condition
        3 - 4 Below 1
        3 - 4 10 k or higher
        (Apply battery voltage to terminals 1 and 2)
        3 - 5 10 k or higher
        3 - 5 Below 1
        (Apply battery voltage to terminals 1 and 2)

        If the result is not as specified, replace the relay.

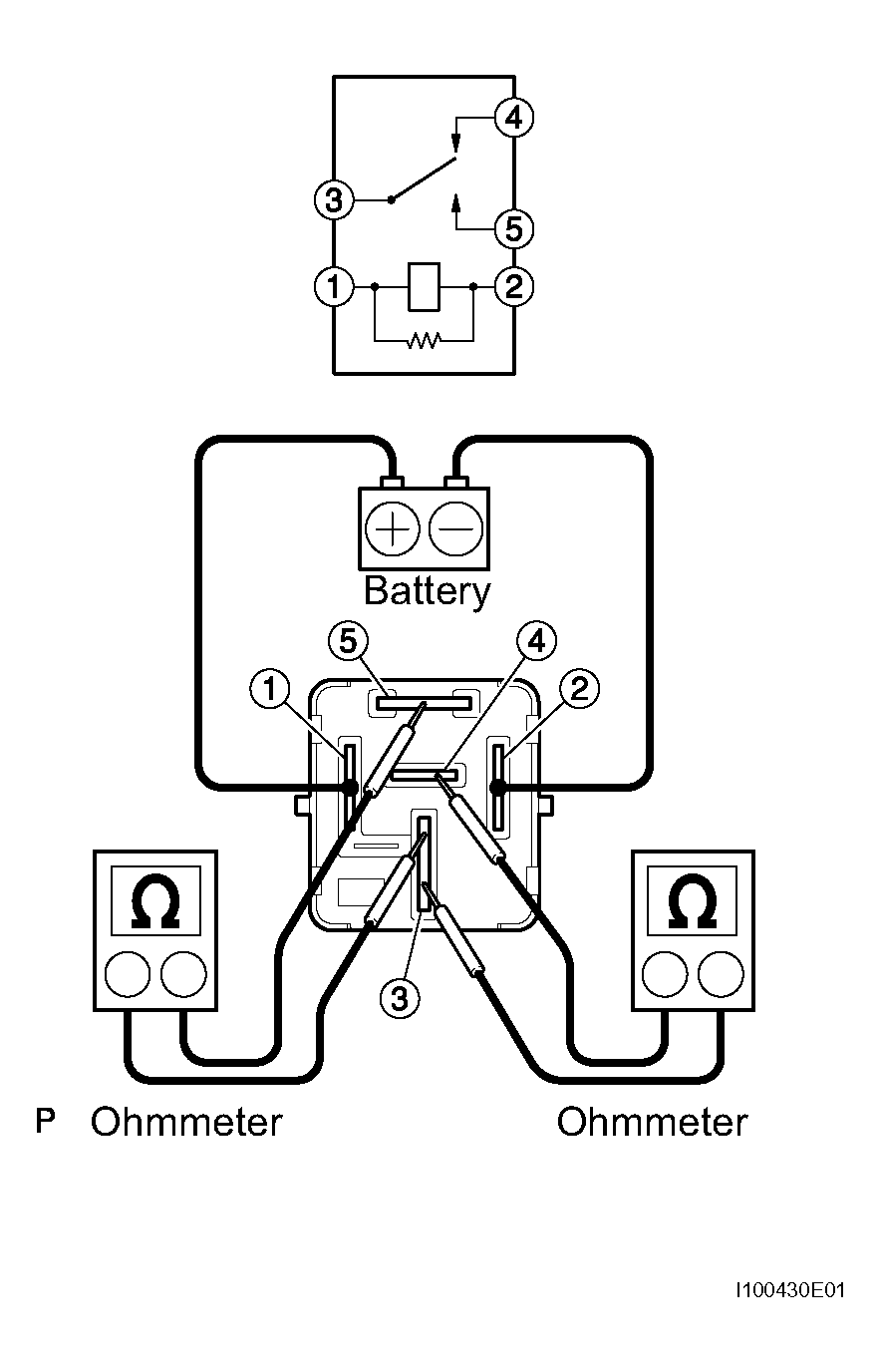

        Fig 1: Measuring Resistance Between Terminals Using Ohmmeter
        G04411535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
