Compressor And Magnetic Clutch: Components

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

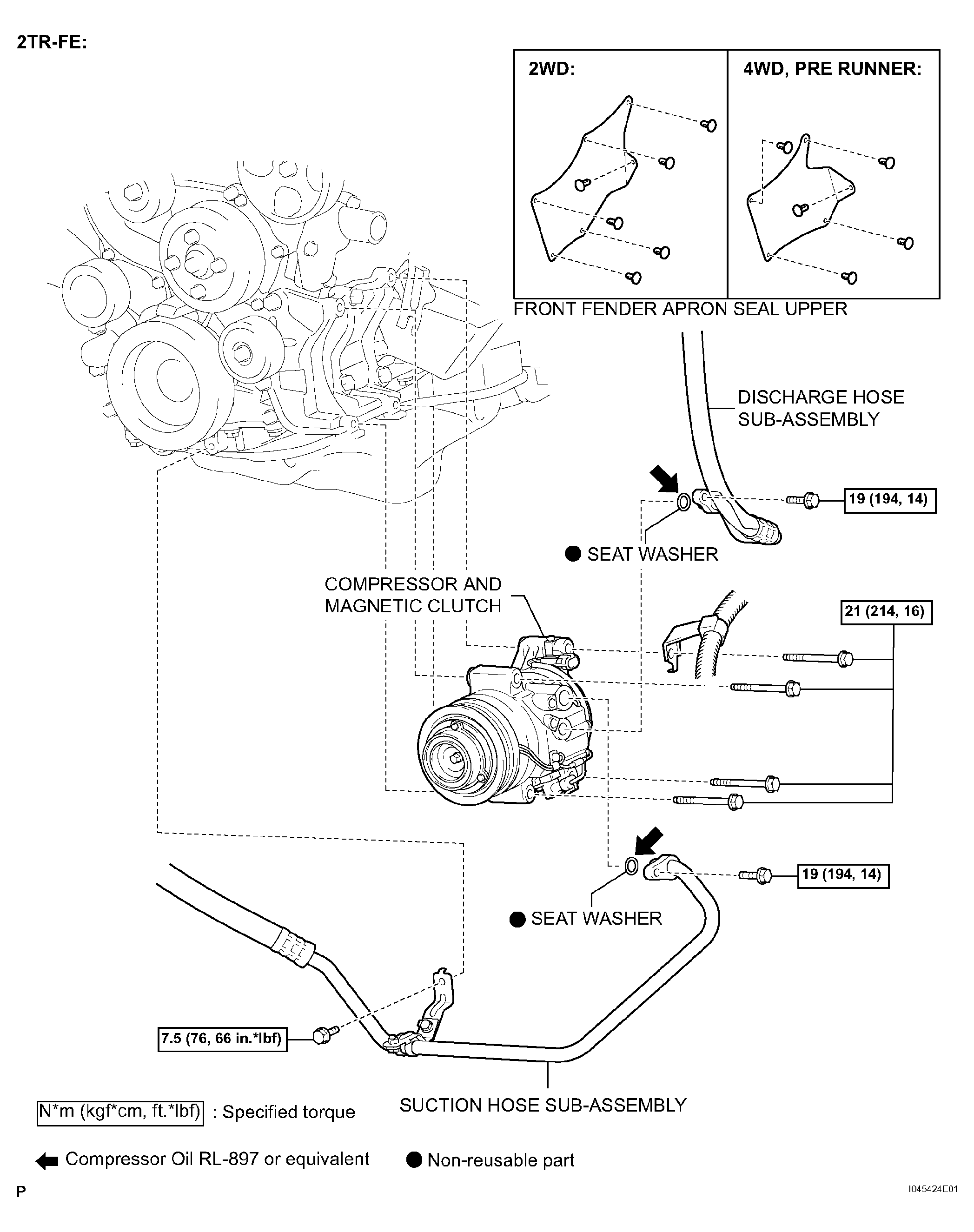

Fig 1: Compressor & Magnetic Clutch Replacement Components With Torque Specifications (1 Of 3)
G04411484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

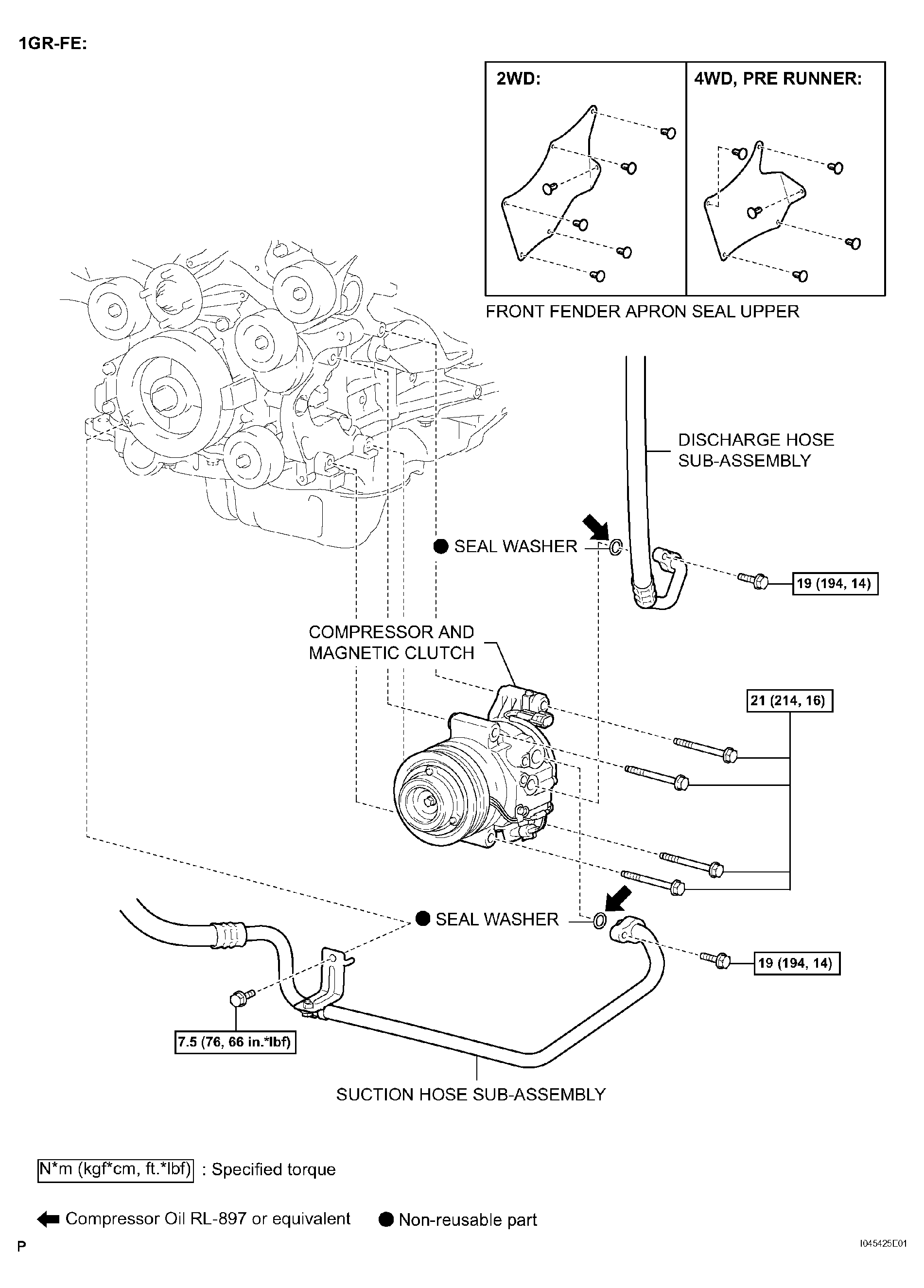

Fig 2: Compressor & Magnetic Clutch Replacement Components With Torque Specifications (2 Of 3)
G04411485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

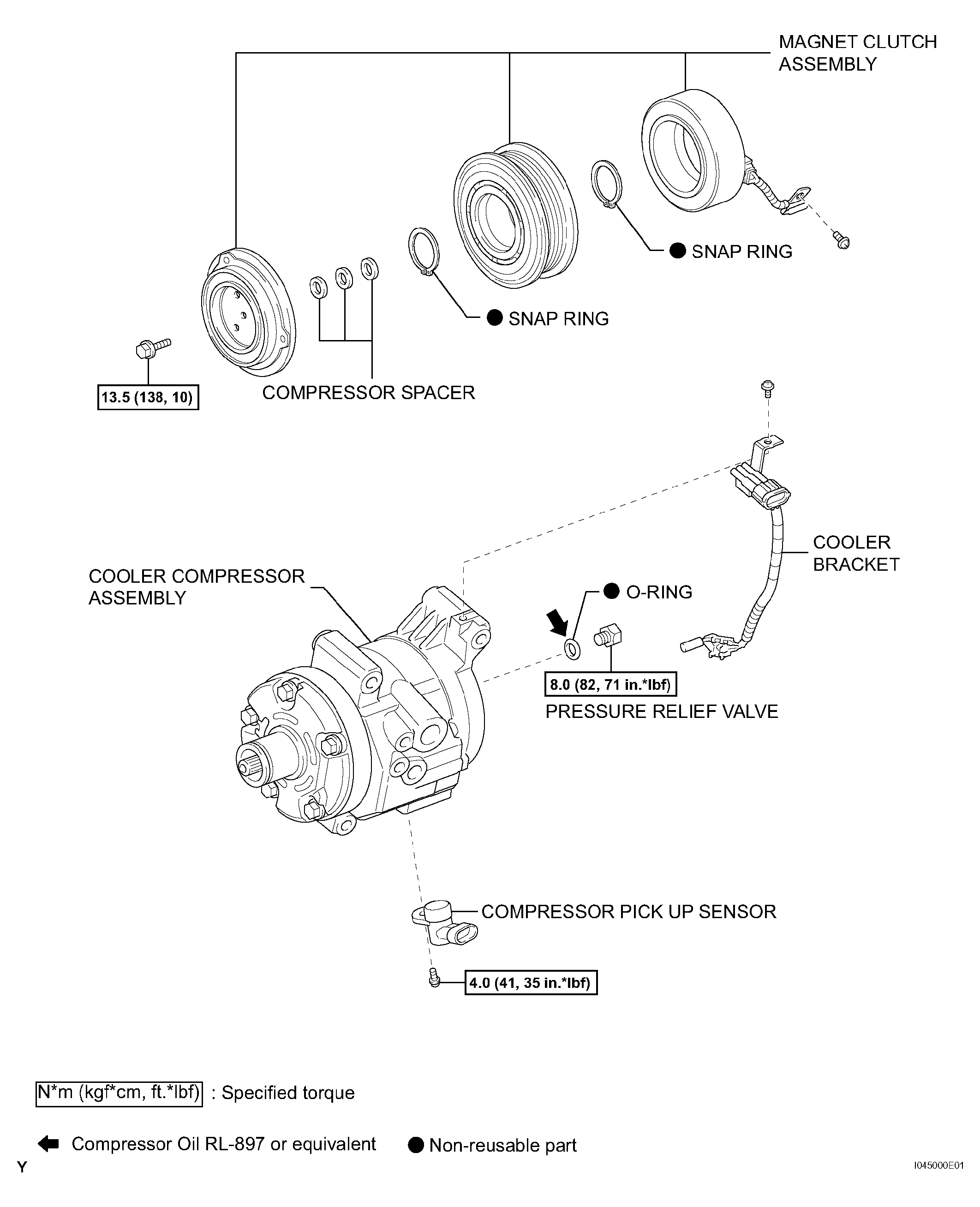

Fig 3: Compressor & Magnetic Clutch Replacement Components With Torque Specifications (3 Of 3)
G04411486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
