Blower Resistor: Inspection

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT BLOWER RESISTOR
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Standard

        TESTER CONNECTION SPECIFIED CONDITION TABLE

        Tester Connection Specified Condition
        1 (M1) - 3 (COMMON) 0.792 to 0.968 at 20°C (68°F)
        2 (M2) - 3 (COMMON) 0.342 to 0.418 at 20°C (68°F)
        4 (Lo) - 3 (COMMON) 2.07 to 2.53 at 20°C (68°F)

        If the result is not as specified, replace the blower resistor.

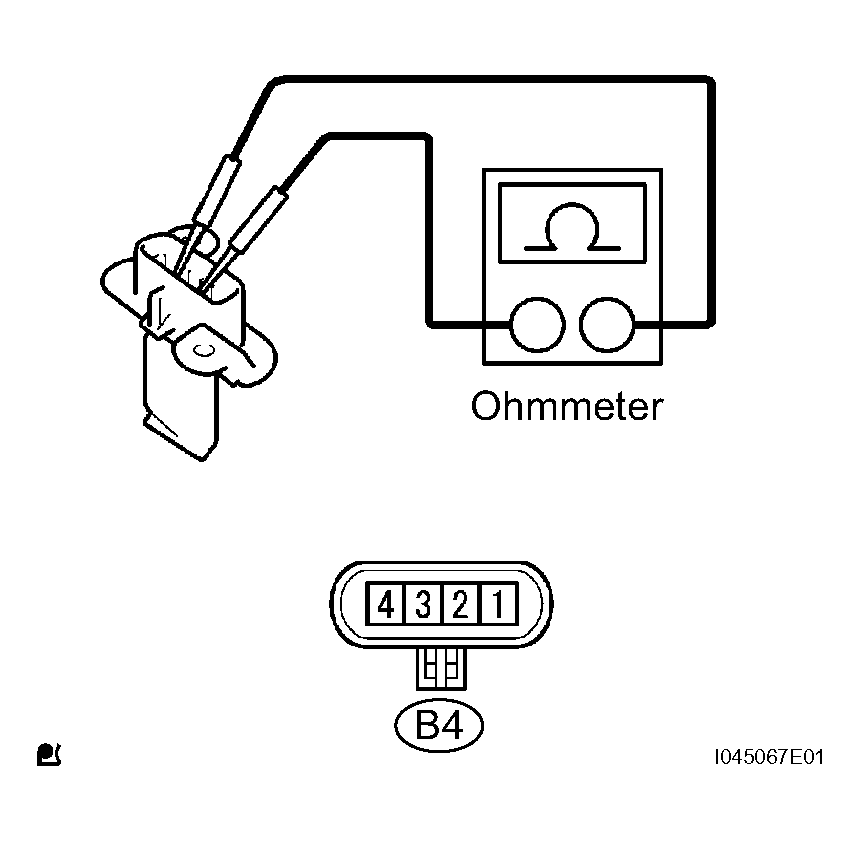

        Fig 1: Measuring Resistance Between Terminals Using Ohmmeter
        G04411483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
