Blower Motor: Inspection

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT BLOWER MOTOR
1. Inspect the blower motor.
  1. Connect the positive (+) lead from to terminal 1 and negative (-) lead to terminal 2, then check that the motor operates smoothly.
    CAUTION:
    Use safety glasses

    Do not use battery power, use DC power supply (30 A).

    Do not operate the motor and fan assembly at over 5 V.

    Be sure to hold the motor in a stable and safe way.
    If the result is not as specified, replace the blower motor.

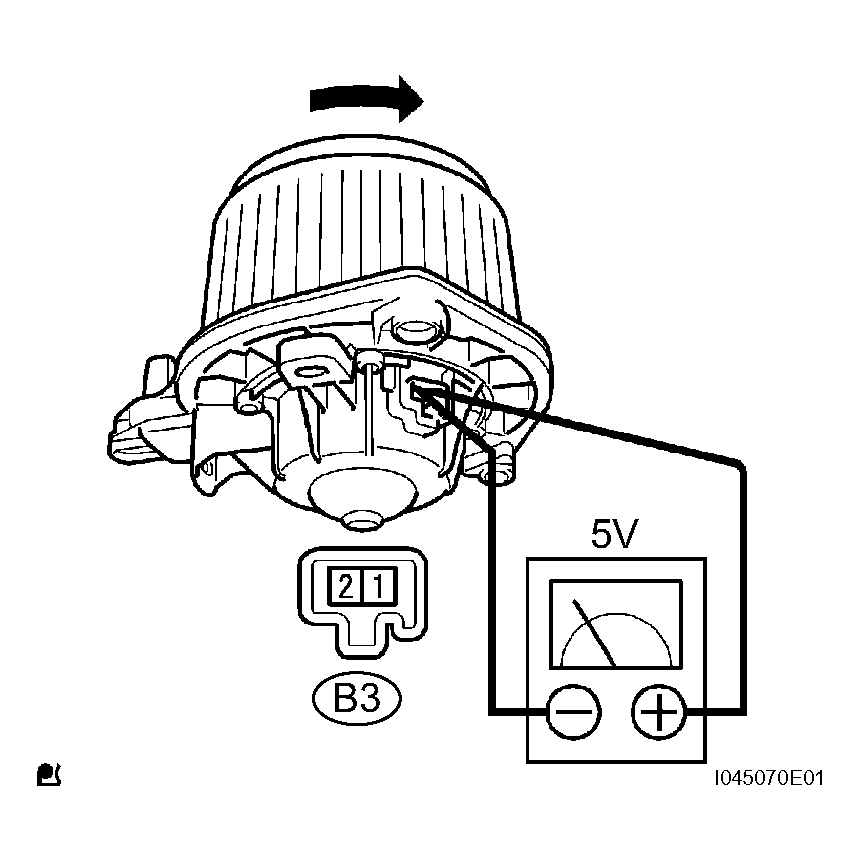

    Fig 1: Connecting Positive (+) Lead From To Terminal 1 & Negative (-) Lead To Terminal 2
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
