System Diagram

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

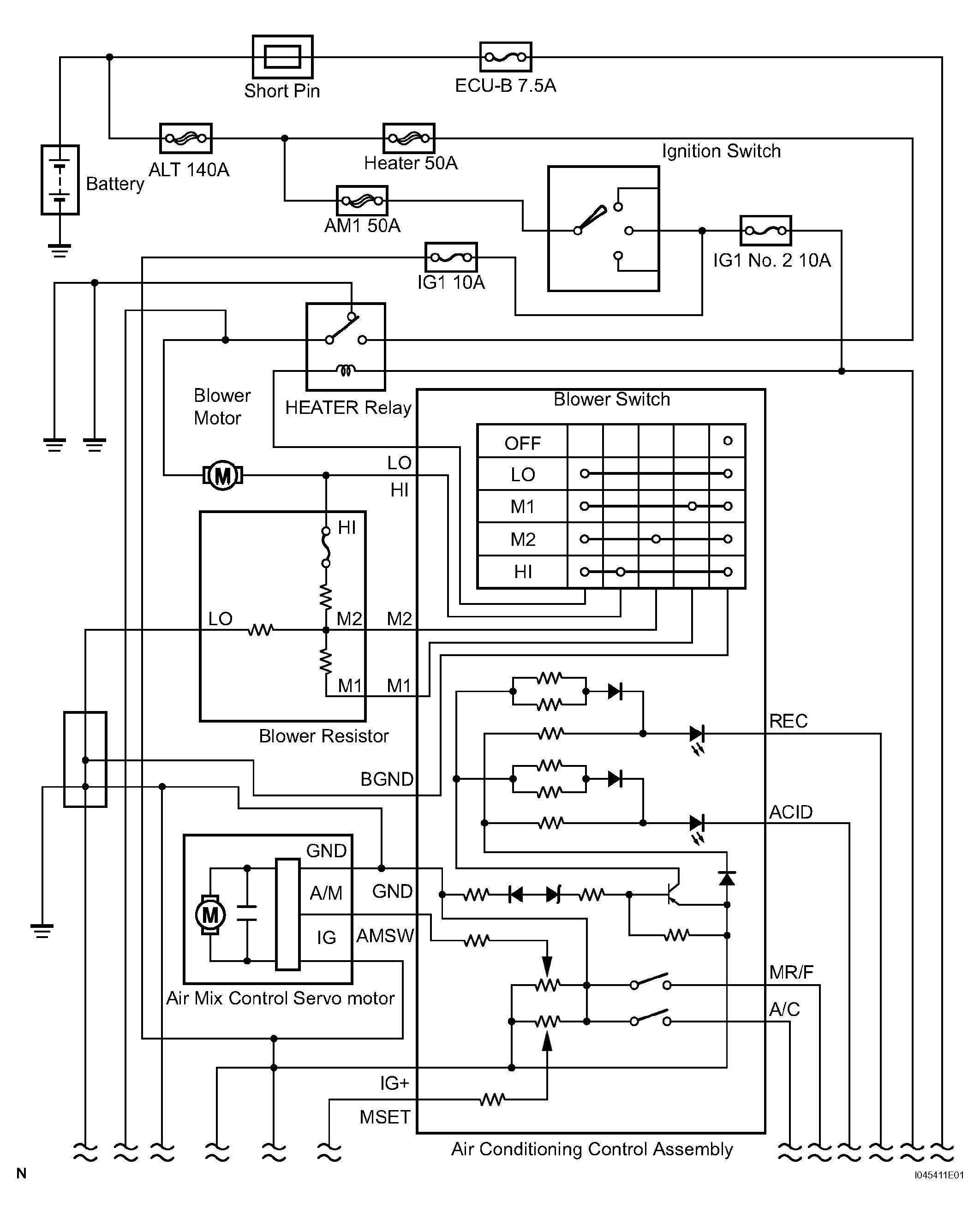

Fig 1: Air Conditioning System Diagram (1 Of 2)
G04411353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

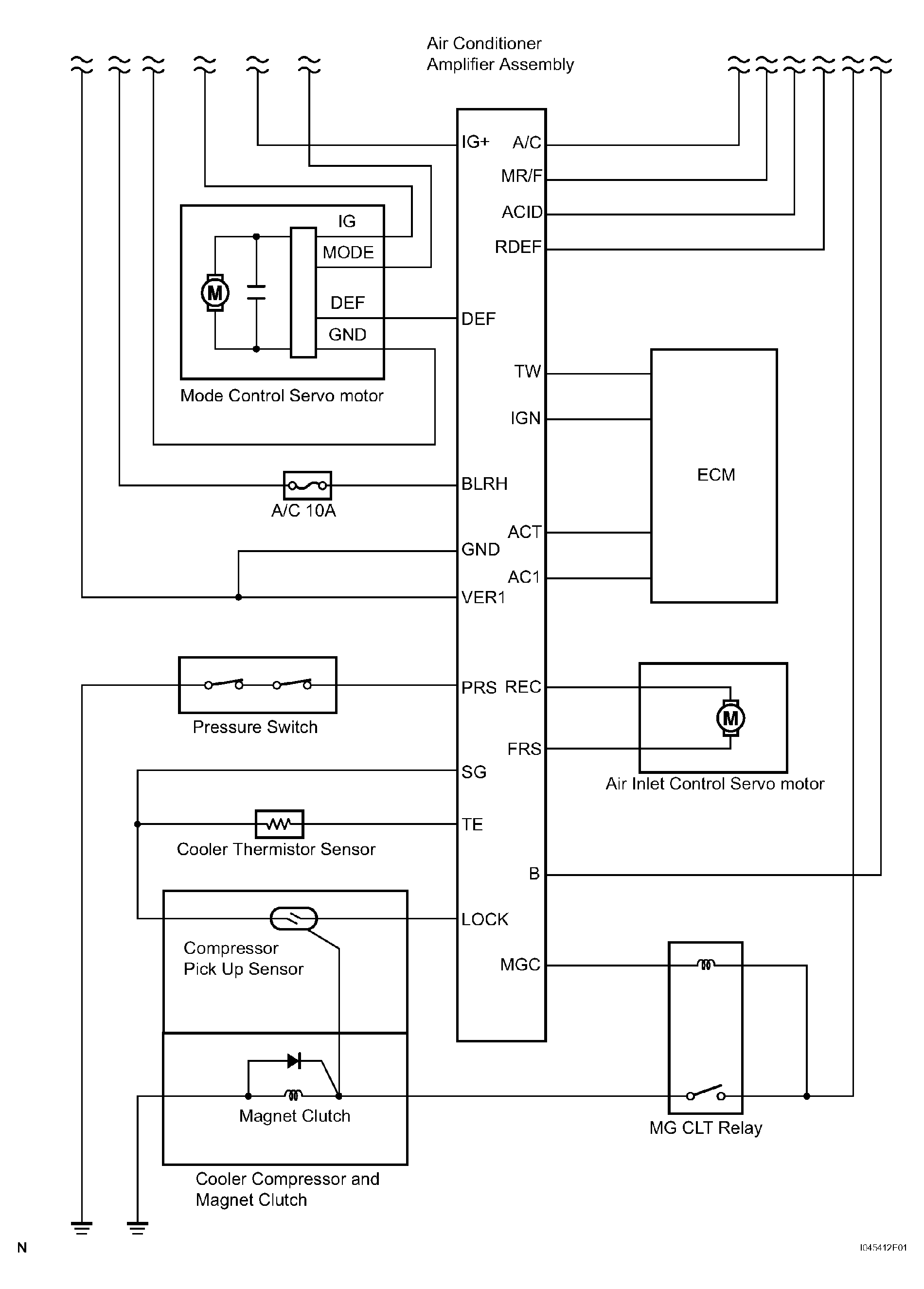

Fig 2: Air Conditioning System Diagram (2 Of 2)
G04411354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
