Air Conditioning Amplifier: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL AIR CONDITIONER AMPLIFIER ASSEMBLY
1. Install the air conditioner amplifier assembly with the nut.
  Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
2. Connect the connector.
INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER RH (See INSTALLATION )
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

NOTE: (See AIR CONDITIONING SYSTEM )

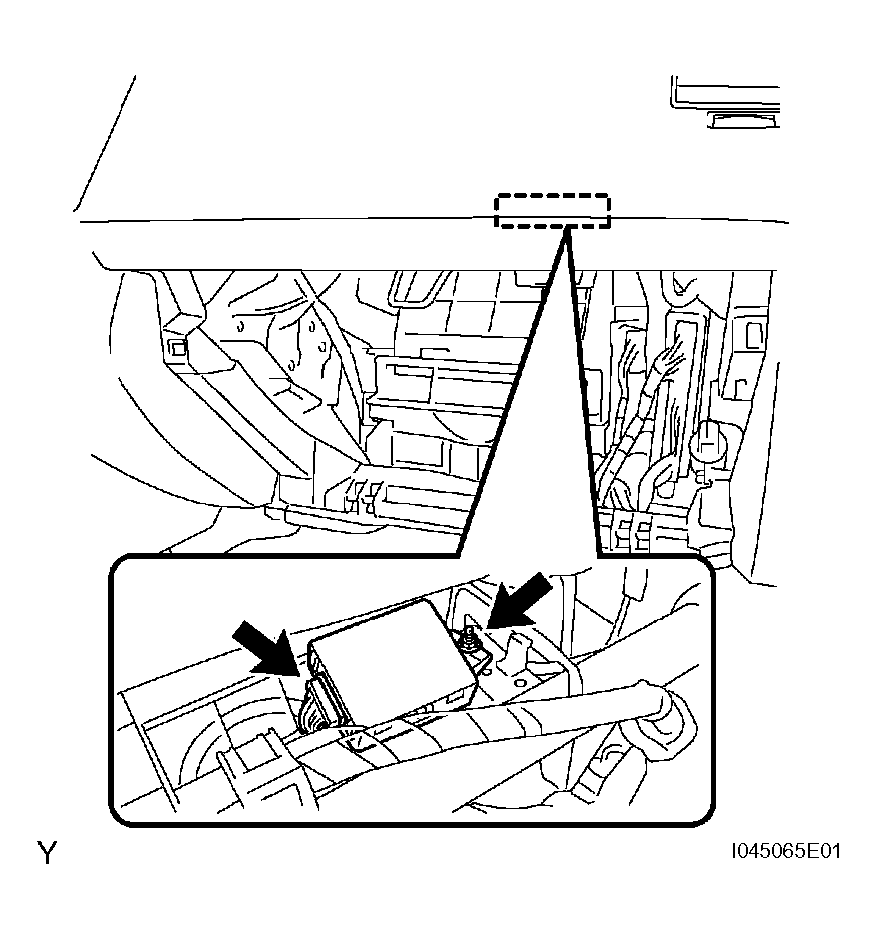

Fig 1: Installing Air Conditioner Amplifier Assembly With Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
