Timing Chain: Components

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

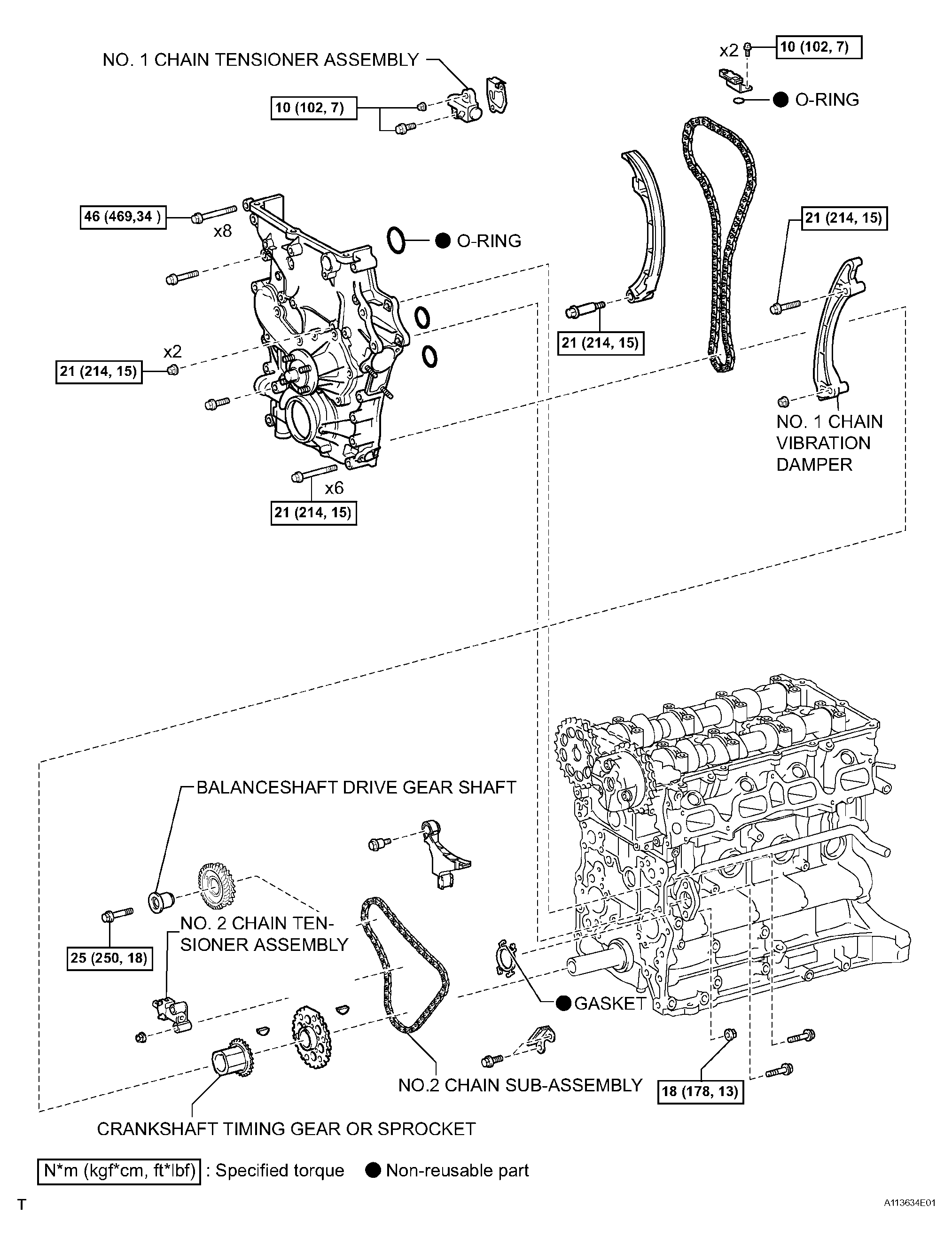

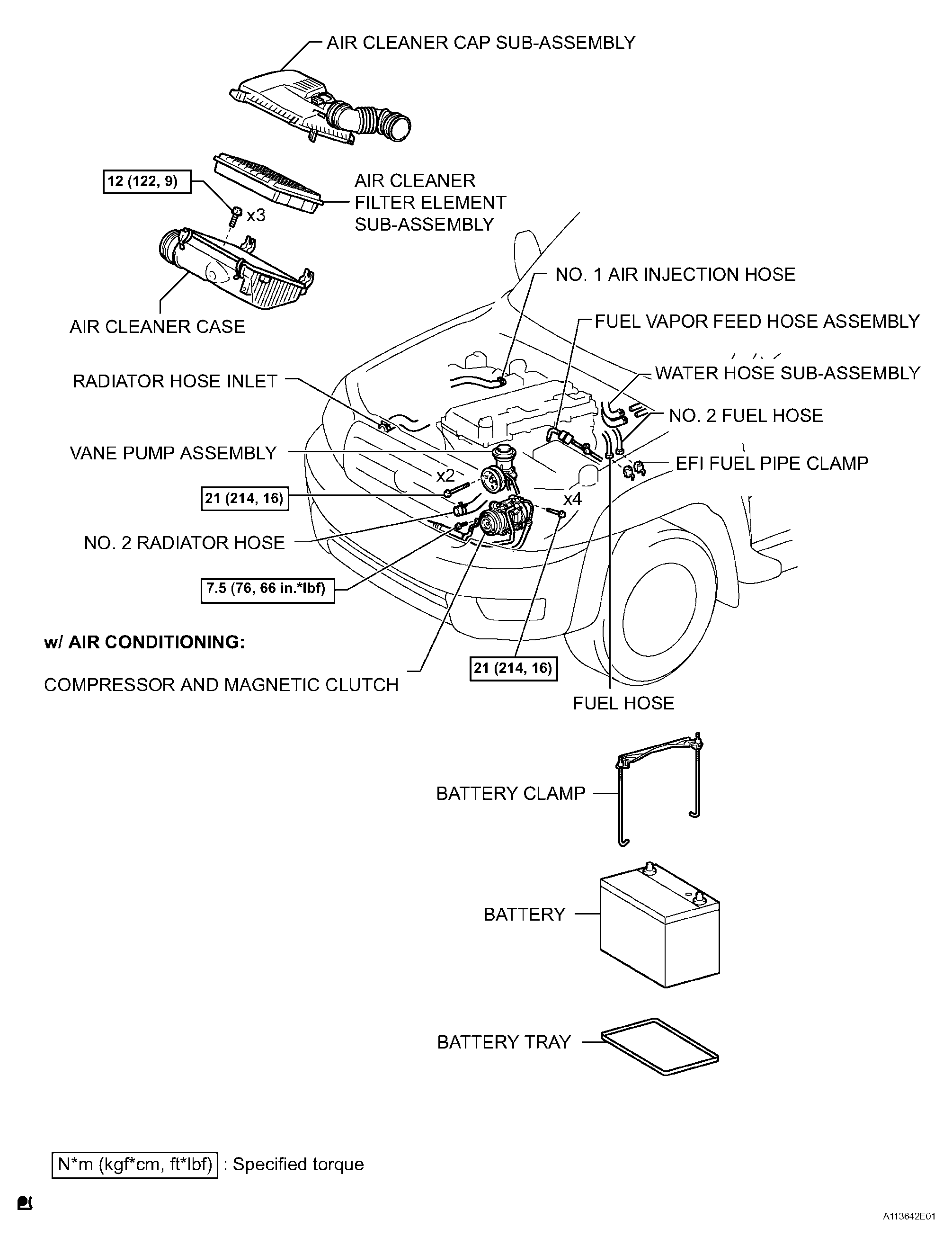

Fig 1: Timing Chain Replacement Components With Torque Specifications (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

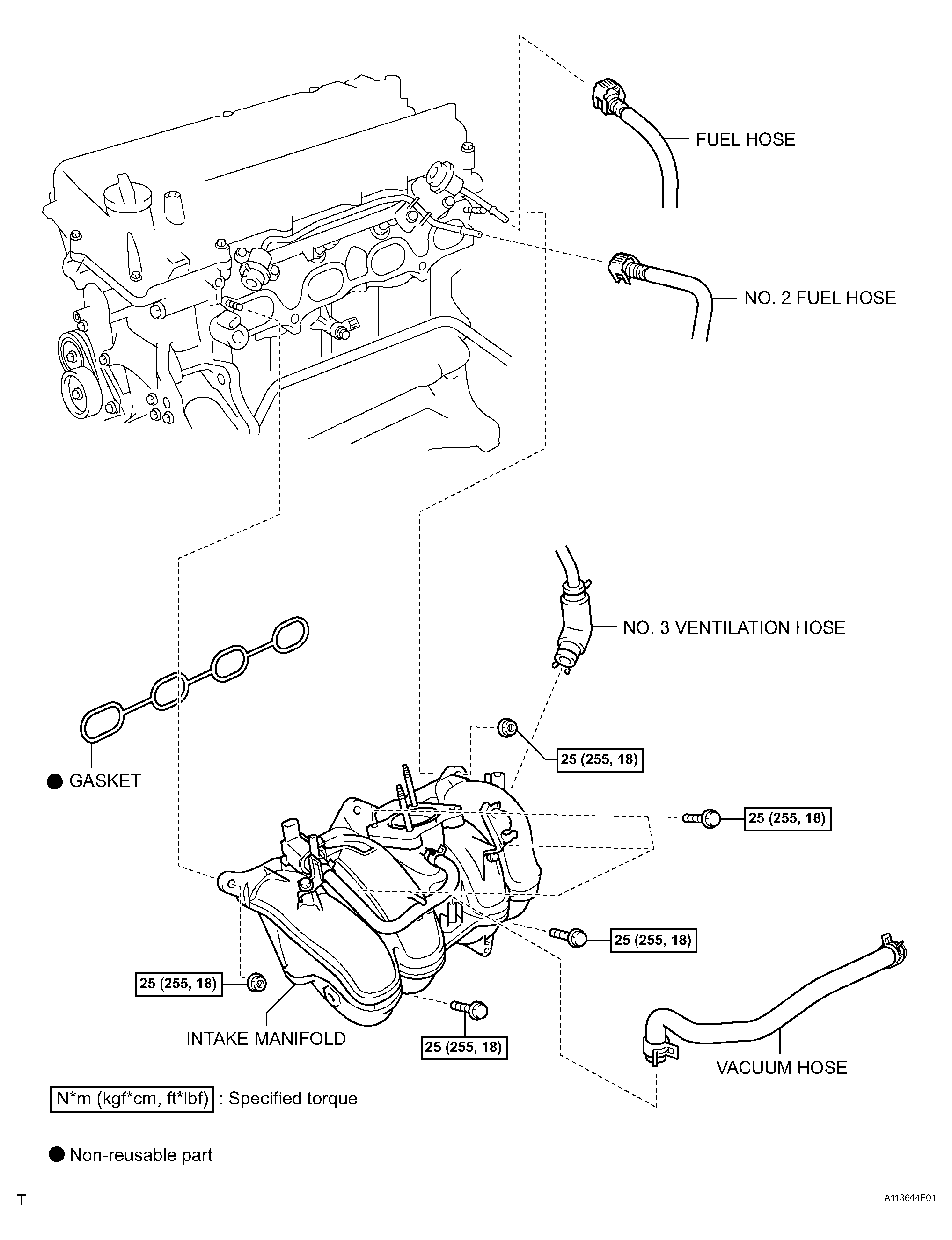

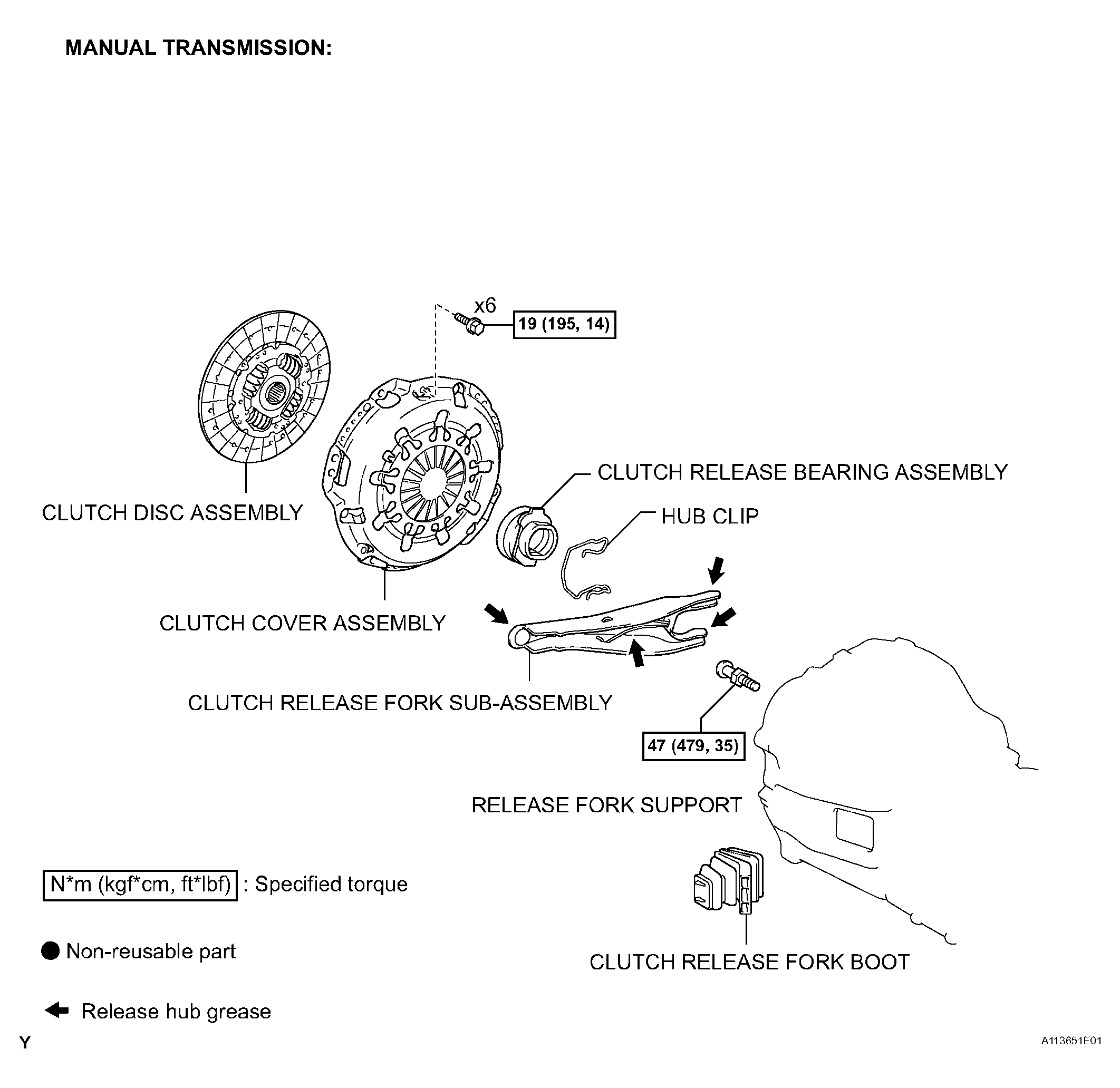

Fig 2: Timing Chain Replacement Components With Torque Specifications (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

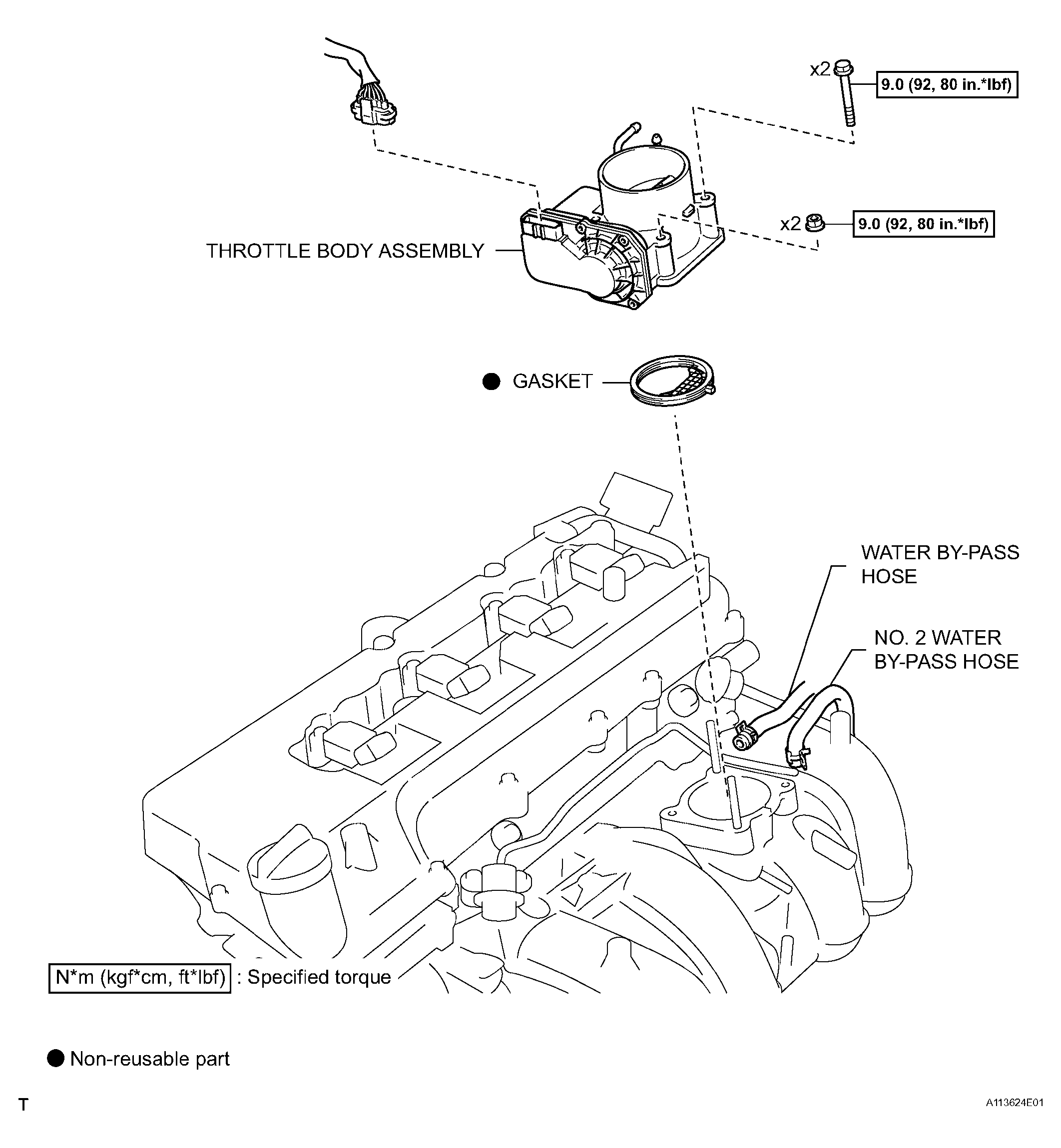

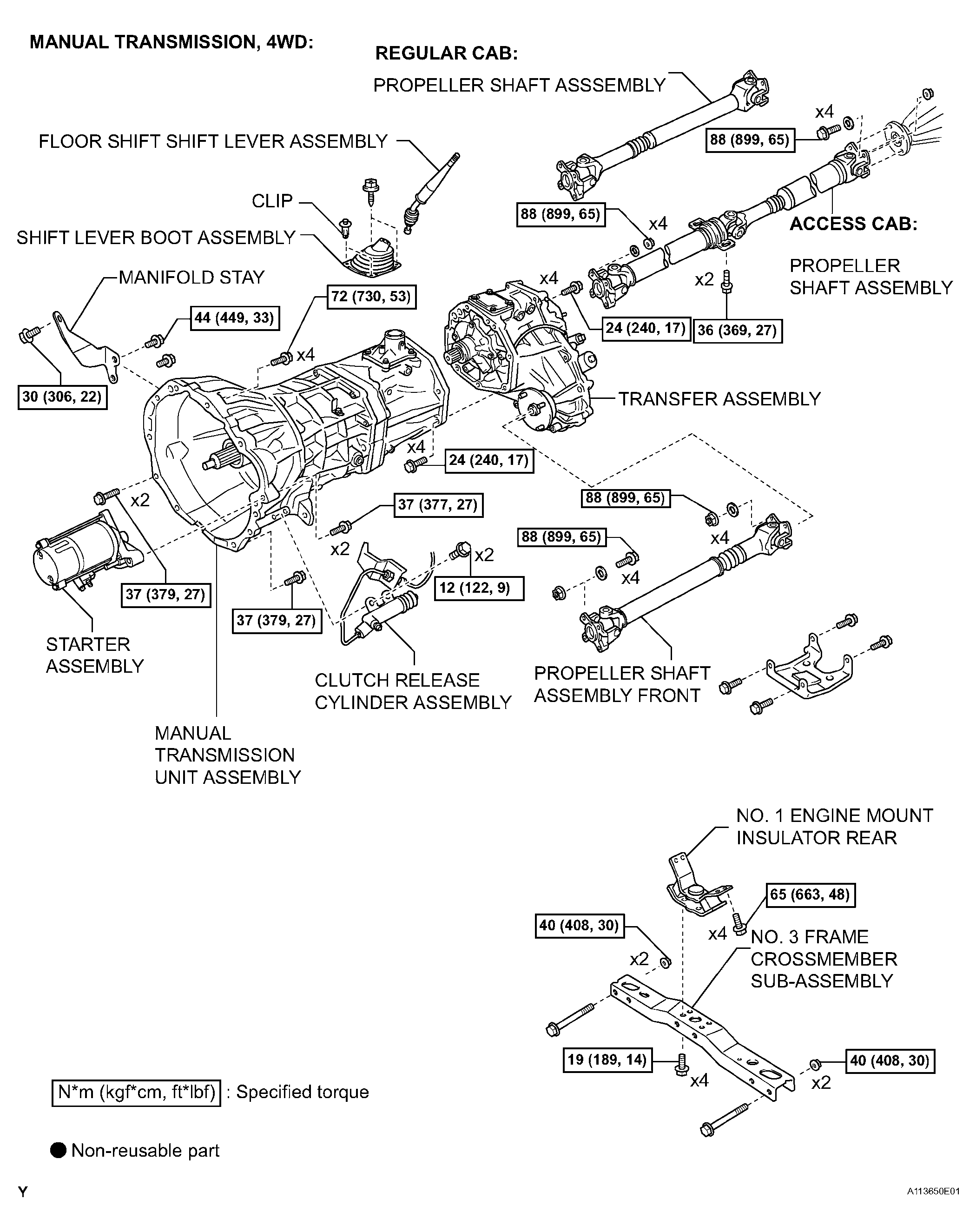

Fig 3: Timing Chain Replacement Components With Torque Specifications (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

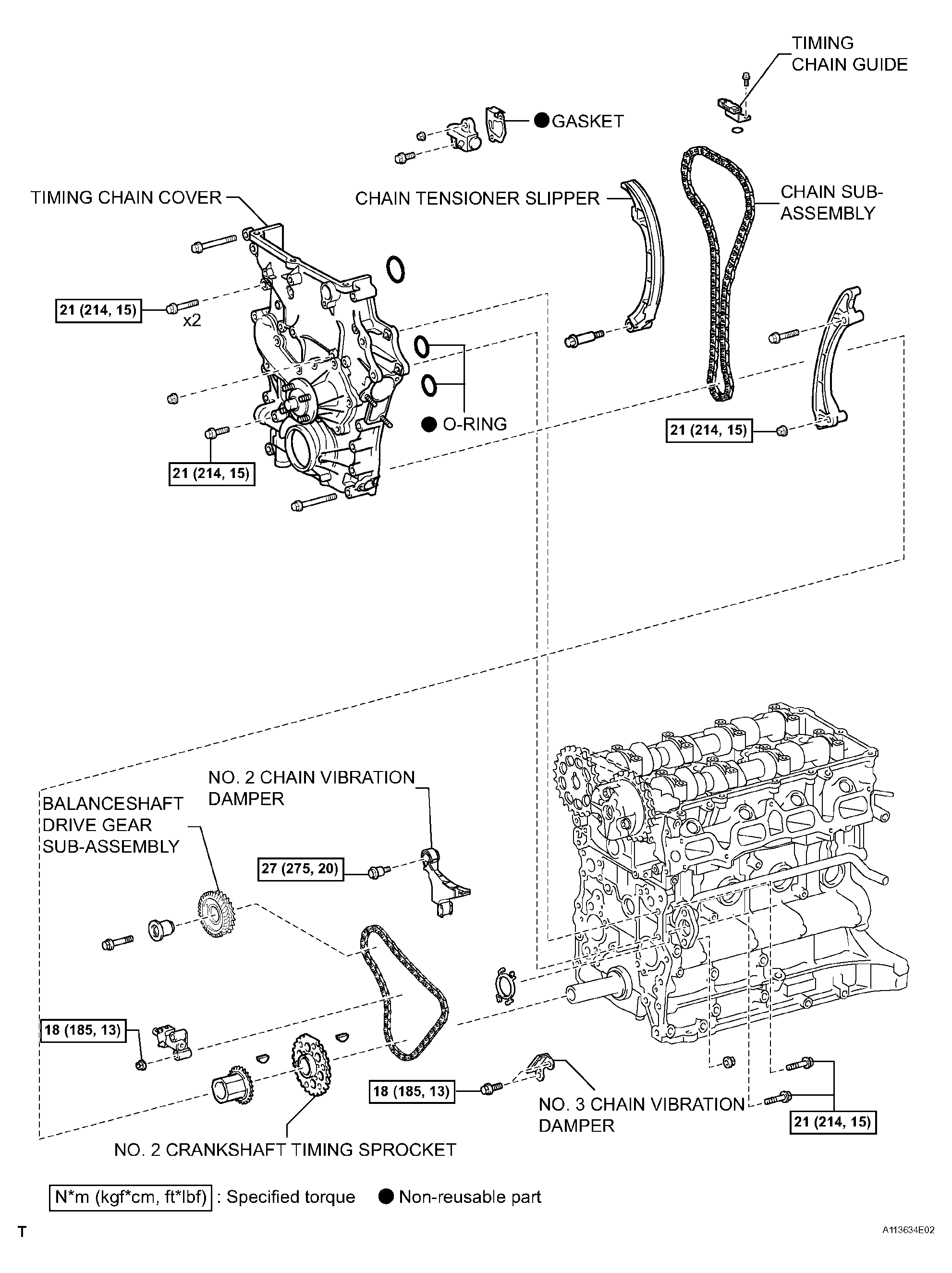

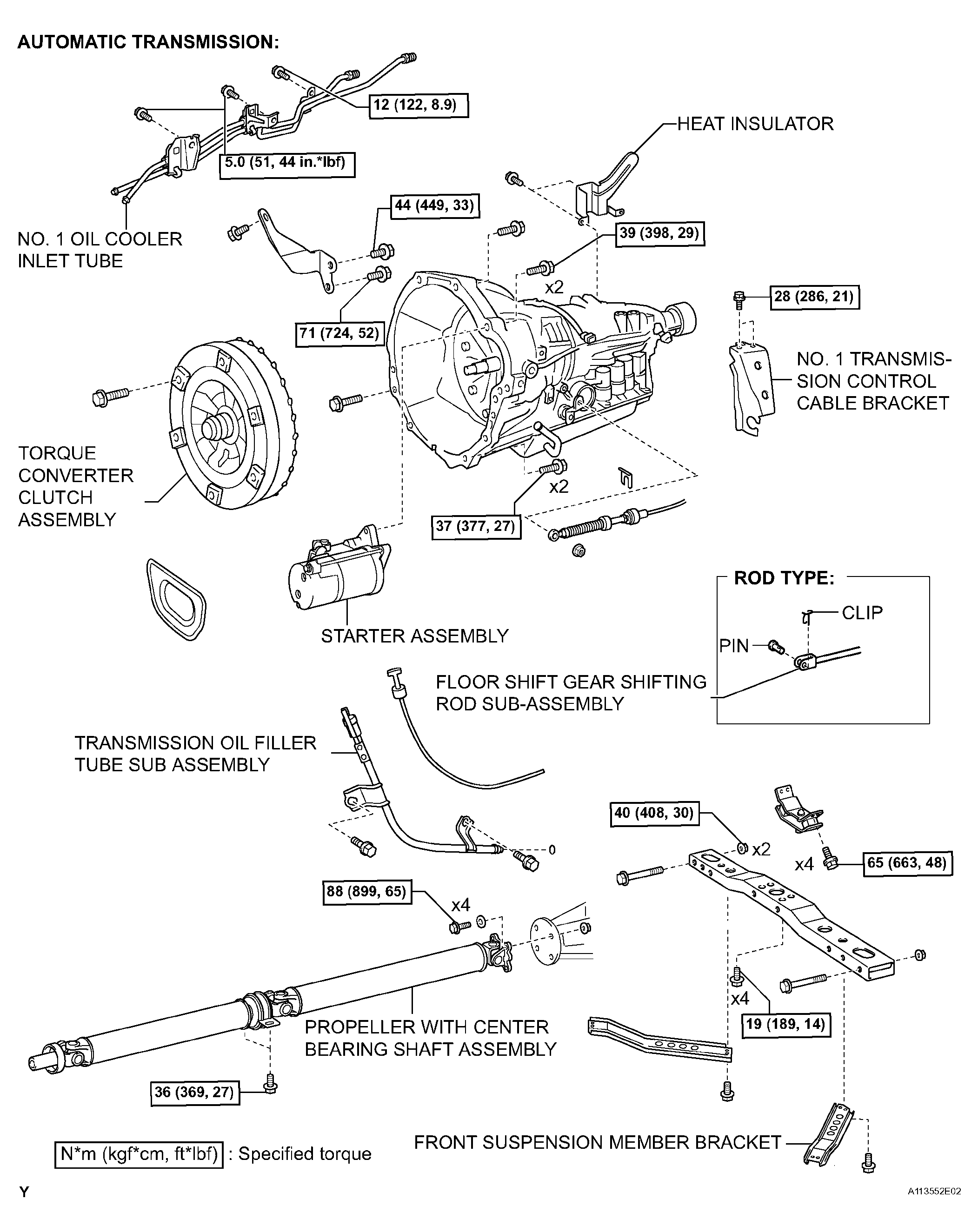

Fig 4: Timing Chain Replacement Components With Torque Specifications (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

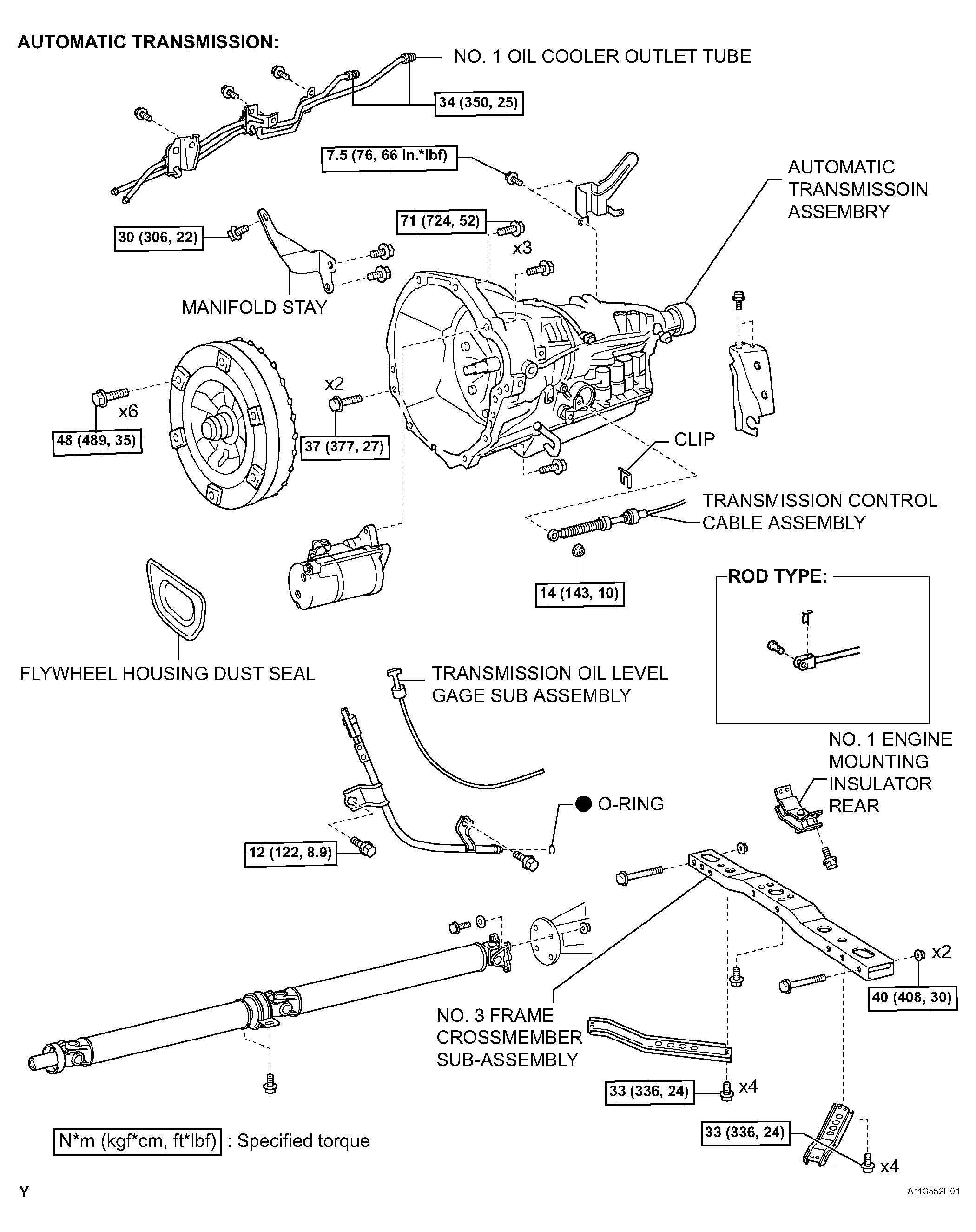

Fig 5: Timing Chain Replacement Components With Torque Specifications (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

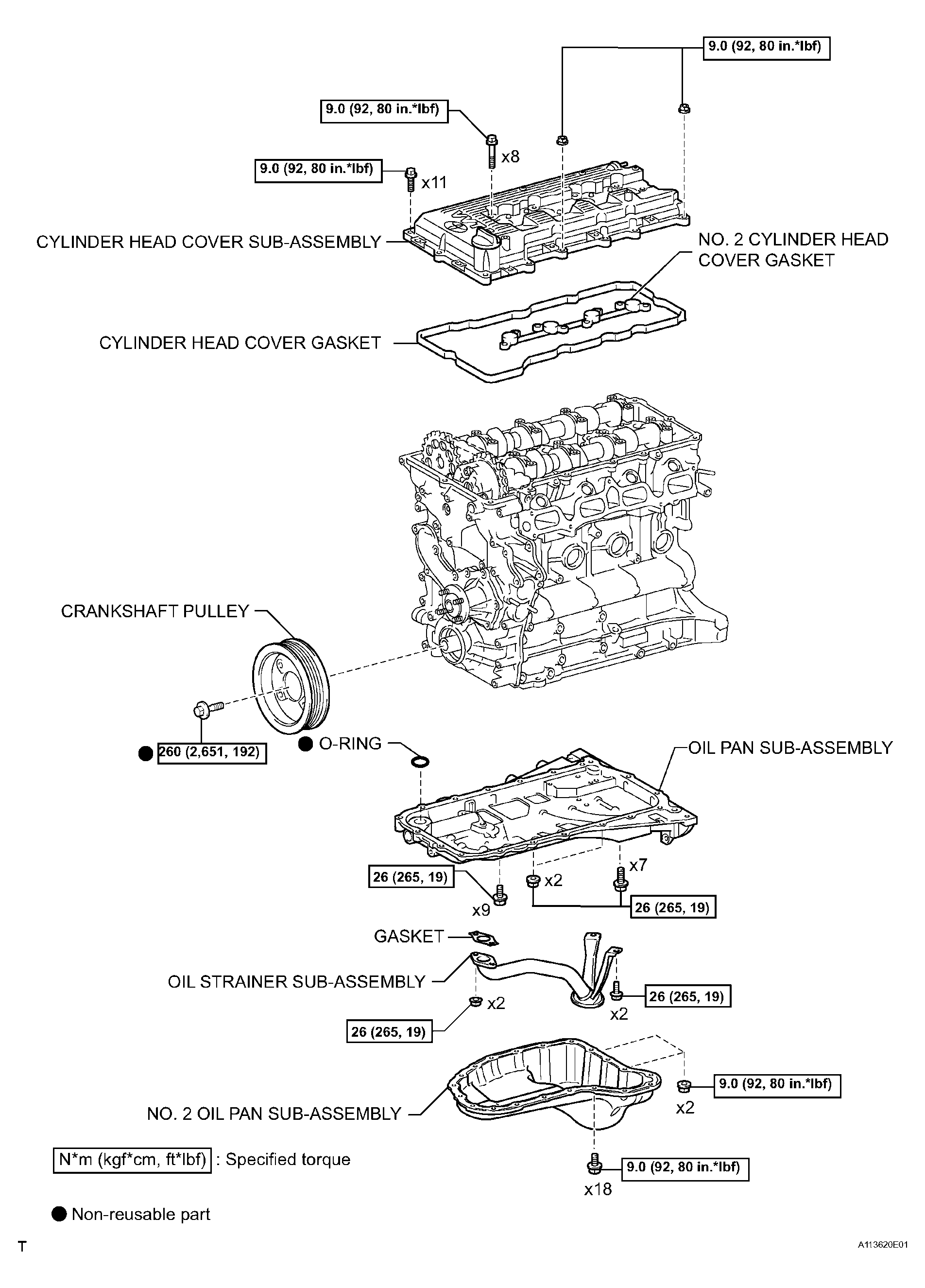

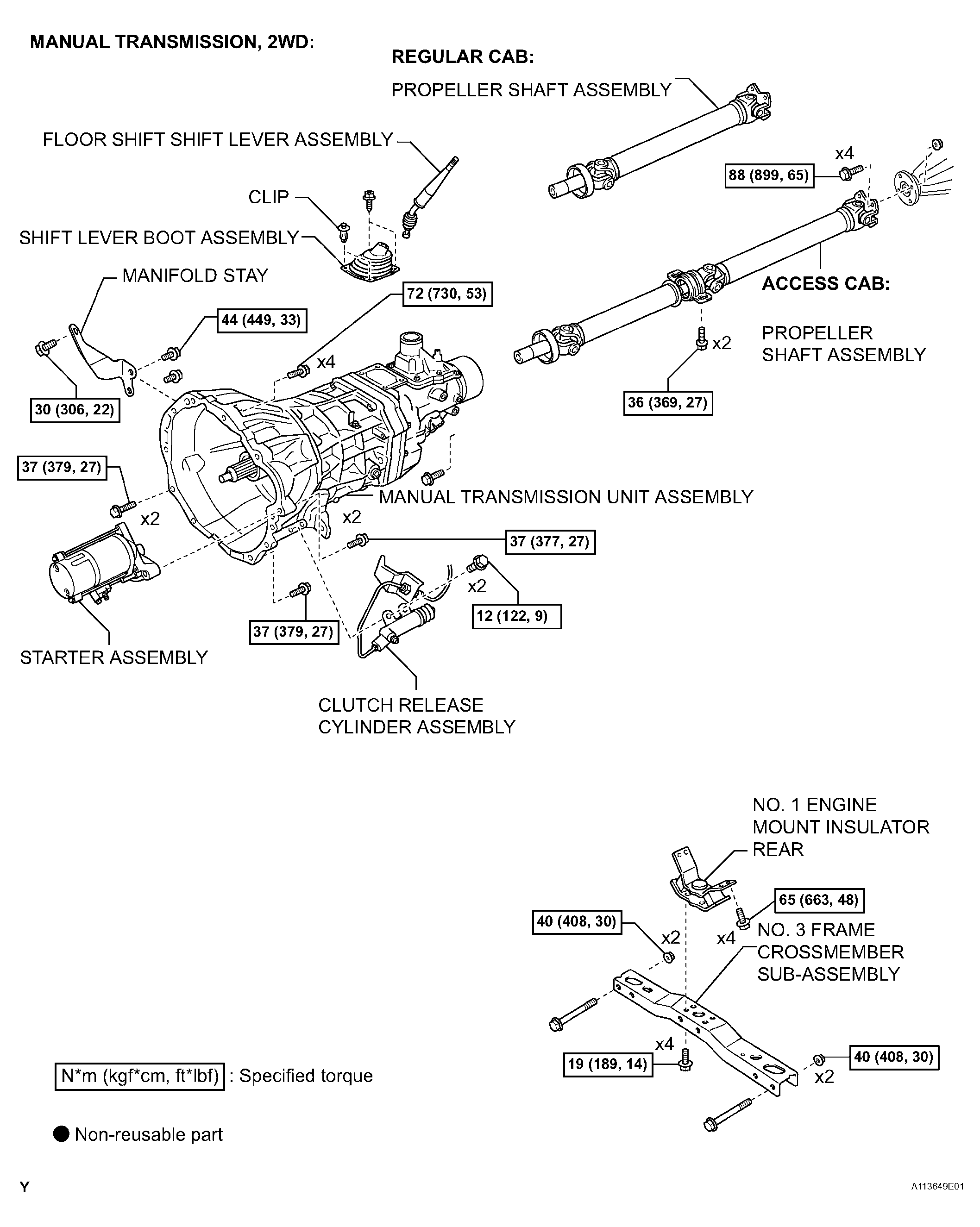

Fig 6: Timing Chain Replacement Components With Torque Specifications (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

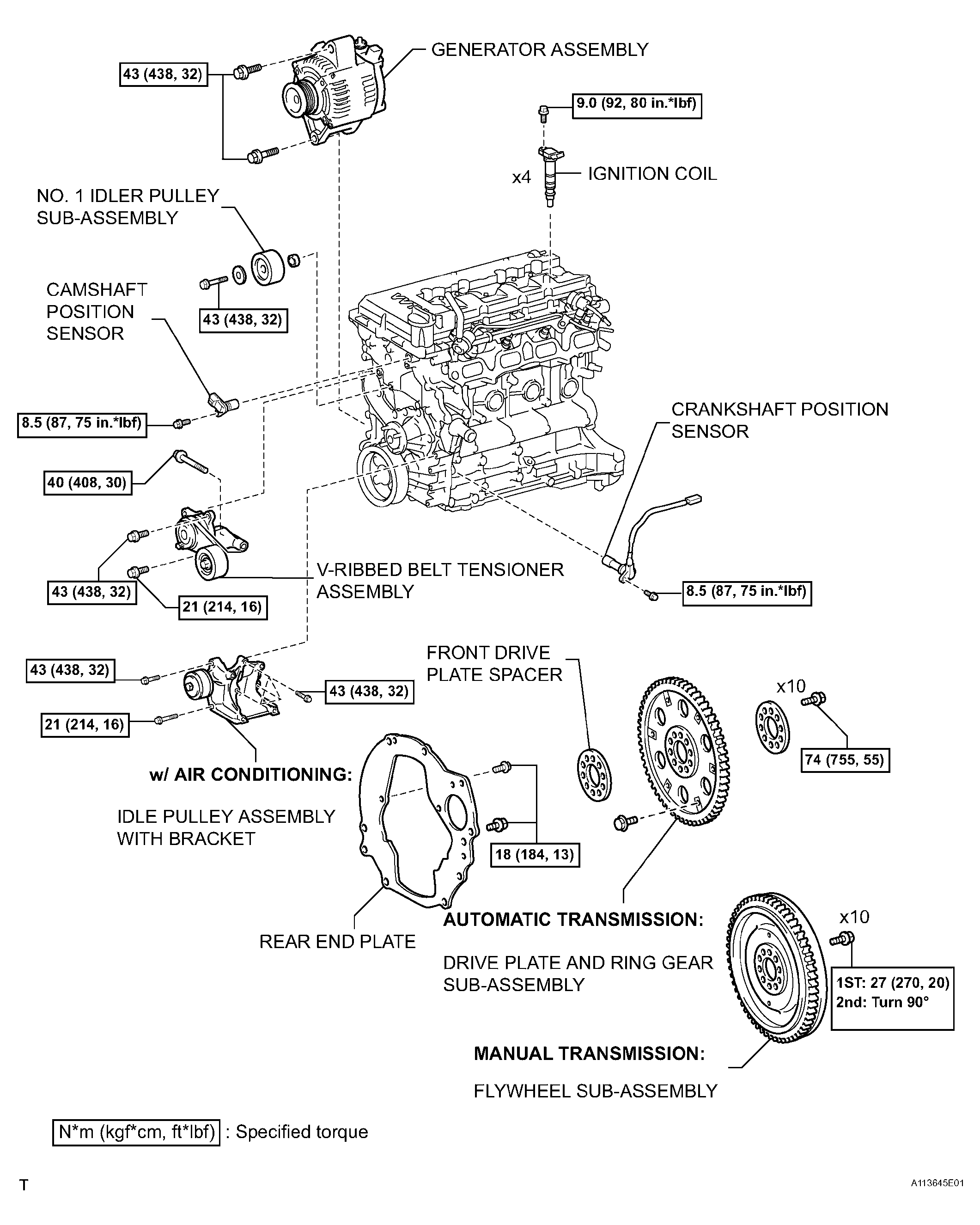

Fig 7: Timing Chain Replacement Components With Torque Specifications (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

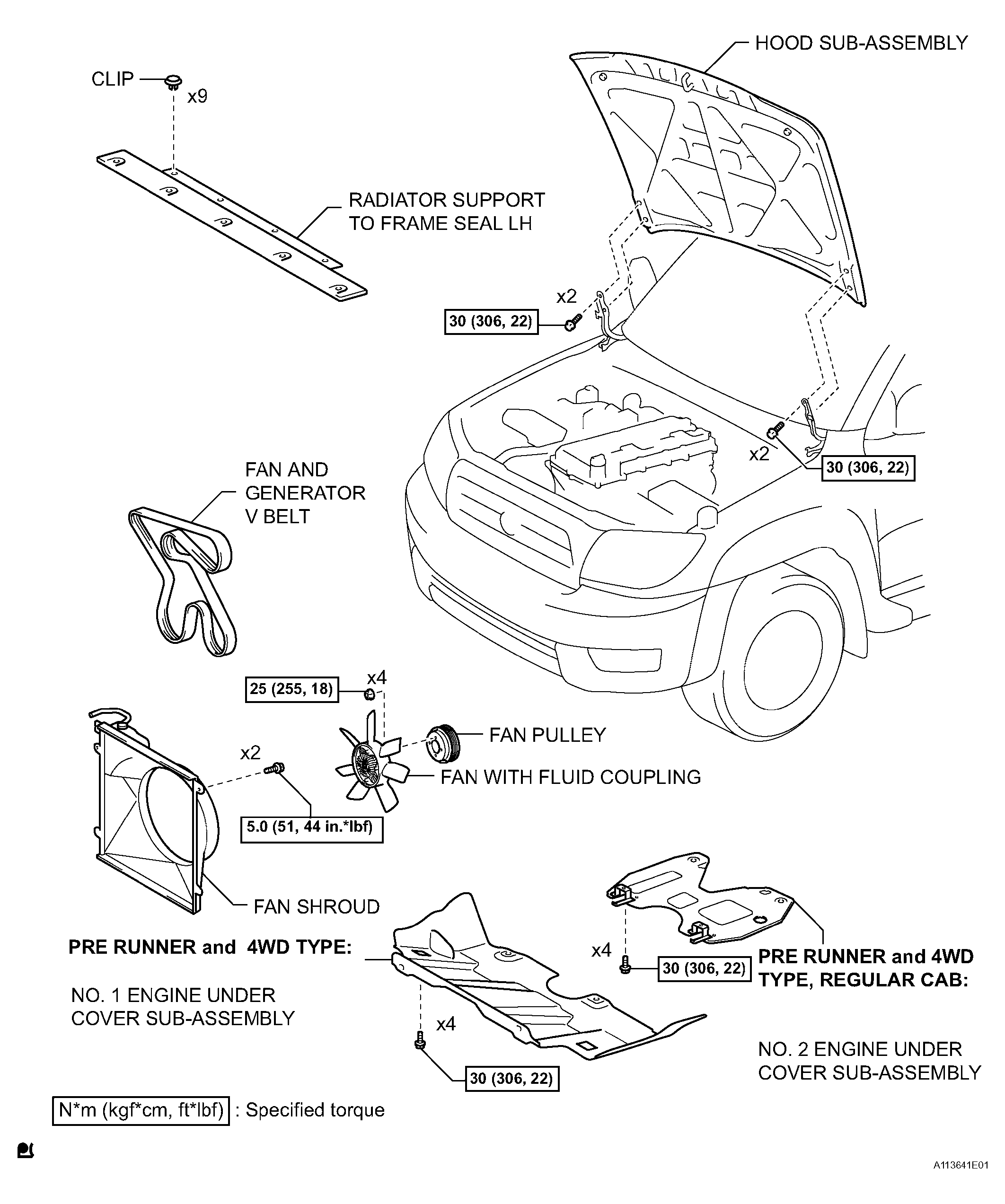

Fig 8: Timing Chain Replacement Components With Torque Specifications (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Timing Chain Replacement Components With Torque Specifications (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Timing Chain Replacement Components With Torque Specifications (10 Of 14)

Fig 11: Timing Chain Replacement Components With Torque Specifications (11 Of 14)

Fig 12: Timing Chain Replacement Components With Torque Specifications (12 Of 14)

Fig 13: Timing Chain Replacement Components With Torque Specifications (13 Of 14)

Fig 14: Timing Chain Replacement Components With Torque Specifications (14 Of 14)
