Parts Location

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

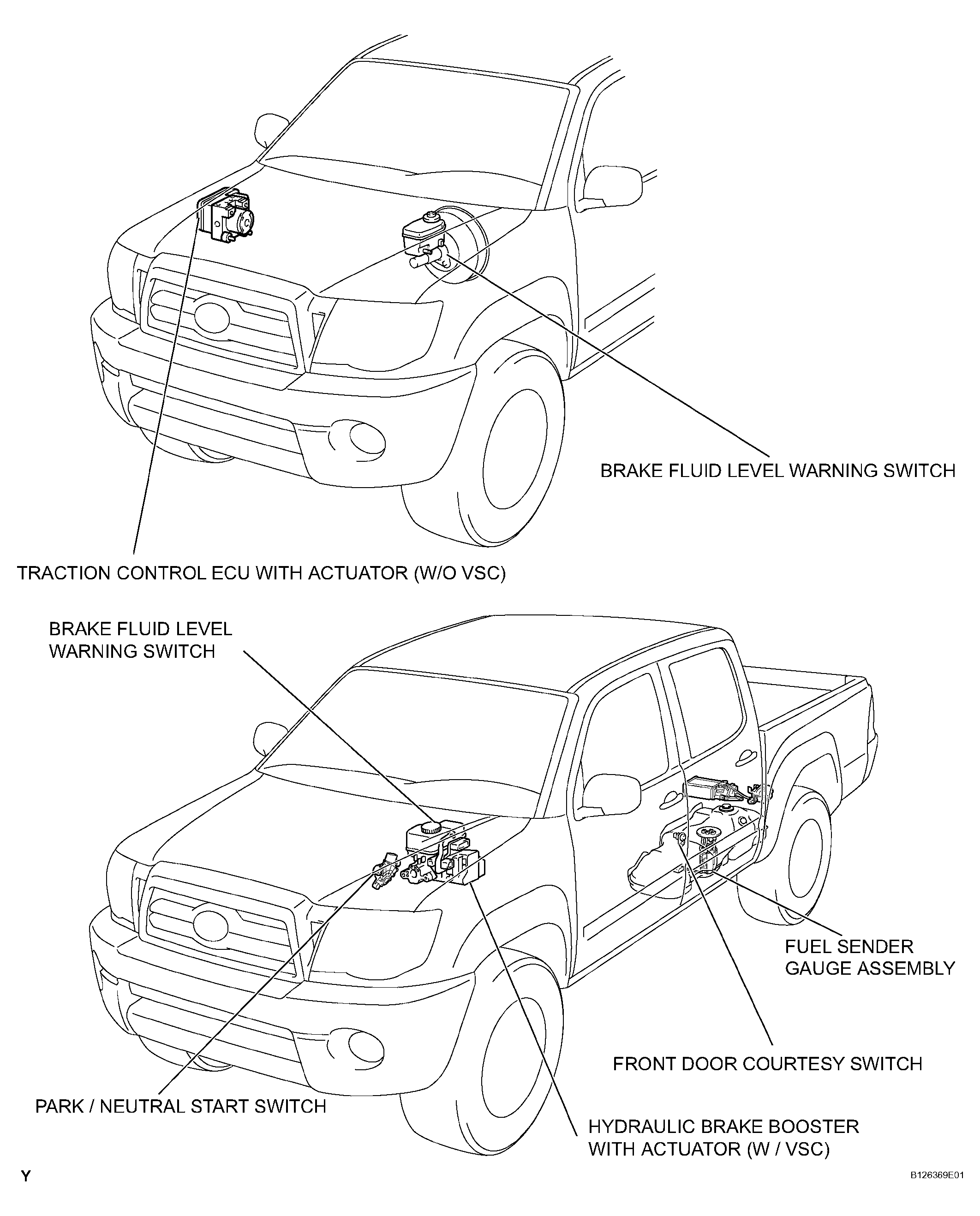

Fig 1: Identifying Meter/Gauge System Part Location (1 Of 4)
G04412621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

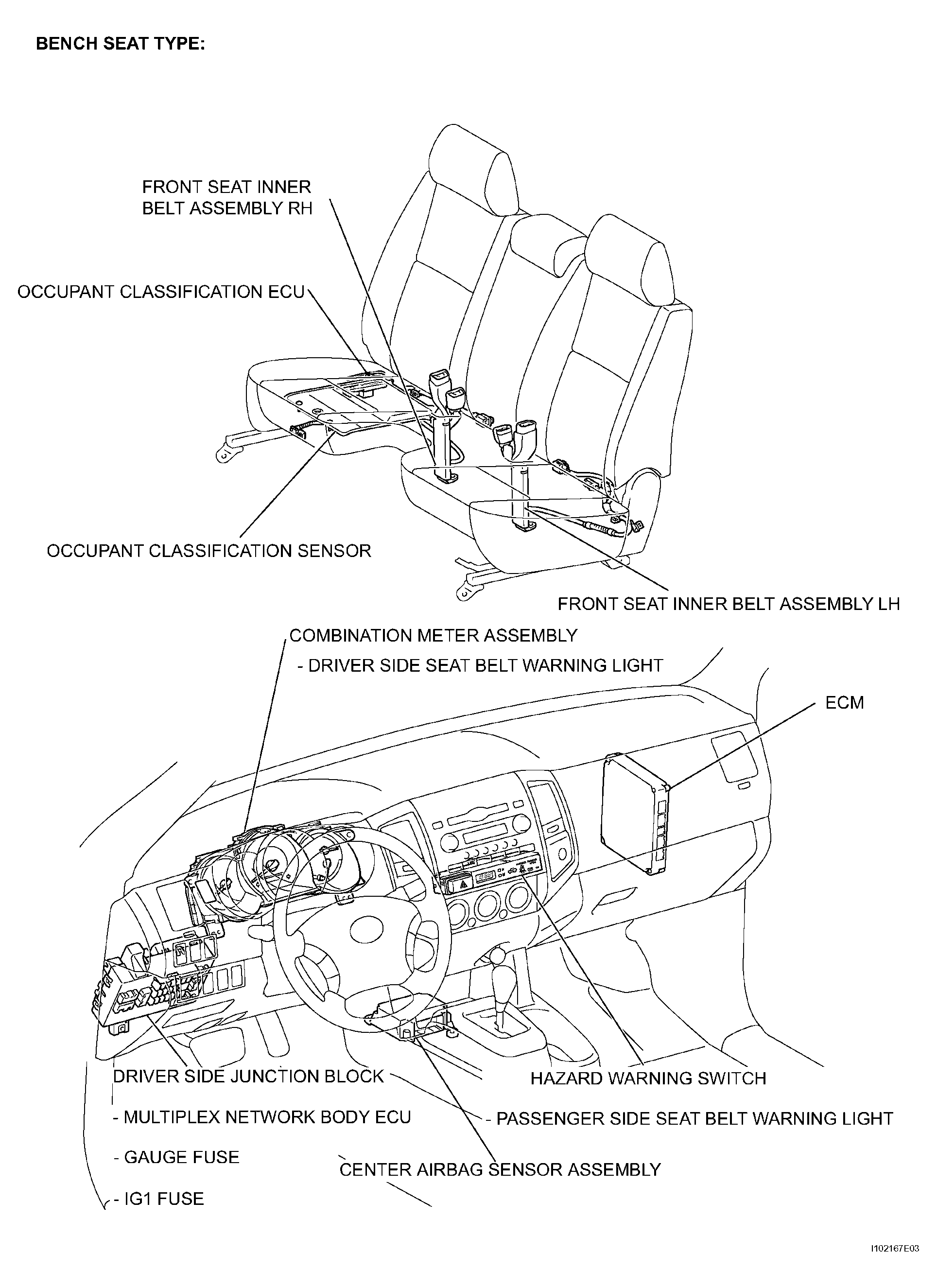

Fig 2: Identifying Meter/Gauge System Part Location (2 Of 4)
G04412622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

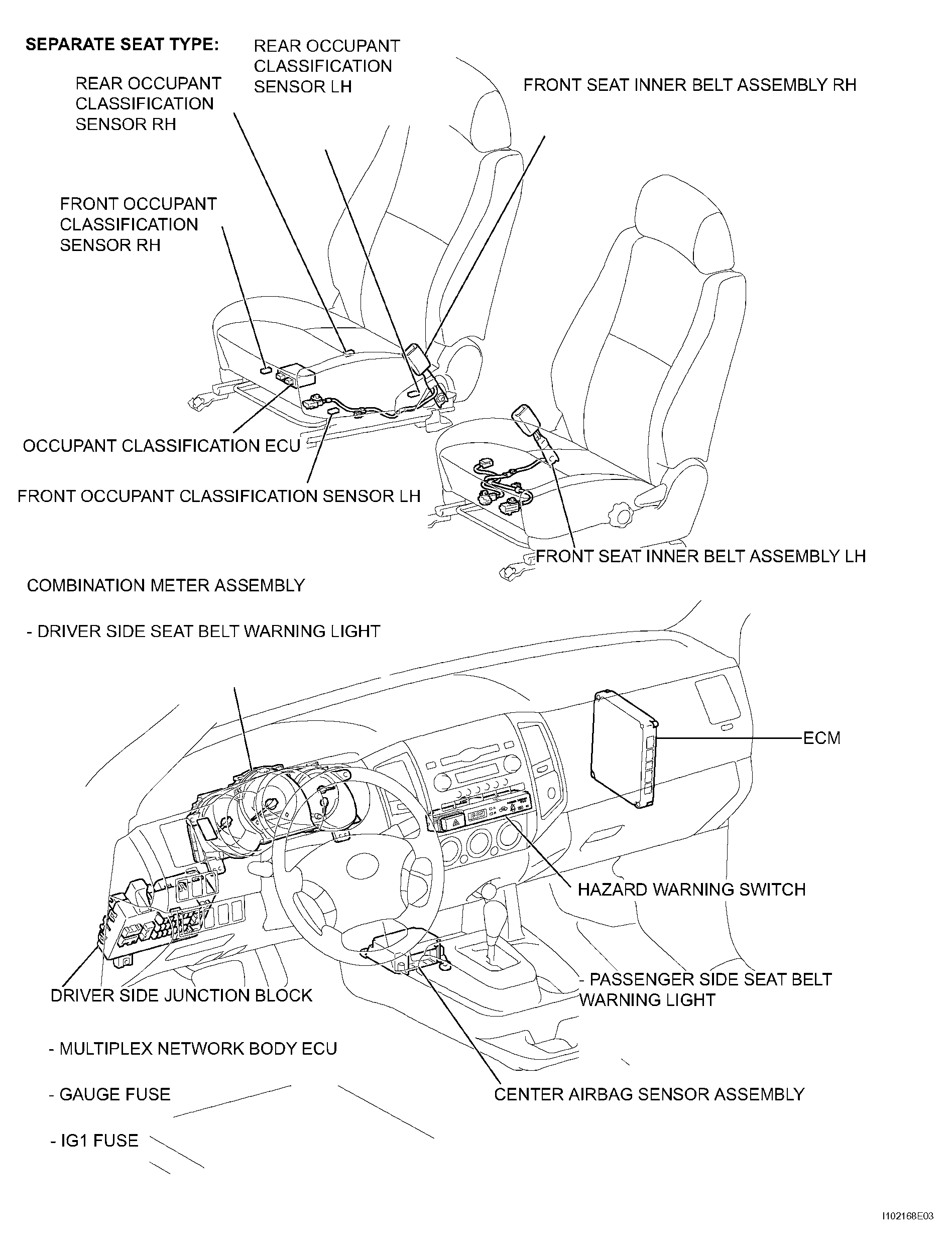

Fig 3: Identifying Meter/Gauge System Part Location (3 Of 4)
G04412623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

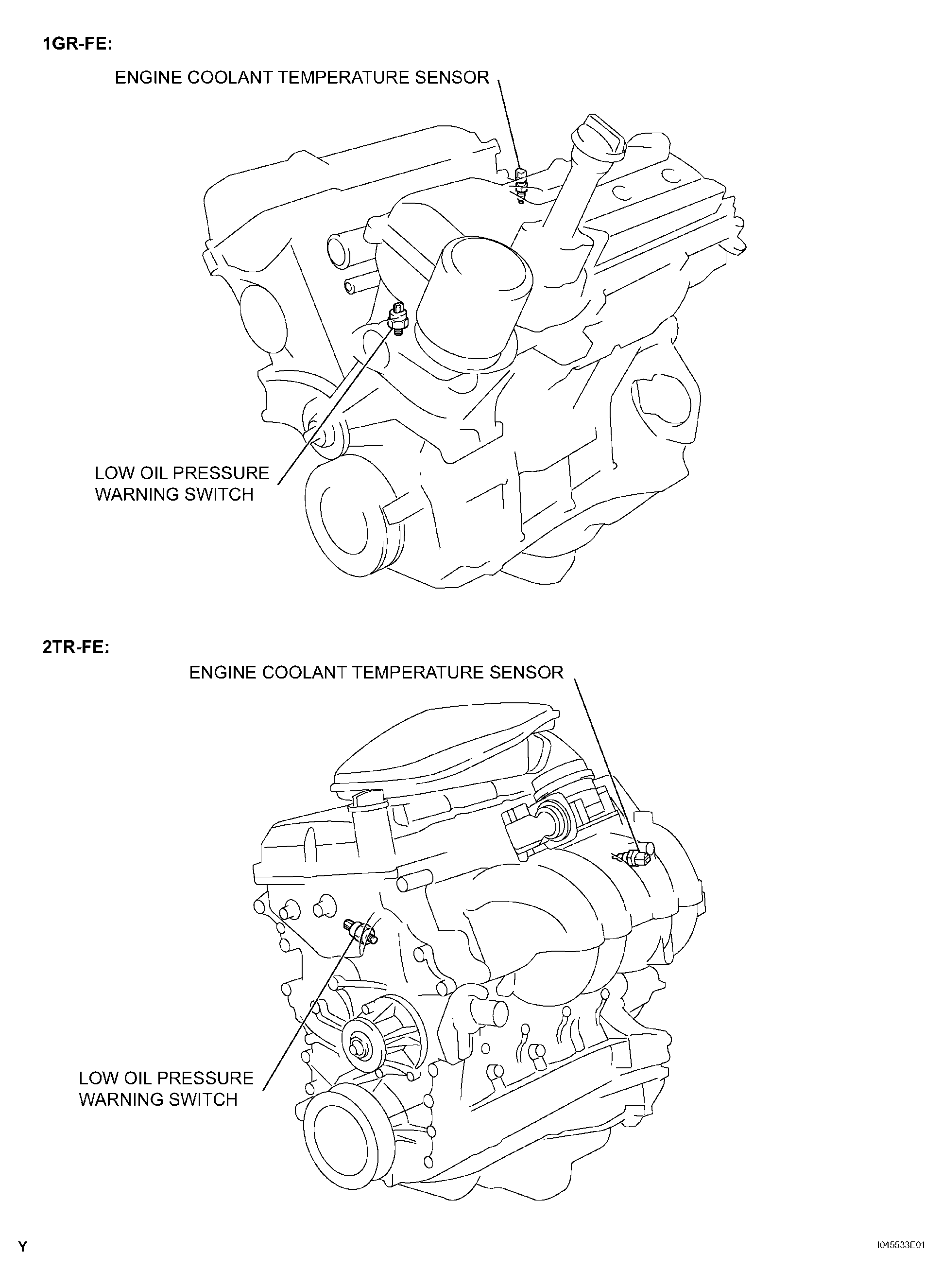

Fig 4: Identifying Meter/Gauge System Part Location (4 Of 4)
G04412624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
