Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT SPEEDOMETER
    1. Check the operation.
      1. Using a speedometer tester, inspect the speedometer for acceptable indication error and check the operation of the odometer.

        Reference: km/h (Canada)

        SPEEDOMETER INDICATION REFERENCE TABLE (CANADA)

        Standard Indication Acceptable Range
        20 km/h 17.5 to 21.5 km/h
        40 km/h 38.0 to 42.0 km/h
        60 km/h 58.0 to 63.0 km/h
        80 km/h 78.0 to 84.0 km/h
        100 km/h 98.5 to 104.5 km/h
        120 km/h 119.0 to 125.0 km/h
        140 km/h 139.0 to 146.0 km/h
        160 km/h 159.0 to 167.0 km/h
        180 km/h 179.0 to 188.0 km/h
        200 km/h 199.0 to 209.0 km/h
        220 km/h 219.0 to 230.0 km/h
        240 km/h 239.0 to 251.0 km/h

        Reference: mph (U.S.A.)

        SPEEDOMETER INDICATION REFERENCE TABLE (U.S.A.)

        Standard Indication Acceptable Range
        20 mph 20.0 to 23.0 mph
        40 mph 40.0 to 43.5 mph
        60 mph 60.0 to 64.0 mph
        80 mph 80.0 to 84.5 mph
        100 mph 100.0 to 105.0 mph
        120 mph 120.0 to 125.5 mph
        140 mph 140.0 to 146.0 mph
        NOTE: Tire wear and excessively high or low tire pressure affect indication errors.
      2. Check the deflection width of the speedometer indicator.

        Reference: Below 0.5 km/h (0.3 mph)

  2. INSPECT OUTPUT OF VEHICLE SPEED
    1. Shift the transmission gear selector lever to the neutral position.
    2. Jack up the vehicle.
    3. Turn the ignition switch to ON.
    4. Check the voltage while the wheel is turning slowly.

      Standard

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connections Specified Conditions
      C9-6 - Body ground Voltage generated intermittently

      HINT:

      The output voltage should fluctuate up and down as shown in Fig 1 when the wheel is turning slowly.

  3. INSPECT TACHOMETER
    1. Check the operation.
      1. Connect the tune-up test tachometer and start the engine.

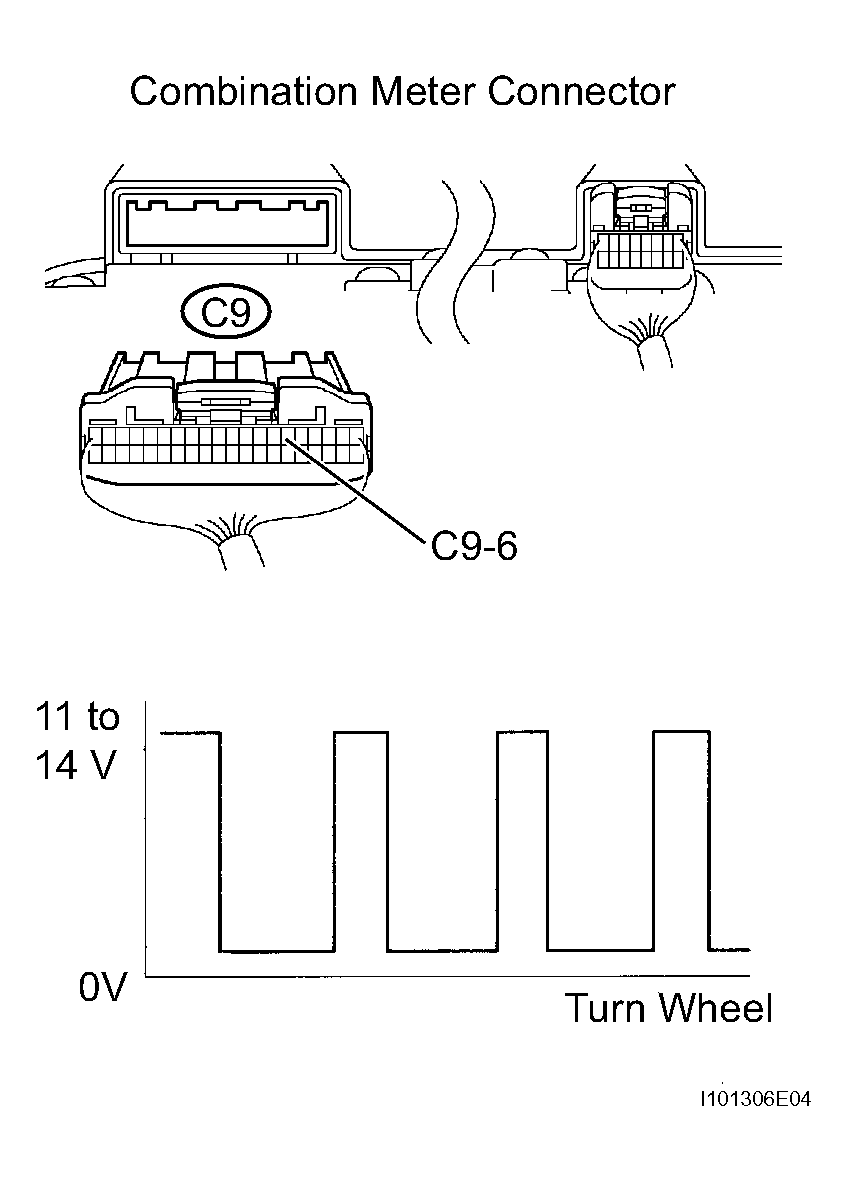

        Fig 1: Discomfiting Combination Meter C9 Connector Terminals
        G04412635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Reversing the connection of the tachometer will damage the transistors and the insides of the diodes.
        • When removing or installing the tachometer, be careful not to drop or strike it.
      2. Compare the result of the test with the standard indication.

        DC 13.5 V, at 25°C (77°F)

        Reference

        STANDARD INDICATION REFERENCE TABLE

        Standard Indication (USA) (RPM) Standard Indication (CANADA) (r/min) 1GR-FE: Acceptable Range (USA) (RPM) Acceptable Range (CANADA) (r/min) Data in ( ) are for reference 2TR-FE Acceptable Range (USA) (RPM) Acceptable Range (CANADA) (r/min) Data in ( ) are for reference
        700 630 to 770 630 to 770
        1,000 (900 to 1,100) (900 to 1,100)
        2,000 (1,850 to 2,150) (1,850 to 2,150)
        3,000 2,800 to 3,200 2,800 to 3,200
        4,000 (3,800 to 4,200) (3,800 to 4,200)
        5,000 4,800 to 5,100 4,800 to 5,200
        6,000 (5,750 to 6,250) (5,750 to 6,250)
  4. INSPECT FUEL RECEIVER GAUGE
    1. Disconnect the fuel sender gauge connector.
    2. Turn the ignition switch to the ON position, then check the position of the receiver gauge needle.

      OK: Needle position is on (EMPTY).

    3. Connect terminals 2 and 3 on the wire harness side connector of the fuel sender gauge.
    4. Turn the ignition switch to the ON position, then check the position of the receiver gauge needle.

      OK: Needle position is on (FULL).

    5. Reconnect the fuel sender gauge connector.

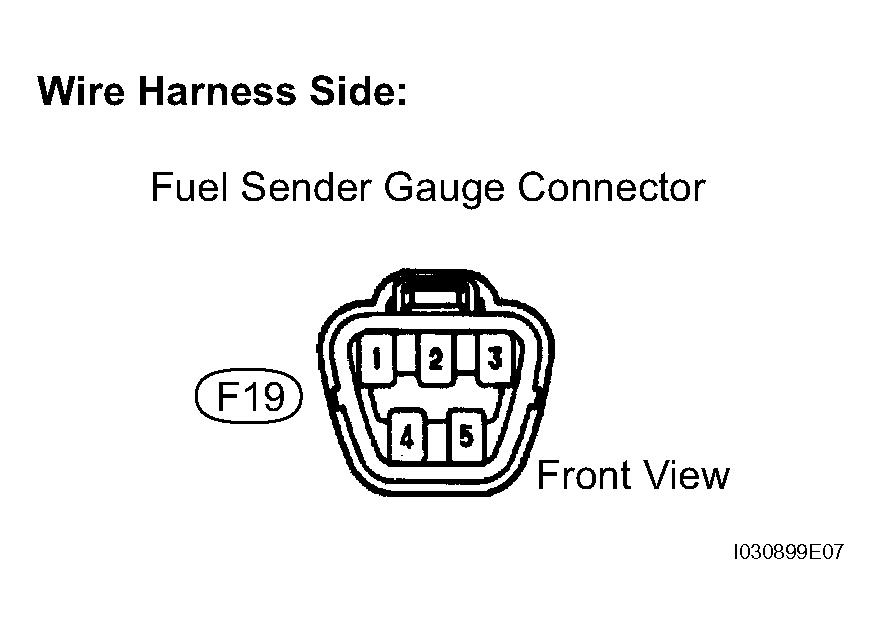

      Fig 2: Identifying Fuel Sender Gauge F19 Connector Terminals
      G04412636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT FUEL LEVEL WARNING LIGHT
    1. Disconnect the fuel sender gauge connector.
    2. Turn the ignition switch to the ON position, then check that the fuel level needle indicates EMPTY and the fuel level warning light comes on.

      OK: Fuel level warning light comes on.

    3. Reconnect the fuel sender gauge connector.
  6. INSPECT LOW ENGINE OIL PRESSURE WARNING LIGHT
    1. Disconnect the low oil pressure switch connector.
    2. Turn the ignition switch to the ON position.
    3. Ground the terminal of the wire harness side connector, then check the low oil pressure warning light.

      OK: Low oil pressure warning light comes on.

    4. Reconnect the low oil pressure switch connector.
  7. INSPECT BRAKE WARNING LIGHT
    1. Inspect the parking brake warning light.
      1. Disconnect the parking brake switch connector.
      2. Turn the ignition switch to the ON position.
      3. Ground the terminal of the wire harness side connector, then check the parking brake warning light.

        OK: Brake warning light comes on.

      4. Reconnect the parking brake switch connector.
    2. Inspect the brake fluid level warning light.
      1. Disconnect the brake fluid level warning switch connector.
      2. Turn the ignition switch to the ON position.
      3. Connect a terminal to the other terminal of the wire harness side connector, then check the brake fluid level warning switch.

        OK: Brake warning light comes on.

      4. Reconnect the brake fluid level warning switch connector.
  8. INSPECT BRAKE FLUID LEVEL WARNING SWITCH
    1. Remove the reservoir tank cap and strainer.
    2. Disconnect the brake fluid level warning switch connector.
    3. Measure the resistance between the terminals.

      Standard Resistance: Float up (switch off): 10 k or higher

    4. Use a syphon or a similar tool, to take fluid out of the reservoir tank.
    5. Measure the resistance between the terminals.

      Standard Resistance: Float down (switch on): Below 1

    6. Pour the fluid back in the reservoir tank.
    7. Reconnect the brake fluid level warning switch connector.
    8. Reinstall the reservoir tank cap and strainer.
  9. INSPECT WASHER FLUID LEVEL WARNING SWITCH
    1. Disconnect the washer level warning switch connector.
    2. Turn the ignition switch to the ON position.
    3. Ground the terminal of the wire harness side connector, then check the washer level warning light.

      OK: Washer level warning light comes on.

    4. Reconnect the washer level warning switch connector.
  10. MAINTENANCE LIQUID RESETTING PROCEDURE

    Indicator Condition

    INDICATOR CONDITION SPECIFICATION

    State Condition Specified State
    Blinking The vehicle has run 4,500 miles since the previous setting The indicator blinks for 15 seconds after the ignition switch is turned to the ON position (including 3 seconds for a valve check).
    Continuously Illuminated The vehicle has run 5,000 miles since the previous setting The indicator is continuously illuminated after the ignition switch is turned to the ON position.
    1. Turn the ignition switch to the ON position.
    2. Set the ODO/TRIP indication to ODO.
    3. While pressing the reset switch, turn the ignition switch OFF and ON again.
    4. Press the reset switch for more than 5 seconds.

      (The oil maintenance indicator illuminates for 3 seconds, and then flashes in accordance with the distance run*.)

      HINT:

      • *: If the distance run is less than 4,500 mile, the indicator turns off. If the distance run is between 4,500 mile and 4999 miles, the indicator flashes for 2 seconds.
      • If the distance run is more than 5,000 mile, the indicator turns off. If the reset switch is not pressed for at least 5 seconds, the reset procedure fails.
      • The ODO/TRIP indicator indicates as follows while the reset switch is pressed for 5 seconds.

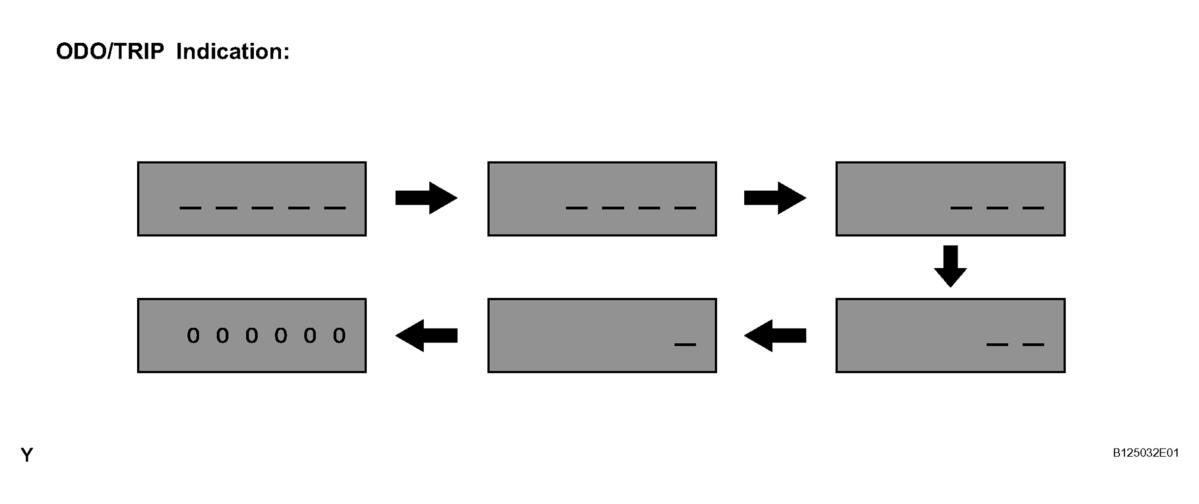

        Fig 3: ODP\TRIP Indication Flow
        G04412637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
