Radio Antenna Cord: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL RADIO ANTENNA CORD SUB-ASSEMBLY

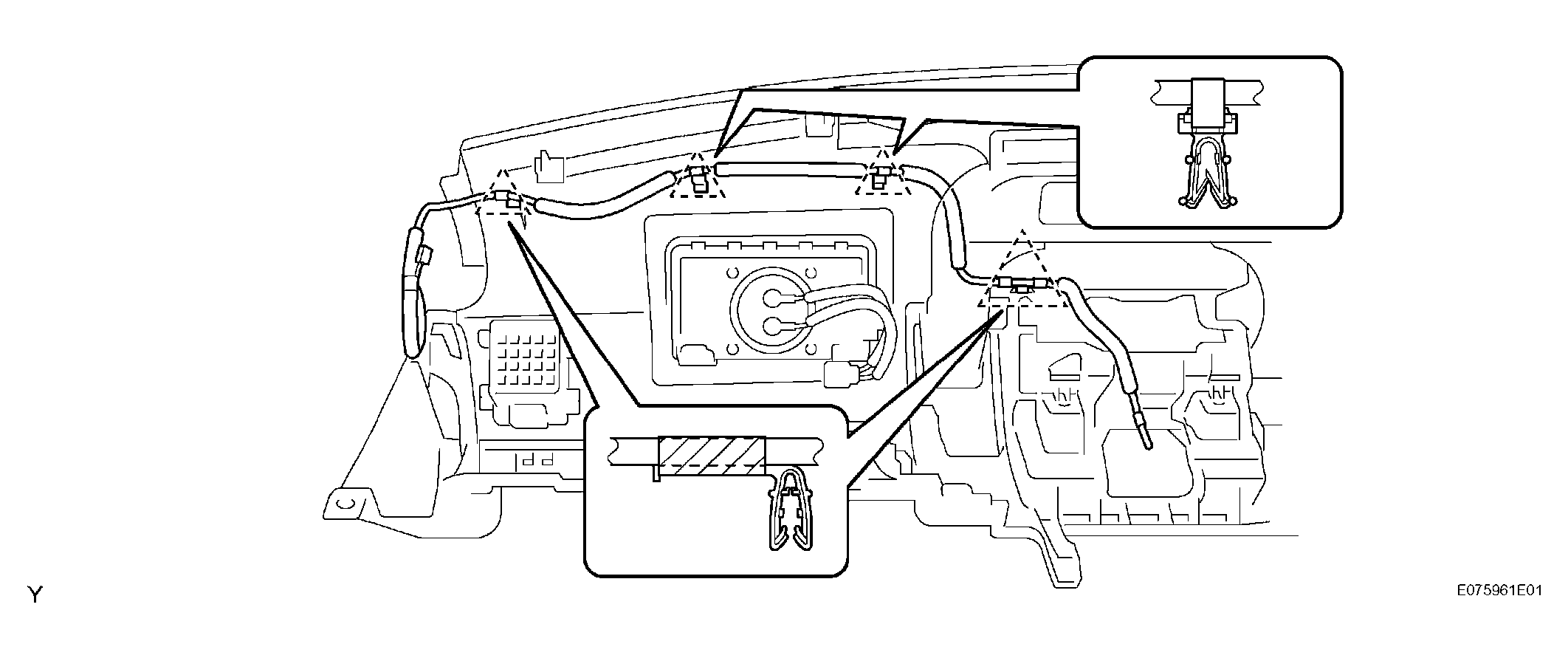

    Fig 1: Installing Radio Antenna Cord Sub-Assembly
    G04412789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Engage the 4 claws and install the Radio antenna cord.
  2. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
  3. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY (See  INSTALLATION  )
  4. CONNECT PASSENGER AIRBAG CONNECTOR (See  INSTALLATION  )
  5. INSTALL INSTRUMENT SIDE PANEL RH (See  INSTALLATION  )
  6. INSTALL INSTRUMENT LOWER COVER SUB-ASSEMBLY (See  INSTALLATION  )
  7. INSTALL LOWER INSTRUMENT PANEL LH (See  INSTALLATION  )
  8. INSTALL INSTRUMENT PANEL LOWER FINISH PANEL SUB-ASSEMBLY RH (See  INSTALLATION  )
  9. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See  INSTALLATION  )
  10. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  11. INSTALL COMBINATION METER ASSEMBLY (See  INSTALLATION  )
  12. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  13. INSTALL NO. 1 LOWER INSTRUMENT PANEL FINISH PANEL (See  INSTALLATION  )
  14. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (See  REASSEMBLY  )
  15. INSTALL RADIO RECEIVER ASSEMBLY (See  INSTALLATION   )
  16. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (See  INSTALLATION  )
  17. INSTALL FRONT CONSOLE BOX (for Manual Transmission on Bench Seat Type) (See  INSTALLATION  )
  18. INSTALL FRONT CONSOLE BOX (for Automatic Transmission on Bench Seat Type) (See  INSTALLATION  )
  19. INSTALL FRONT CONSOLE BOX (for Manual Transmission on Separate Seat Type) (See  INSTALLATION  )
  20. INSTALL FRONT CONSOLE BOX (for Automatic Transmission on Separate Seat Type) (See  INSTALLATION  )
  21. INSTALL INSTRUMENT PANEL CUP HOLDER TRAY (for Automatic Transmission on Separate Seat Type) (See  INSTALLATION  )
  22. INSTALL REAR CONSOLE BOX ASSEMBLY (for Separate Seat Type) (See  INSTALLATION  )
  23. INSTALL CONSOLE UPPER REAR PANEL SUBASSEMBLY (for Manual Transmission on Separate Seat Type) (See  INSTALLATION  )
  24. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Automatic Transmission on Separate Seat Type) (See  INSTALLATION  )
  25. INSTALL INSTRUMENT PANEL HOLE COVER (for Lever Type Parking Brake) (See  INSTALLATION  )
  26. INSTALL INSTRUMENT PANEL UNDER TRAY (for Pedal Type Parking Brake) (See  INSTALLATION  )
  27. INSTALL FRONT PILLAR GARNISH RH (See  INSTALLATION  )
  28. INSTALL FRONT PILLAR GARNISH LH (See  INSTALLATION  )
  29. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH (See  INSTALLATION  )
  30. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH (See  INSTALLATION  )
  31. INSTALL COWL SIDE TRIM BOARD RH (See  INSTALLATION  )
  32. INSTALL COWL SIDE TRIM BOARD LH (See  INSTALLATION  )
  33. INSTALL FRONT DOOR SCUFF PLATE RH (See  INSTALLATION  )
  34. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
  35. INSTALL FRONT FLOOR FOOTREST (See  FRONT FLOOR FOOTREST  )
  36. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
