Front No. 2 Speaker: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH and LH sides.
The procedures listed below are for the LH side.

INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
1. Engage the claw.

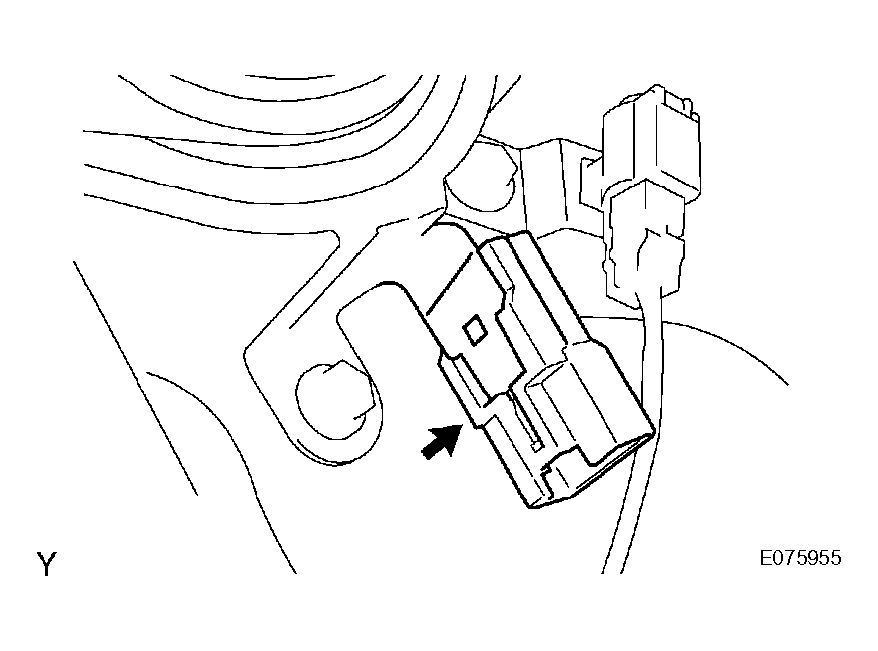

  Fig 1: Engaging Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the front No. 2 speaker assembly with the 2 bolts.
  Torque: 8.4 N*m (85 kgf*cm, 74 in.*lbf)
3. Connect the connector.
INSTALL FRONT DOOR TRIM PANEL ASSEMBLY LH (See REASSEMBLY )
INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH (See REASSEMBLY )
INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (w/ Power Door Lock) (See REASSEMBLY )

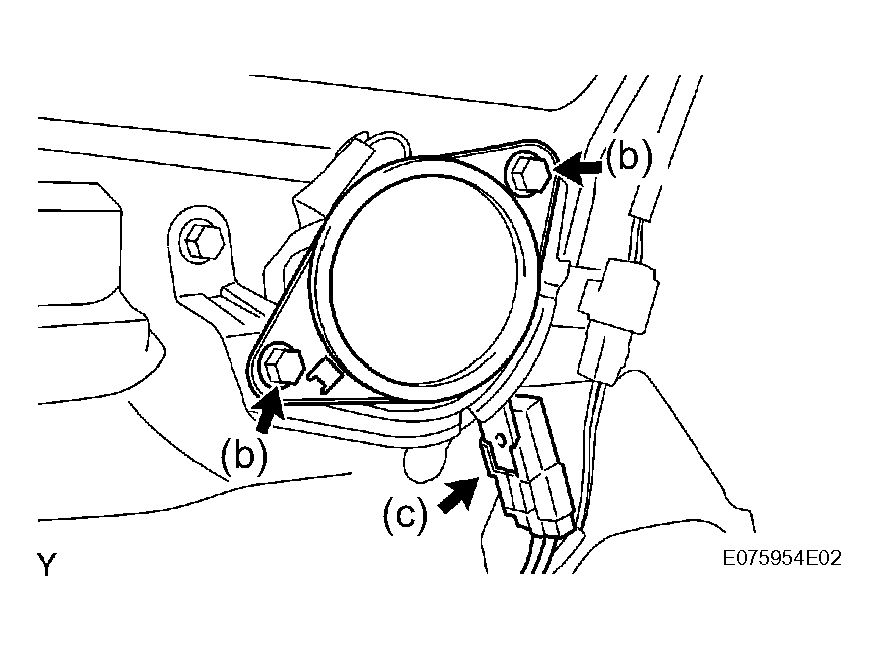

Fig 2: Installing Front No. 2 Speaker Assembly With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR WINDOW REGULATOR HANDLE ASSEMBLY (w/o Power Door Lock) (See REASSEMBLY )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
