Section 34 (Starting System (2TR-FE)): Starter: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE STARTER ASSEMBLY
    1. Remove the terminal cap.
    2. Remove the nut, then remove the starter wire harness.
    3. Disconnect the starter connector.

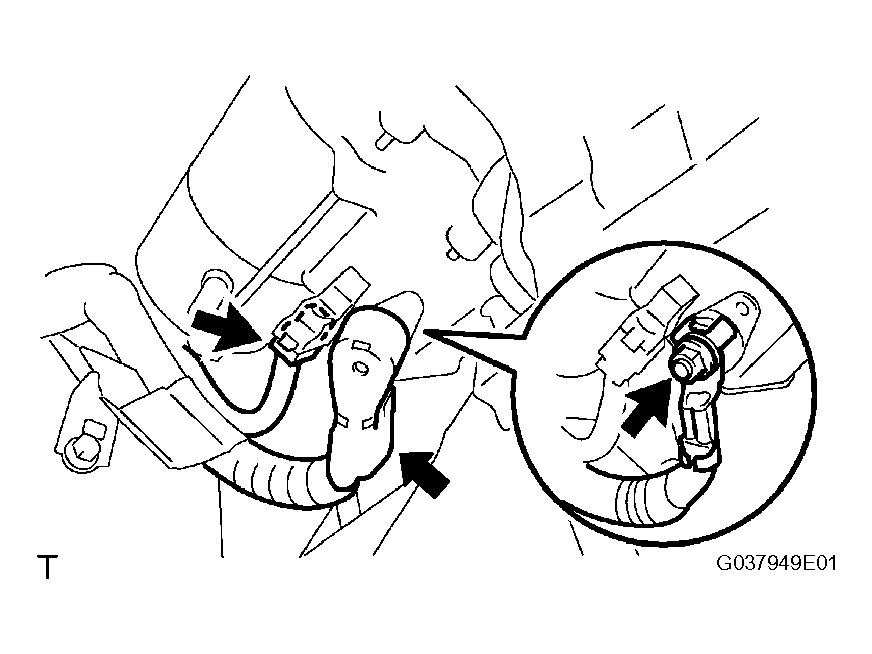

      Fig 1: Removing Starter Wire Harness With Nut
      G04409684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 bolts, then remove the starter.

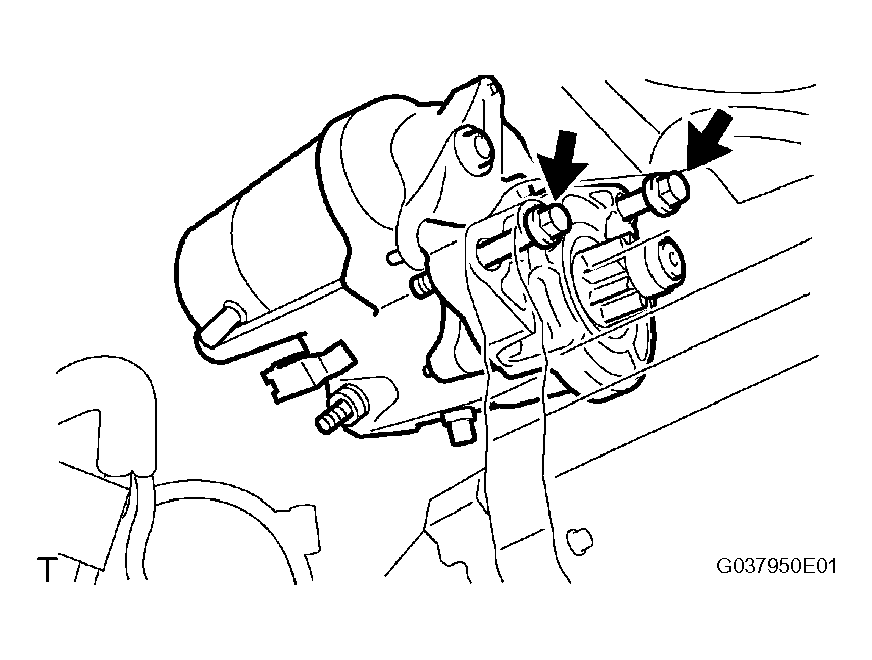

      Fig 2: Removing Starter With Bolts
      G04409685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
