Starter Relay: Inspection

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT STARTER RELAY
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

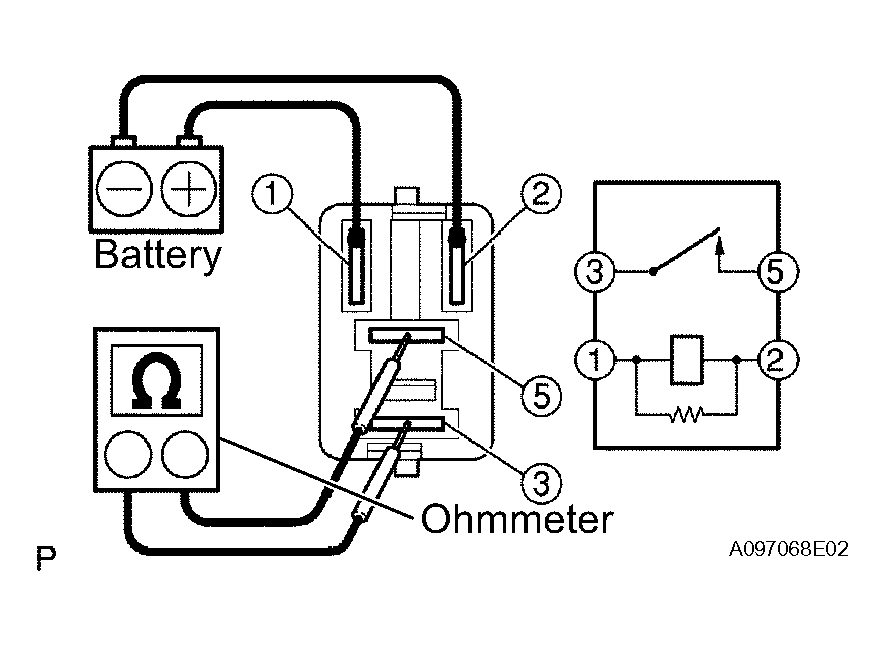

        Fig 1: Measuring Resistance Between Terminals Using Ohmmeter
        G04409712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        TESTER CONNECTION SPECIFIED CONDITION TABLE

        Tester Connection Specified Condition
        3-5 10 kΩ or higher
        3-5 Below 1Ω (Apply battery voltage to terminals 1 and 2)

        If the result is not as specified, replace the starter relay.
