Ignition Switch: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE STEERING COLUMN COVER LWR
    1. Remove the 2 screws.
    2. Disengage the 2 claws and remove the steering column cover LWR.

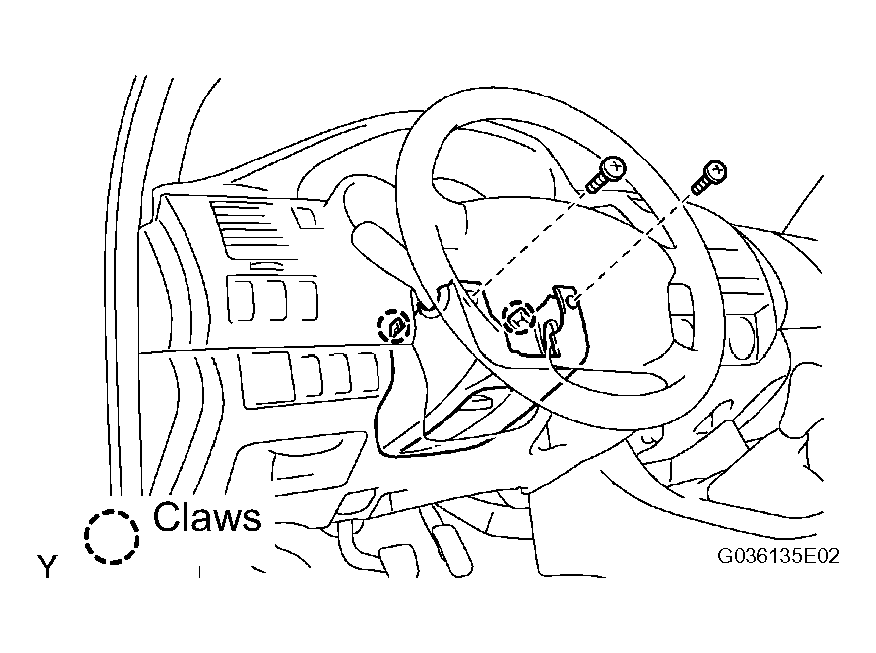

      Fig 1: Removing Steering Column Cover LWR With Screws & Claws
      G04409713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE IGNITION SWITCH
    1. Disconnect the connector.
    2. Disengage the 2 clamps, then remove the ignition or starter switch.

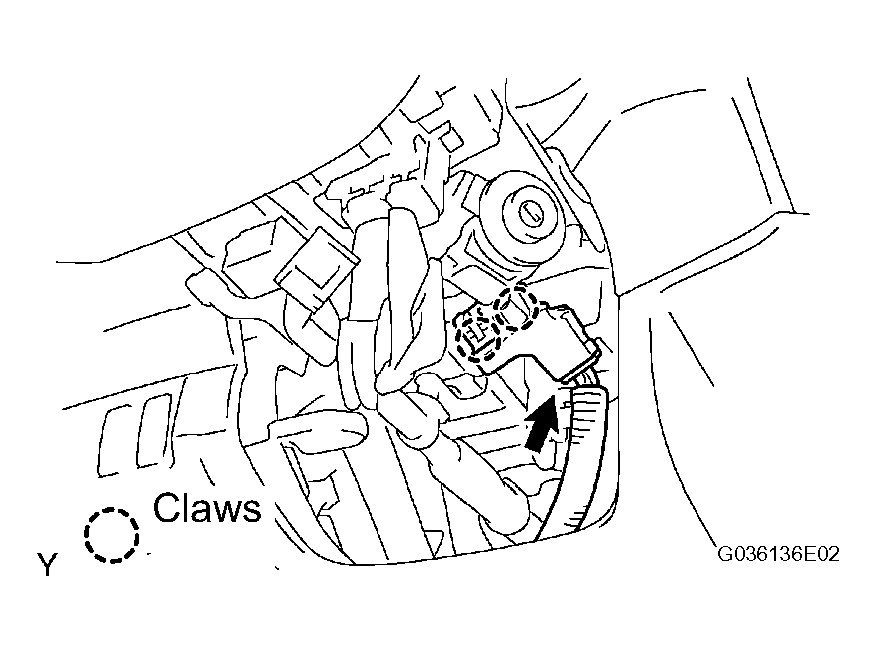

      Fig 2: Removing Ignition Or Starter Switch
      G04409714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
