Ignition Switch: Inspection

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT IGNITION SWITCH
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Standard

        TESTER CONNECTION SPECIFIED CONDITION TABLE

        Switch Condition Tester Connection Specified Condition
        LOCK - 10 kΩ or higher
        ACC 1 (AM1) -3 (ACC) Below 1Ω
        ON 1 (AM1) -3 (ACC) -4 (IG1) 7 (IG2) -8 (AM2) Below 1Ω
        START 1 (AM1) -2 (ST1) -4 (IG1) 6 (ST2) -7 (IG2) -8 (AM2) Below 1Ω

        If the result is not as specified, replace the ignition switch.

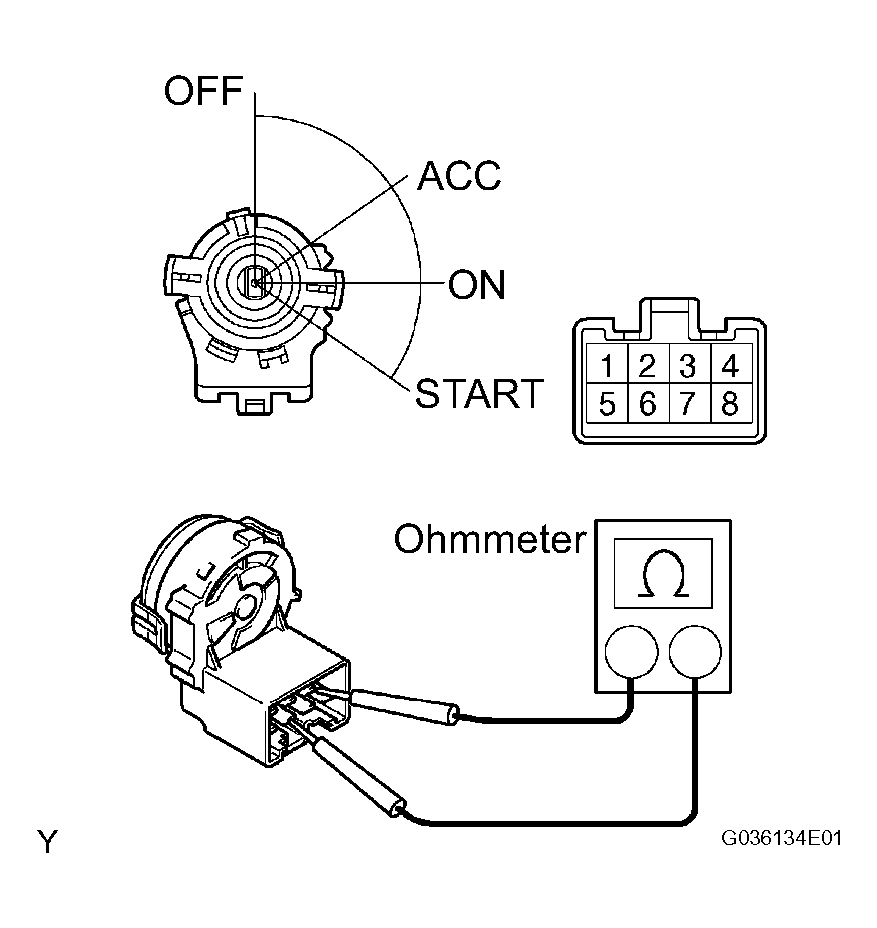

        Fig 1: Measuring Resistance Between Terminals Using Ohmmeter
        G04409715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
