Wiper Switch: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.

  2. REMOVE STEERING COLUMN LOWER COVER (See  REMOVAL  )
  3. REMOVE STEERING COLUMN UPPER COVER (See  REMOVAL  )
  4. REMOVE WIPER SWITCH
    1. Disconnect the 2 connectors.
    2. Using a screwdriver wrapped with protective tape, disengage the claw and remove the windshield wiper switch assembly.
      NOTE: The claw will break if pressed too hard.

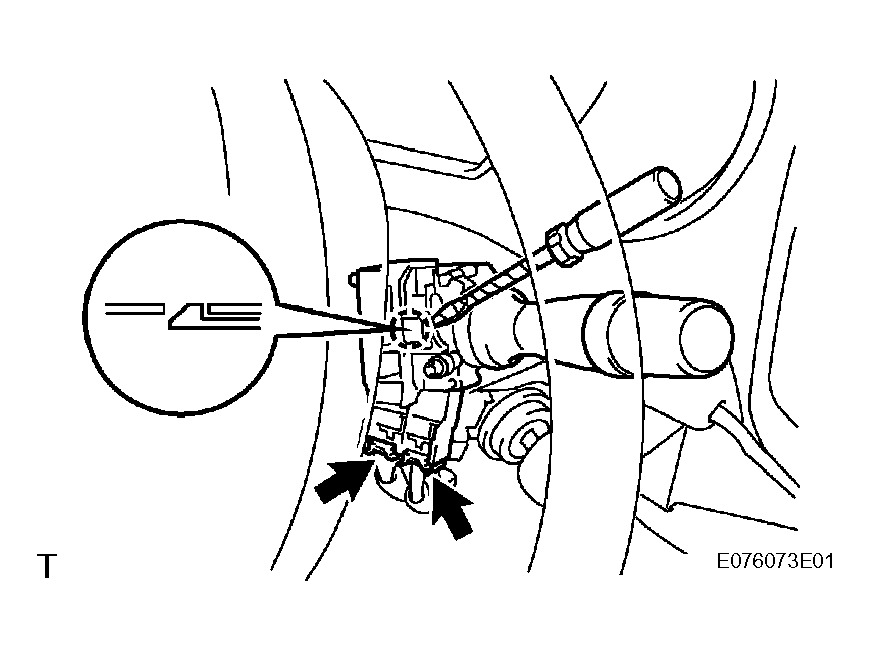

      Fig 1: Disengaging Claw
      G04412555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
