On-Vehicle Inspection

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT WASHER MOTOR
1. Check the operation.
  1. Fill the washer jar with washer fluid.
    HINT:

    Operation should be performed with the windshield washer motor and pump assembly installed onto the washer jar assembly.
  2. Connect the positive battery (+) lead to terminal 1 of the windshield washer motor and pump assembly, then the negative battery (-) lead to terminal 2. Check that washer fluid flows from the washer jar.
    Standard: Washer fluid flows from the washer jar.

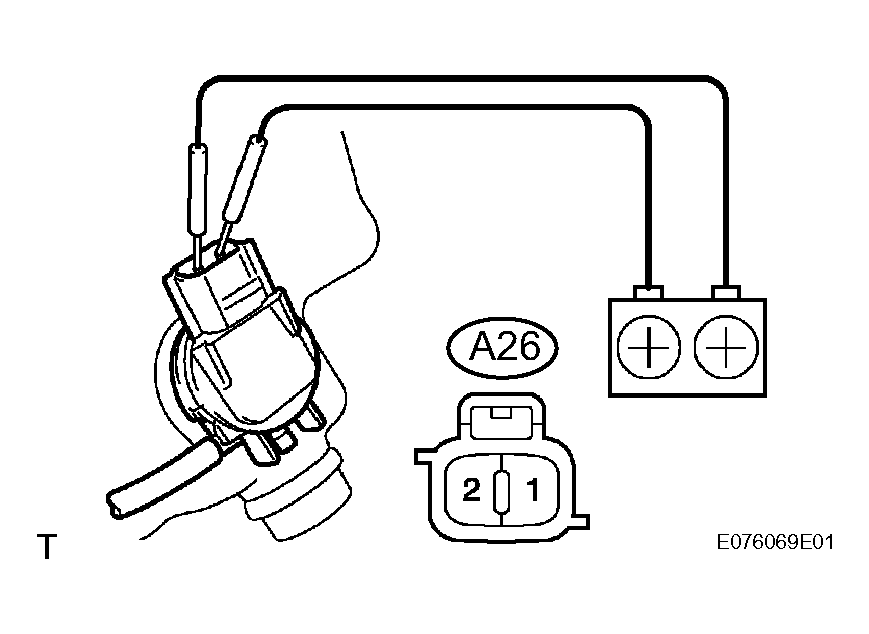

    Fig 1: Connecting Battery Lead To Terminal Of Windshield Washer Motor & Pump Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
