Front Wiper Rubber: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WIPER BLADE
1. Raise the front wiper blade to the position as shown in Fig 1.

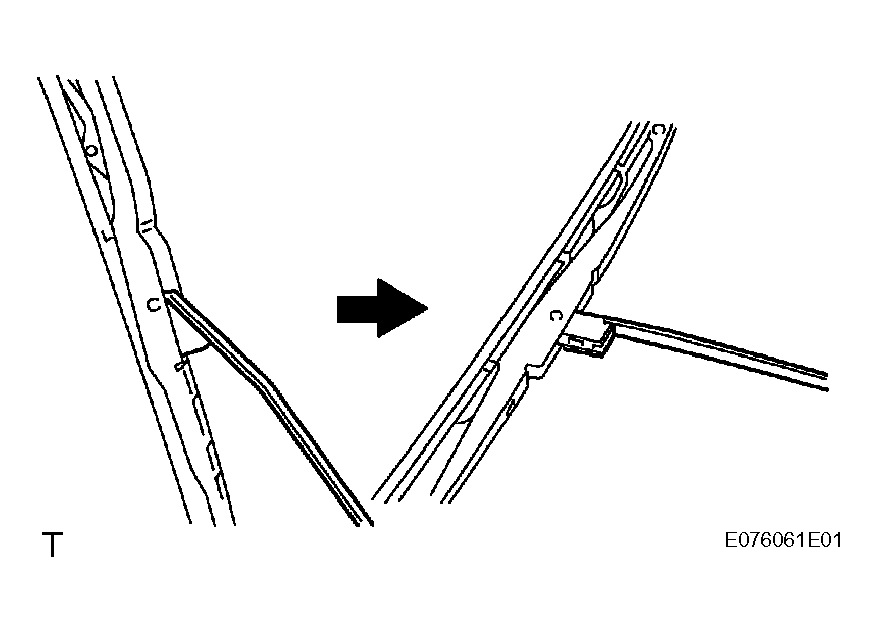

  Fig 1: Raising Front Wiper Blade
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the claw and remove the front wiper blade LH from the front wiper arm LH.
  NOTE: Do not bend the front wiper arm with the front wiper blade LH removed, as the arm tip could damage the windshield surface.

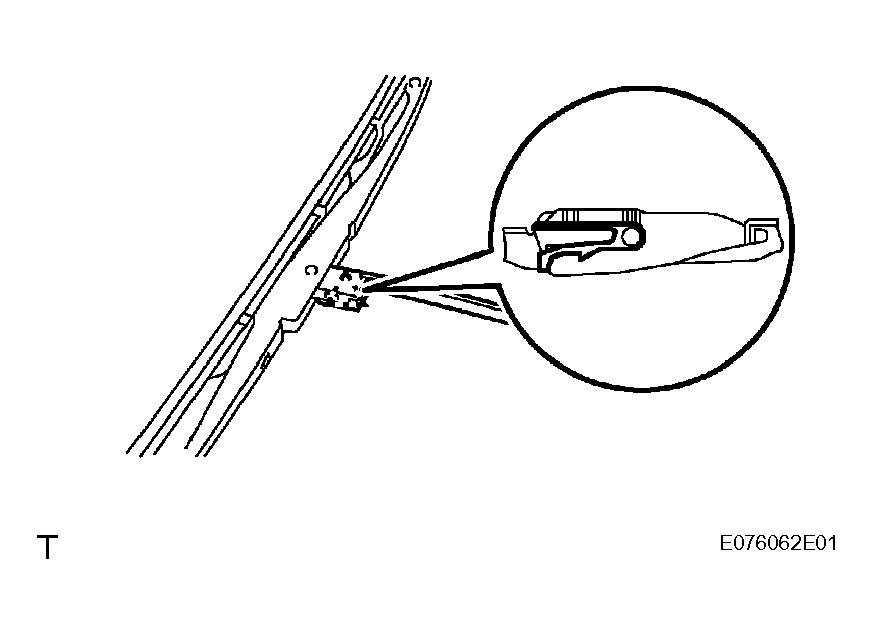

  Fig 2: Disengaging Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT WIPER RUBBER
1. Remove the front wiper rubber LH from the front wiper blade.

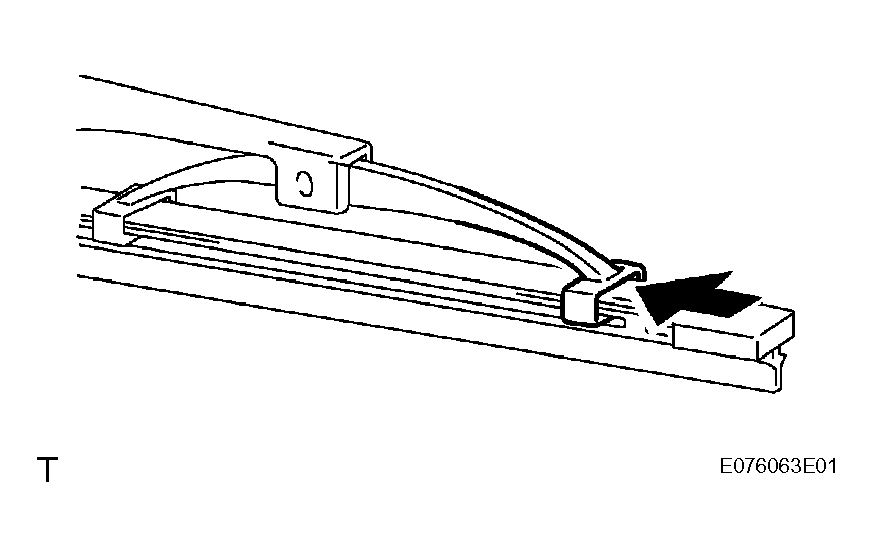

  Fig 3: Removing Front Wiper Rubber LH From Front Wiper Blade
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 wiper rubber backing plates from the wiper rubber LH.

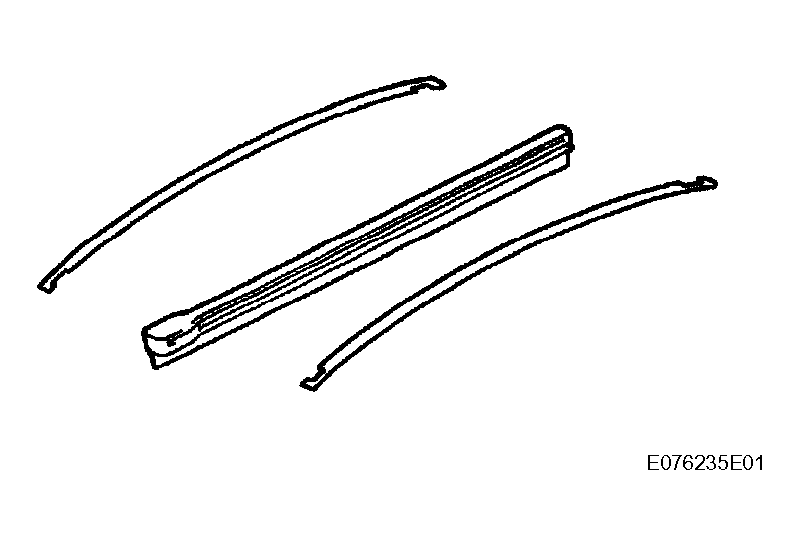

  Fig 4: Removing 2 Wiper Rubber Backing Plates From Wiper Rubber LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
