Front Wiper Rubber: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WIPER RUBBER
1. Install the 2 wiper rubber backing plates onto the wiper rubber LH.
  NOTE: Be sure to install the wiper rubber backing plates in the correct direction.

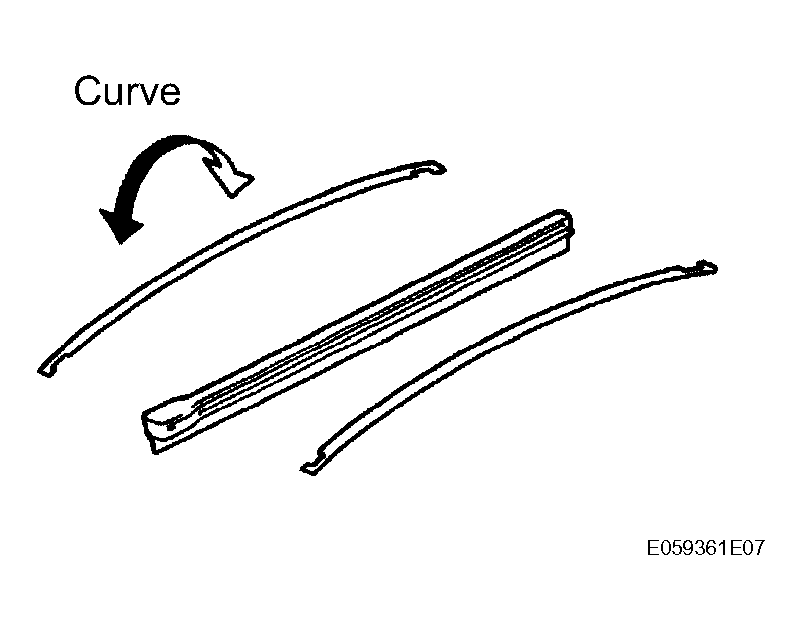

  Fig 1: Installing 2 Wiper Rubber Backing Plates Onto Wiper Rubber LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the wiper rubber LH so that the head part (Larger side) of the wiper rubber faces the arm axle side.
  NOTE: Push the front wiper blade into the grooves of the wiper rubber to engage them completely.

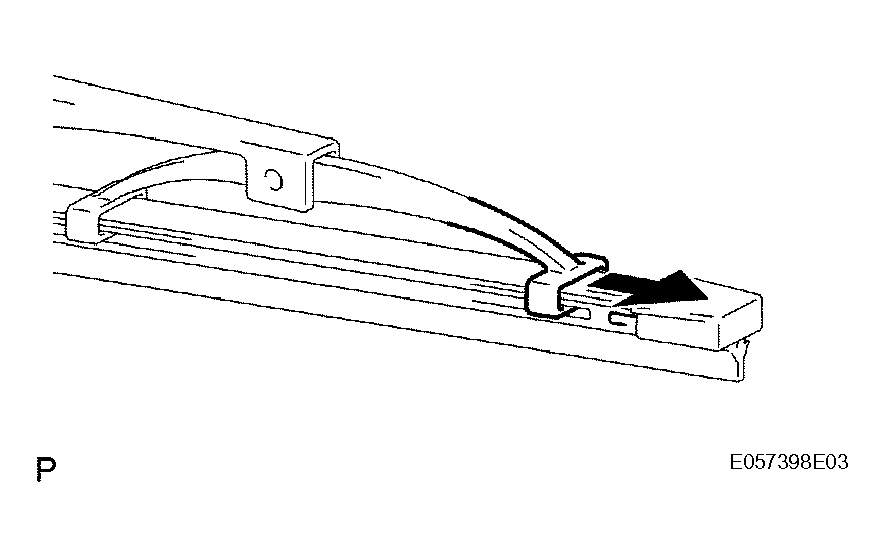

  Fig 2: Installing Wiper Rubber LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT WIPER BLADE
1. Engage the claw and install the front wiper blade LH onto the front wiper arm LH.

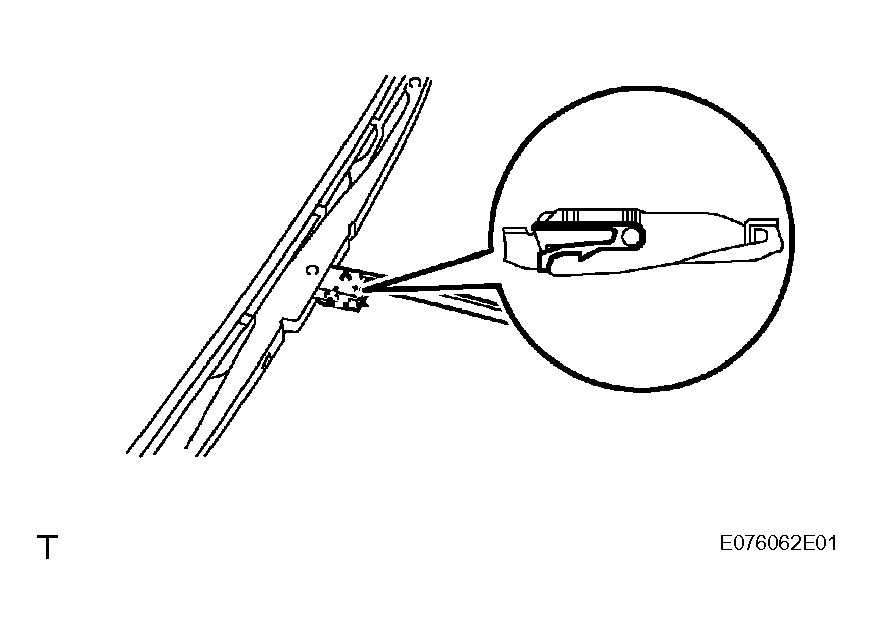

  Fig 3: Engaging Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Hold down the front wiper blade LH as shown in Fig 4.

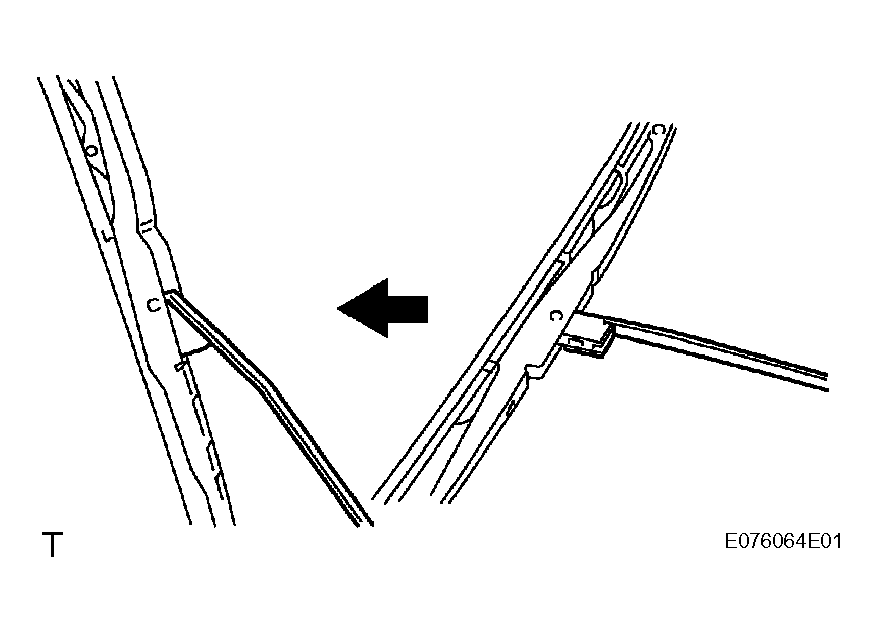

  Fig 4: Holding Down Front Wiper Blade LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
