Front Wiper Motor: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT WIPER ARM HEAD CAP
    1. Using a screwdriver wrapped with protective tape, remove the 2 front wiper arm head caps.

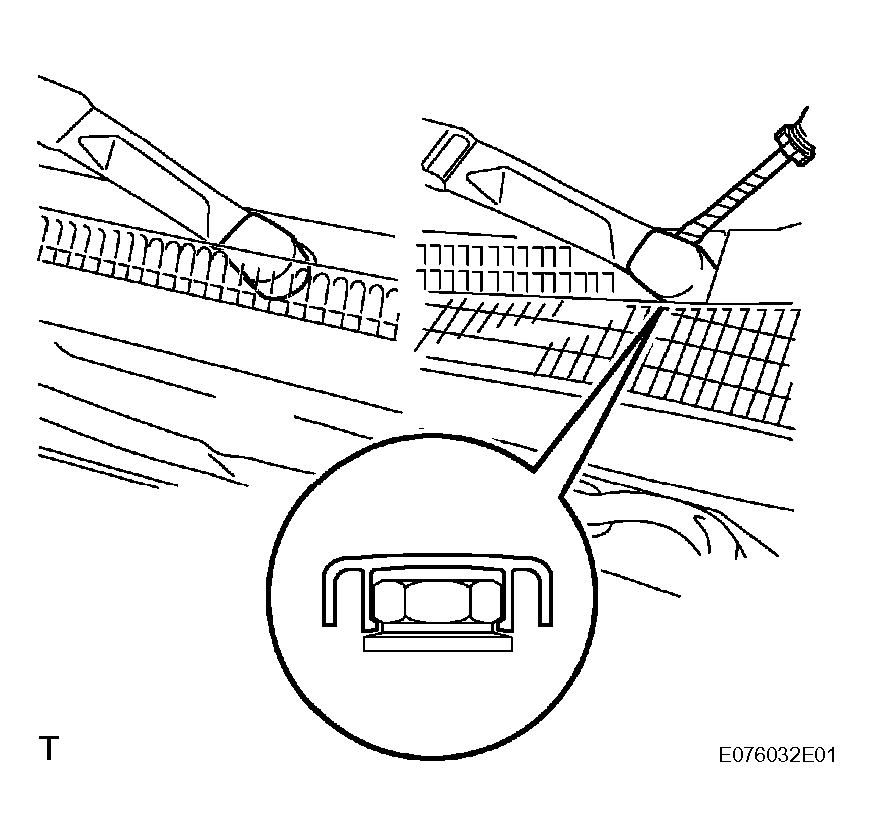

      Fig 1: Removing 2 Front Wiper Arm Head Caps
      G04412527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT WIPER ARM LH
    1. Operate the wiper, then stop the windshield wiper motor assembly at the automatic stop position.
    2. Remove the nut and front wiper arm LH.
  4. REMOVE FRONT WIPER ARM RH

    HINT:

    Perform the same procedure as above on the opposite side.

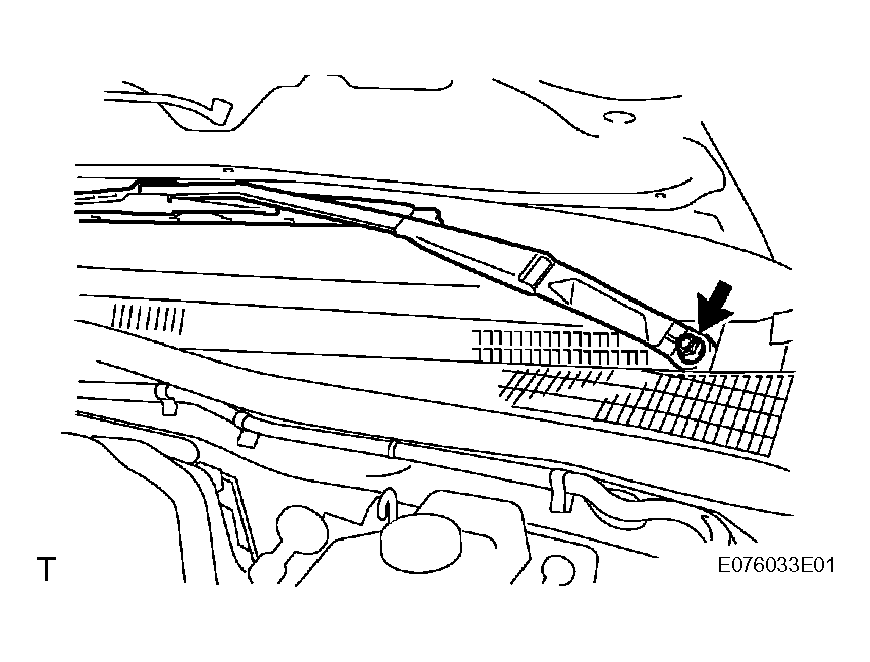

    Fig 2: Removing Front Wiper Arm LH Nut
    G04412528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT FENDER TO COWL SIDE SEAL LH
    1. Disengage the 2 claws and remove the front fender to cowl side seal LH.
  6. REMOVE FRONT FENDER TO COWL SIDE SEAL RH

    HINT:

    Perform the same procedure as above on the opposite side.

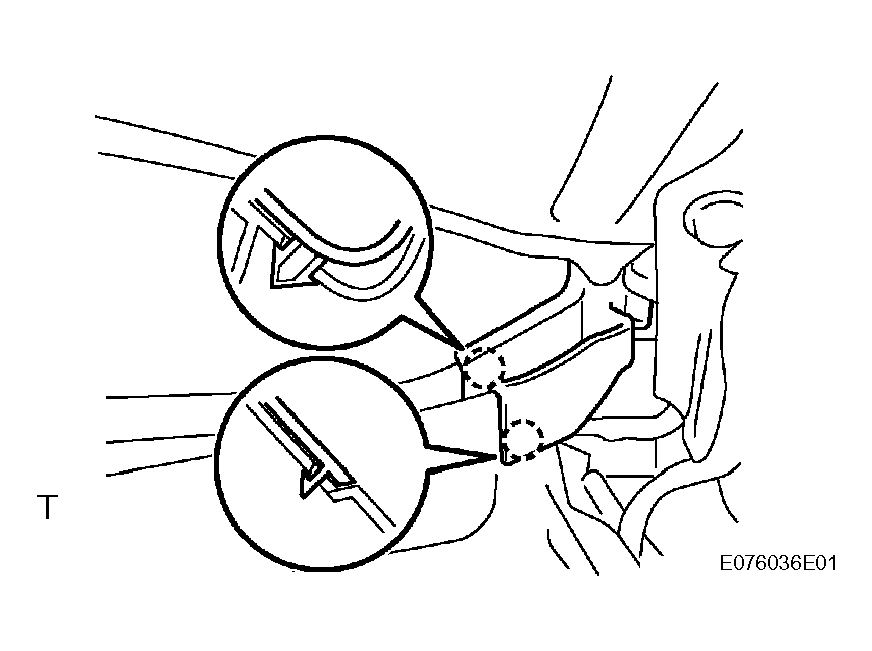

    Fig 3: Disengaging 2 Claws
    G04412529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
    1. Disengage the 2 clips.
    2. Disengage the 15 claws, then remove the cowl top ventilator louver sub-assembly.

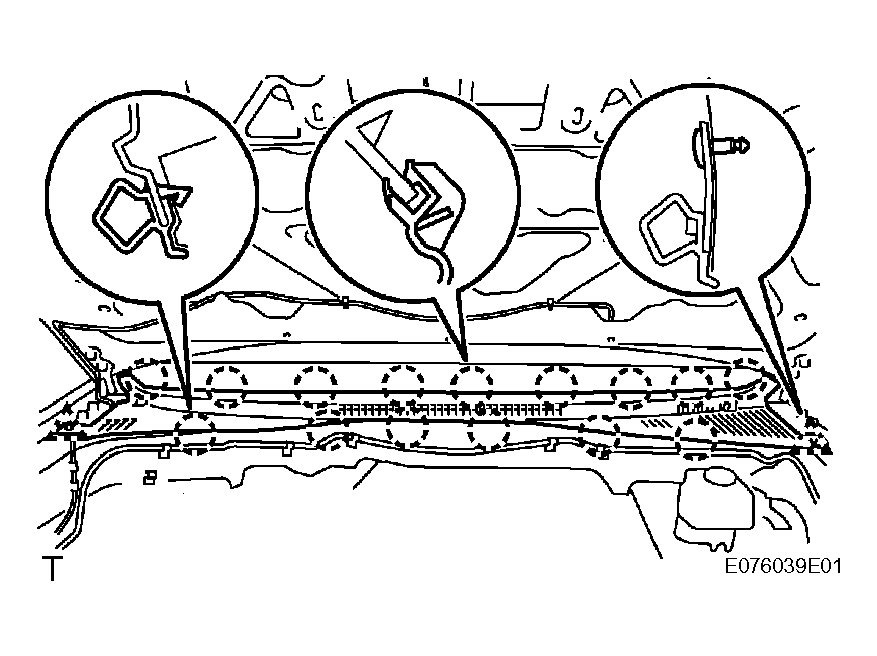

      Fig 4: Disengaging 15 Claws
      G04412530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE WINDSHIELD WIPER MOTOR AND LINK
    1. Disconnect the connector, then remove the 2 bolts.
    2. Slide the wiper link assembly to the passenger side seat side. Disengage the meshing of the rubber pin, then remove the windshield wiper motor & link assembly.

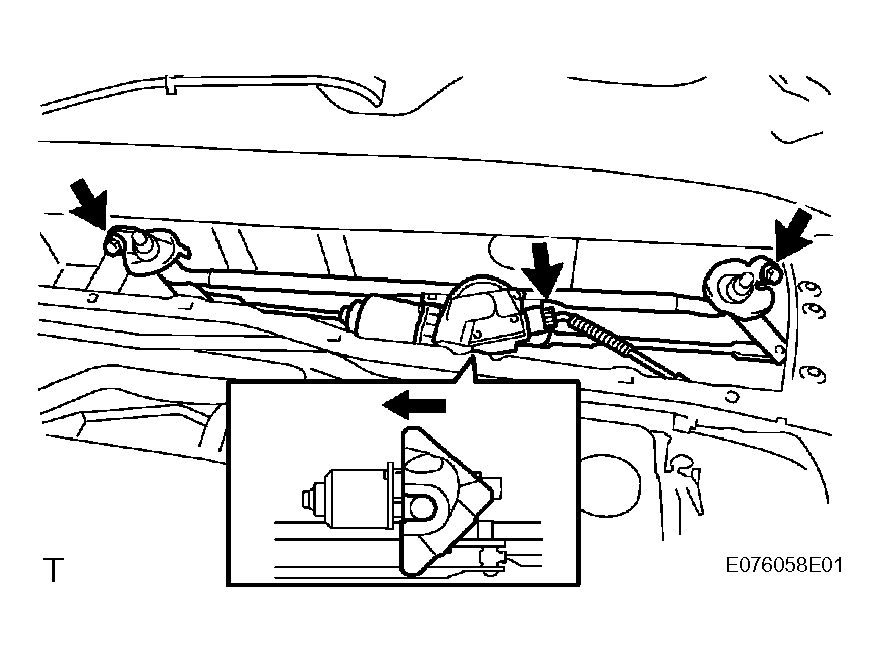

      Fig 5: Disconnecting Connector
      G04412531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT WIPER MOTOR
    1. Using a screwdriver wrapped with protective tape, disengage the meshing of the 2 rods at the crank arm pivot of the windshield wiper motor assembly.

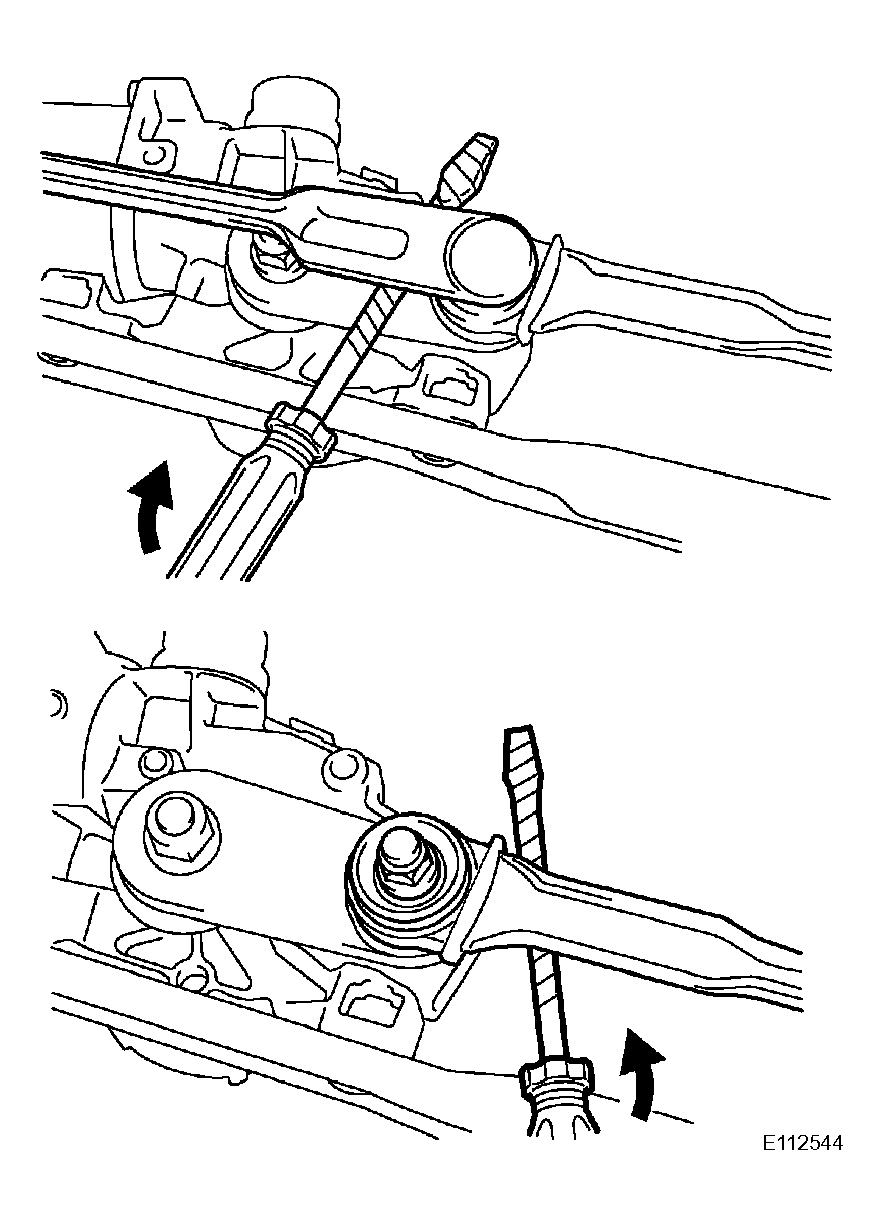

      Fig 6: Separating Rod Of Wiper Link Assembly Using Screwdriver
      G04412532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a "Torx" socket wrench (T30), remove the 2 screws and windshield wiper motor assembly.

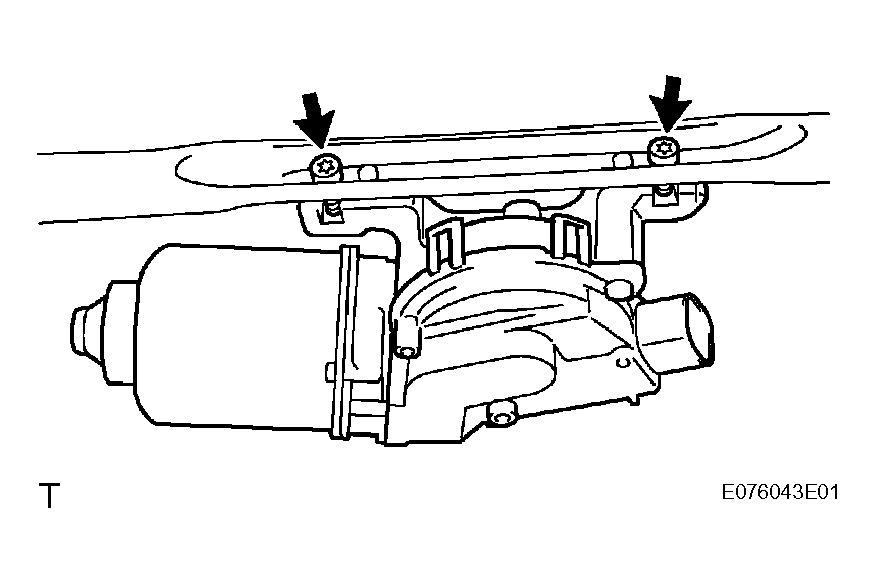

      Fig 7: Removing Windshield Wiper Motor Assembly With Screws
      G04412533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
