Front Wiper Motor: Inspection

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT FRONT WIPER MOTOR
    1. Check the LO operation.
      1. Connect the battery positive (+) lead to terminal 1 (+1) of the connector and the battery negative (-) lead to terminal 5 (E), then check that the windshield wiper motor assembly operates at low speed (LO).

        If the motor does not operate, replace the windshield wiper motor assembly.

    2. Check the HI operation.
      1. Connect the battery positive (+) lead to terminal 4 (+2) of the connector and the battery negative (-) lead to terminal 5 (E), then check that the motor operates at high speed (HI).

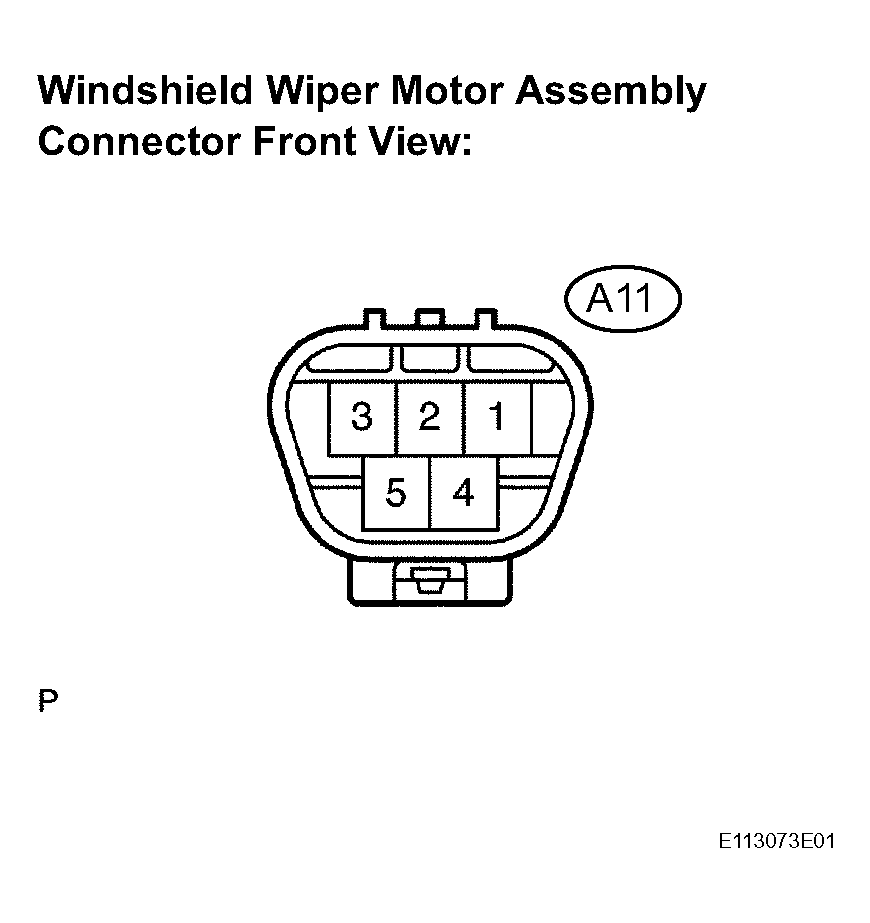

        Fig 1: Identifying Front Wiper Motor Terminals Connector
        G04412534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
