ROOF HEADLINING (for Regular Cab): Components

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

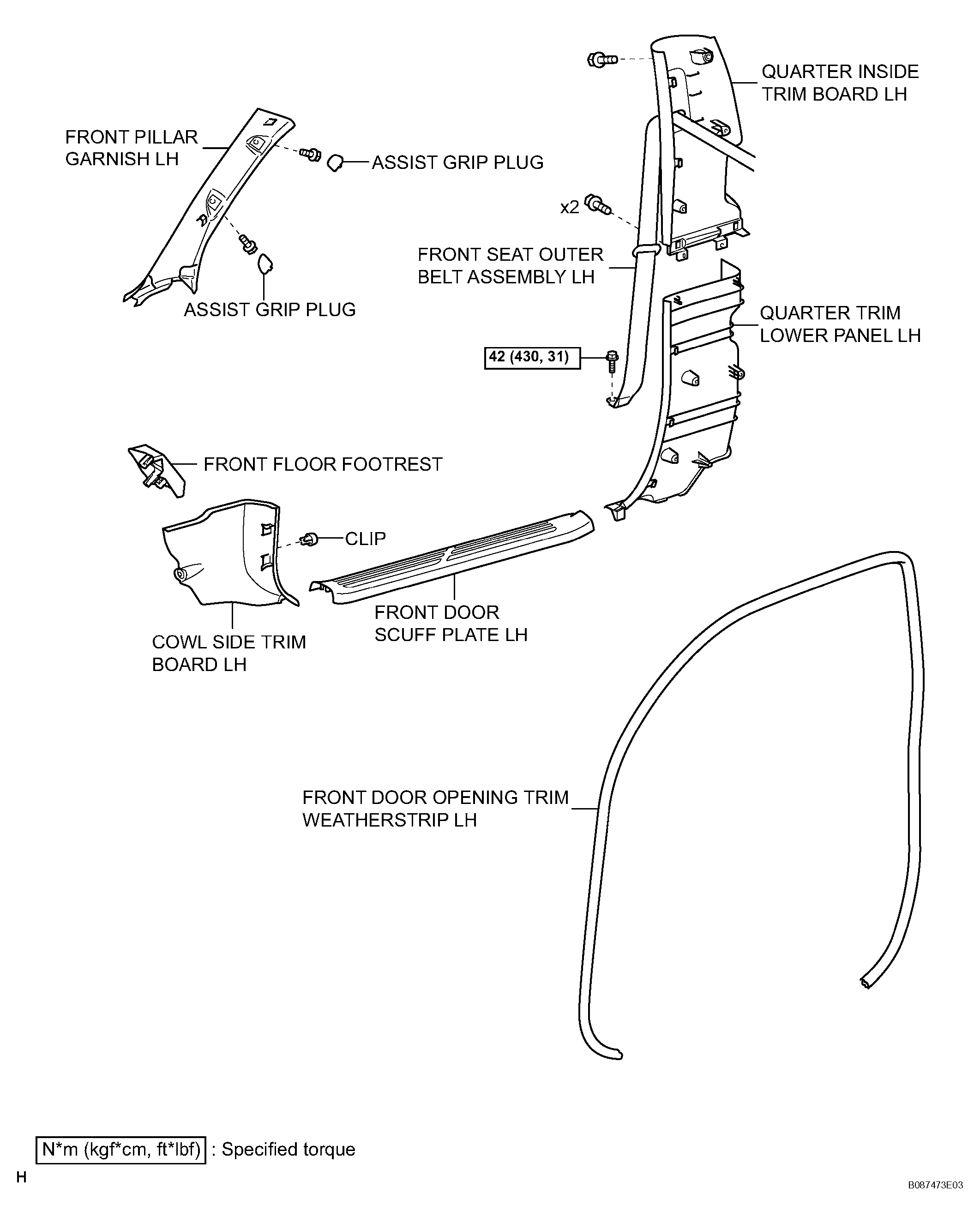

Fig 1: Roof Headlining Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

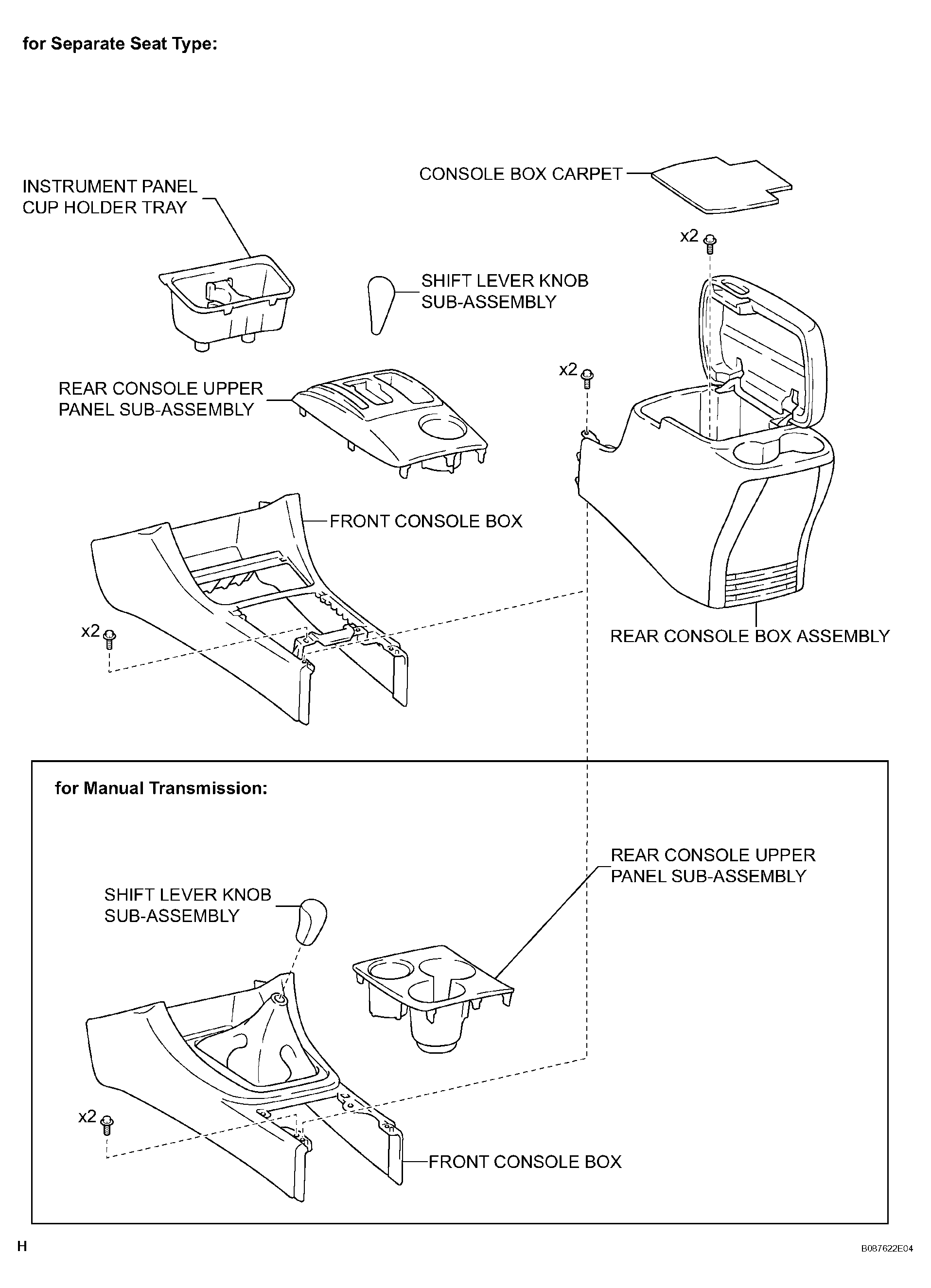

Fig 2: Roof Headlining Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Roof Headlining Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Roof Headlining Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Roof Headlining Replacement Components With Torque Specifications (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

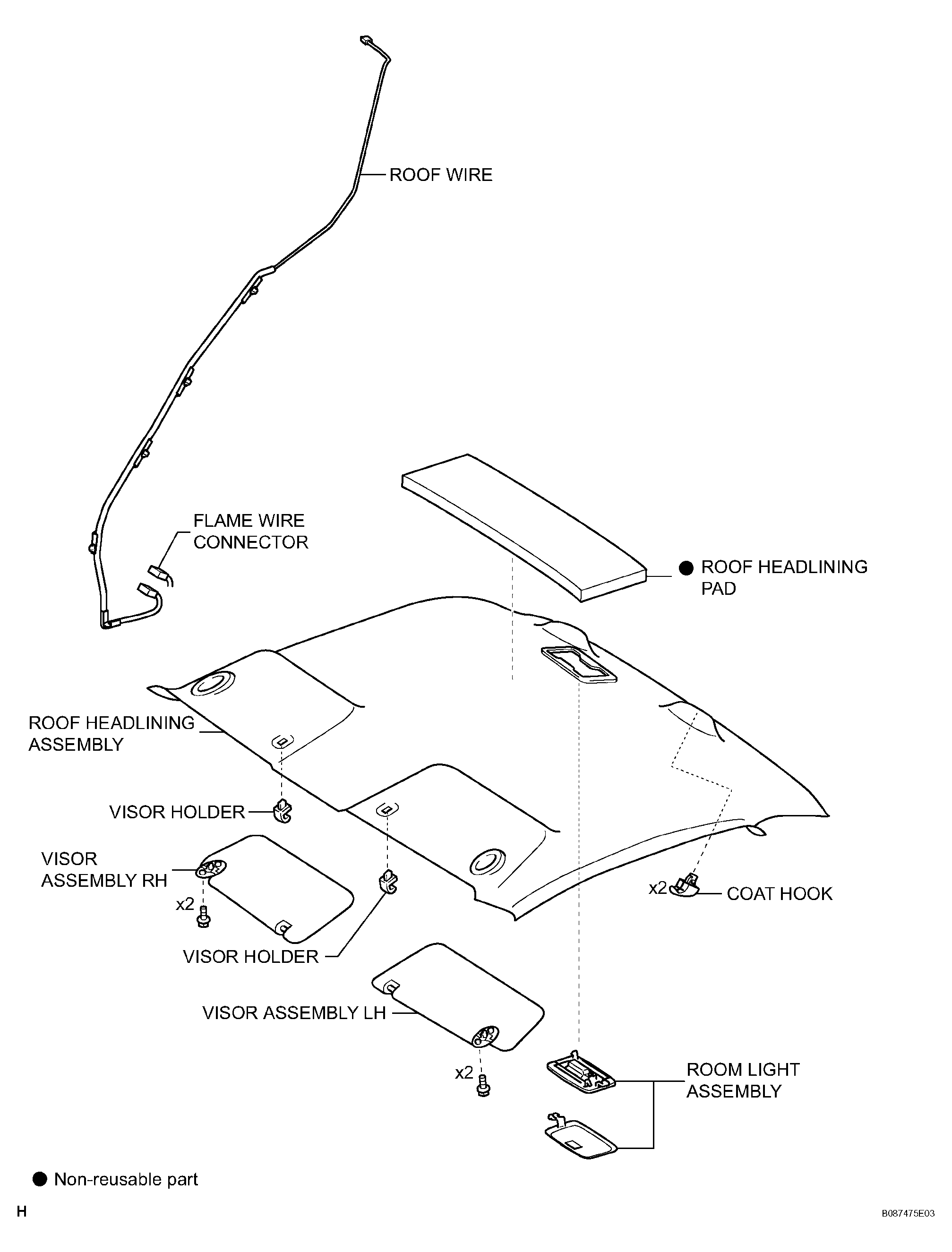

Fig 6: Roof Headlining Replacement Components With Torque Specifications (6 Of 8)

Fig 7: Roof Headlining Replacement Components With Torque Specifications (7 Of 8)

Fig 8: Roof Headlining Replacement Components With Torque Specifications (8 Of 8)
