Fuel Pump: Disassembly

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FUEL SENDER GAUGE ASSEMBLY

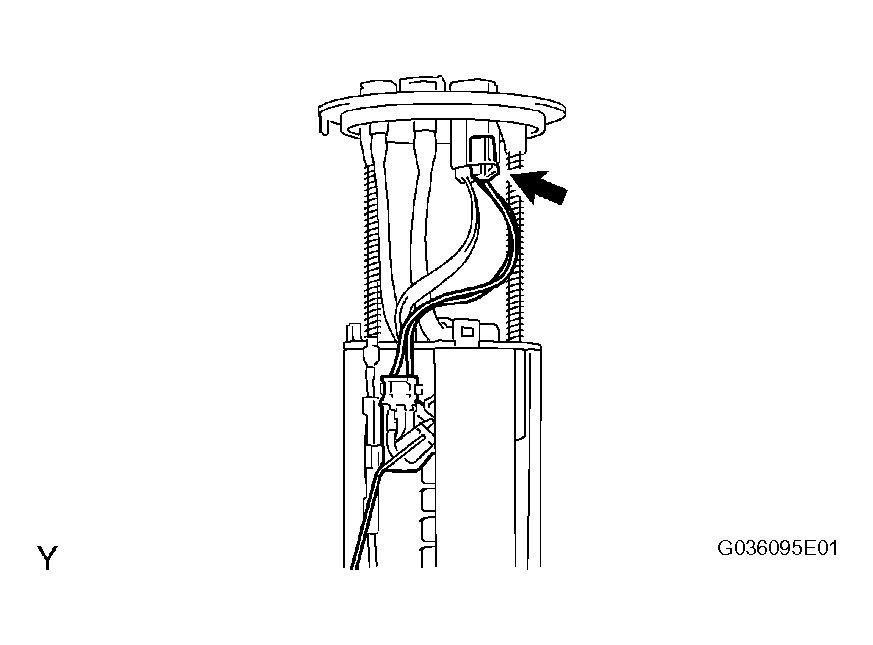

1. Disconnect the connector.

  Fig 1: Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

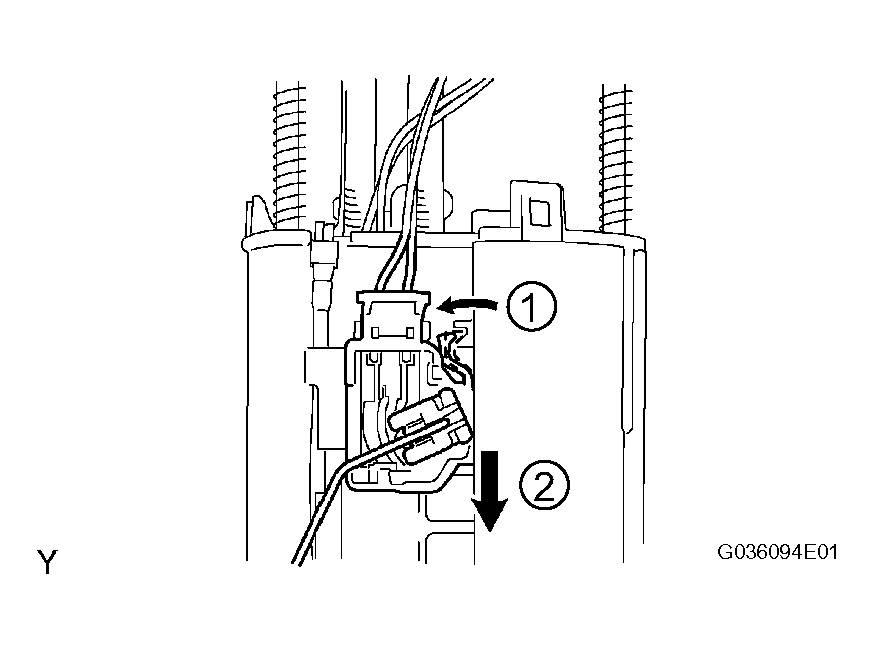

2. Disengage the claw fitting and remove the sender gauge by sliding it in the direction as shown in Fig 2.

  Fig 2: Removing Sender Gauge
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 FUEL SUB-TANK

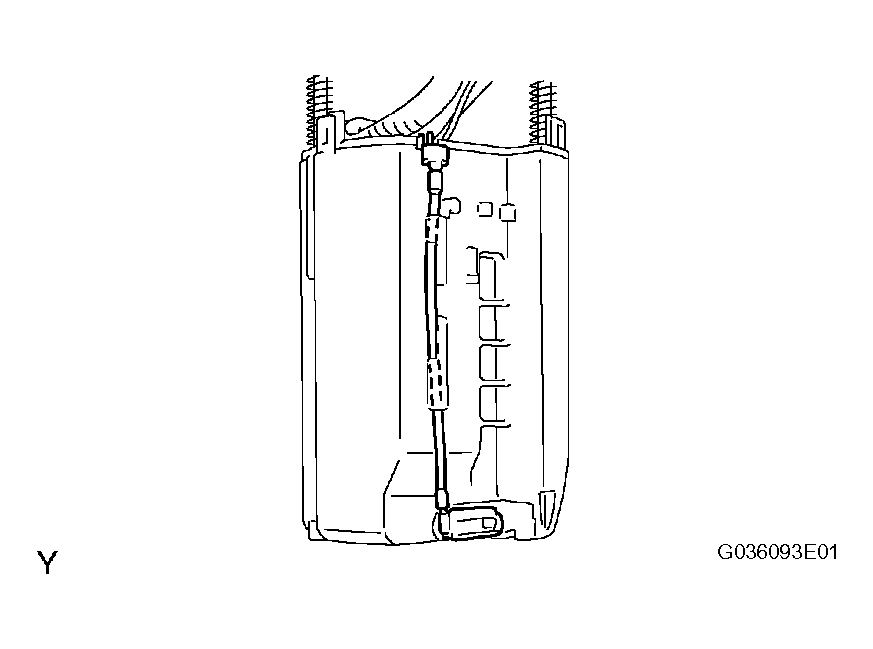

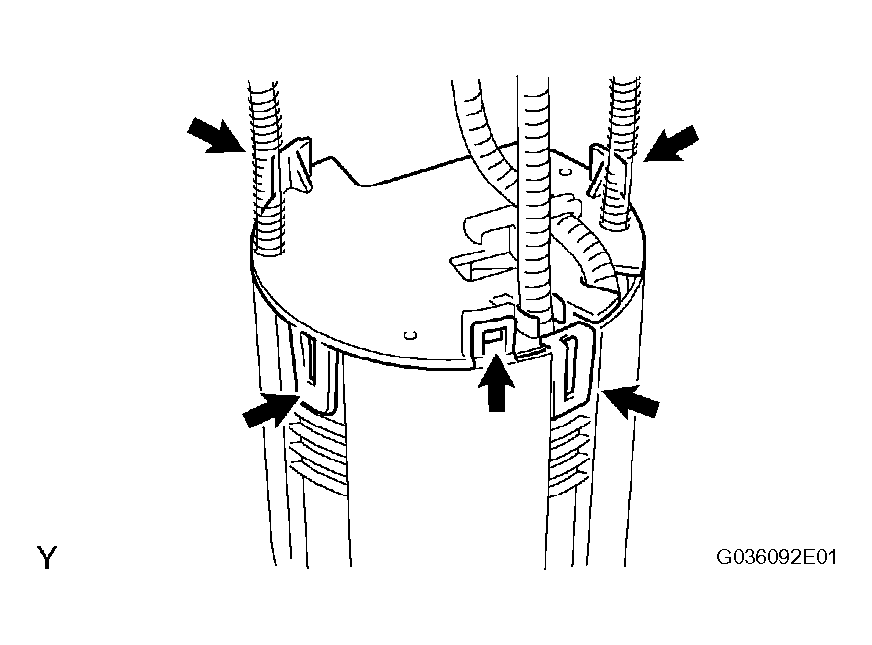

1. Disengage the 5 claw fittings and remove the fuel pump tank.

  Fig 3: Identifying Claw Fittings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Separate the connector and disengage the clamp.

  Fig 4: Separating Connector And Disengage Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP ASSEMBLY

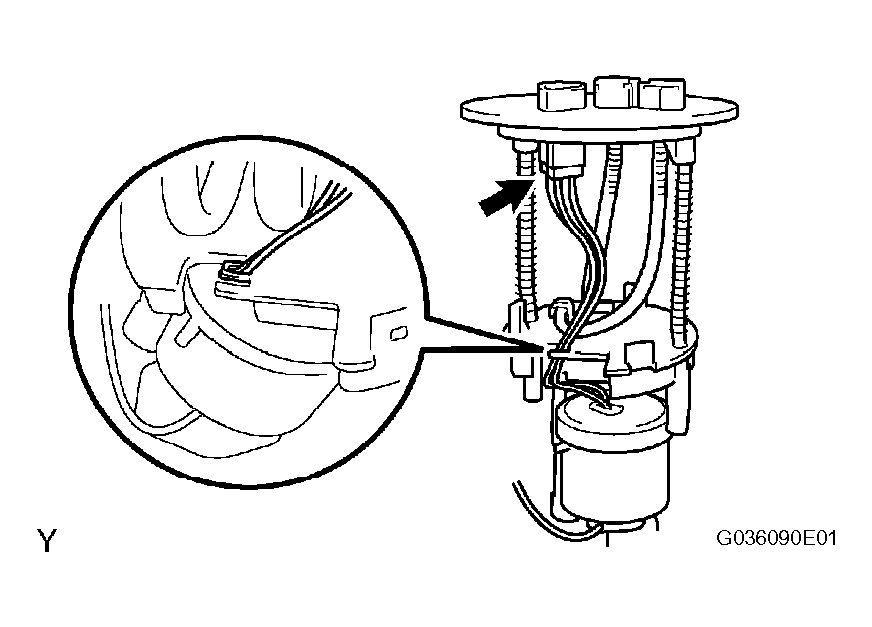

1. Disengage the clamp, then disconnect the connector.

  Fig 5: Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

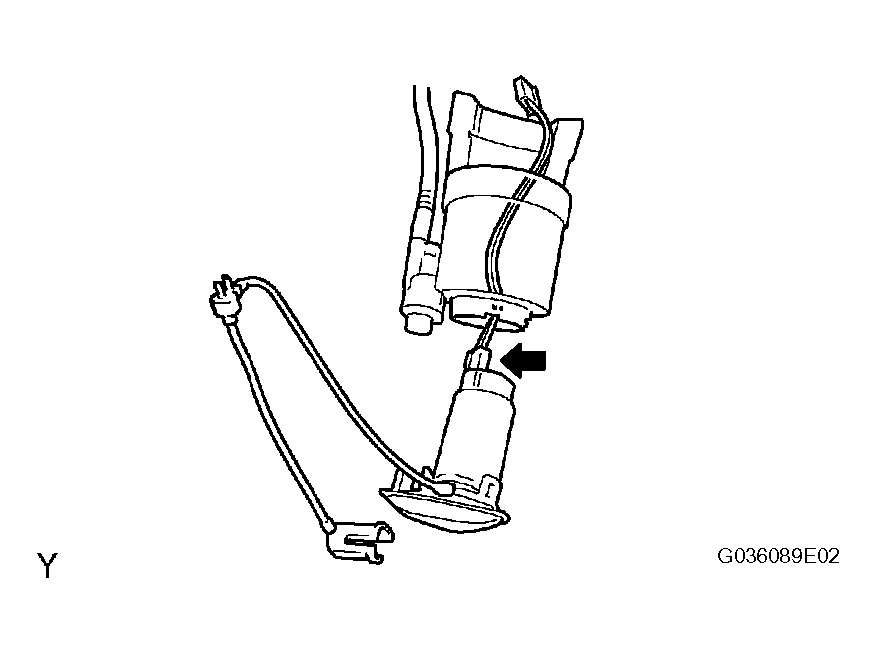

2. Disengage the 5 claw fittings and separate the fuel pump from the fuel pump case.

  Fig 6: Identifying Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

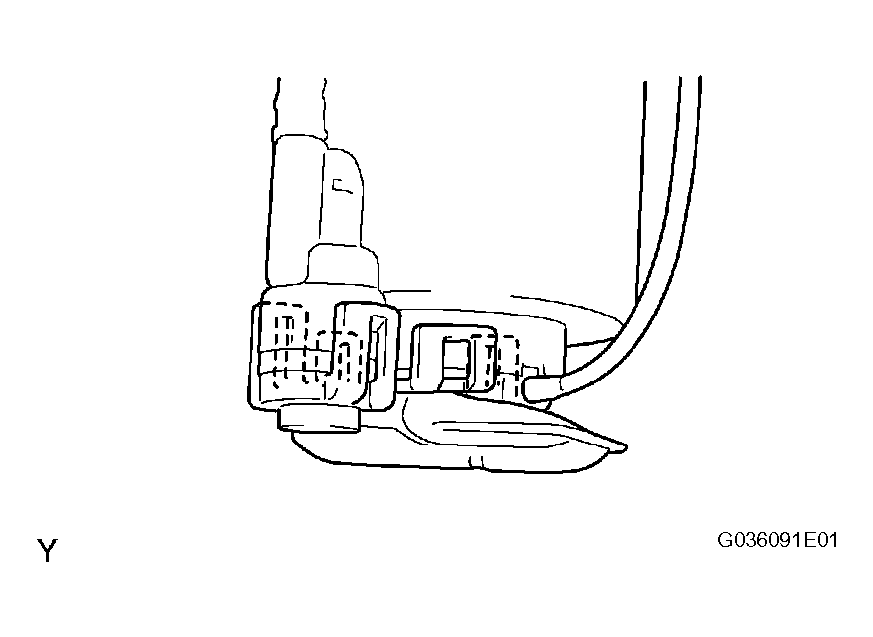

3. Disconnect the connector from the fuel pump.

  Fig 7: Disconnecting Connector From Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP FILTER
1. Remove the fuel filter from the fuel pump.

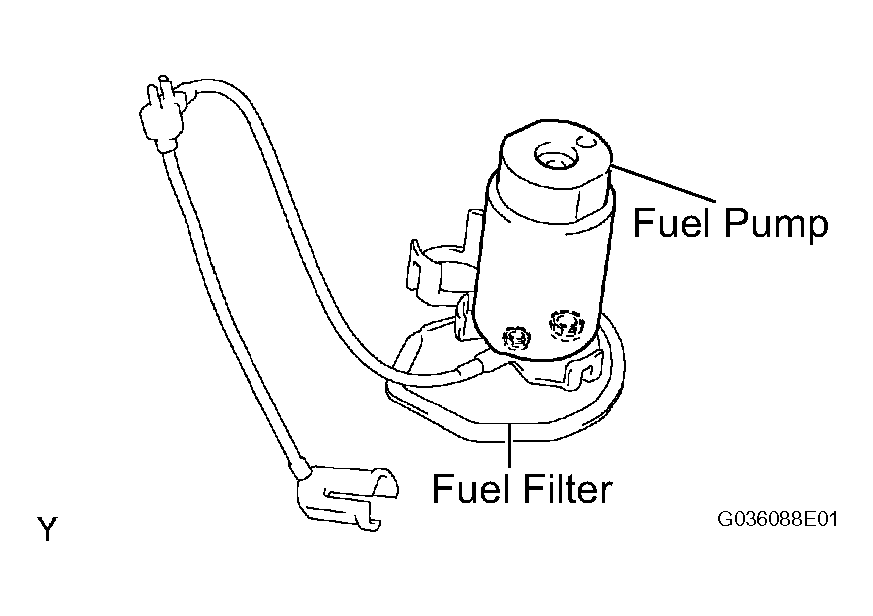

  Fig 8: Identifying Fuel Pump Filter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

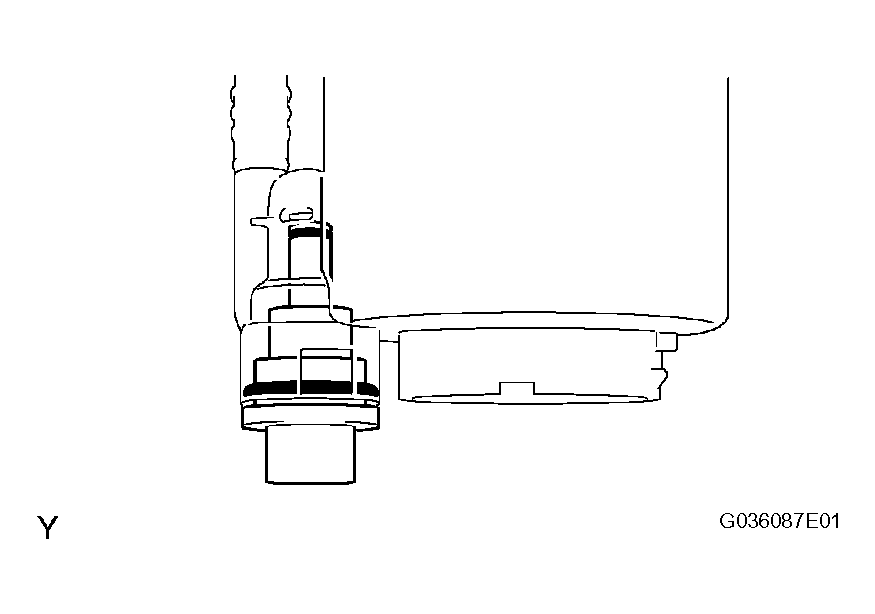

1. Remove the fuel pressure regulator and the 2 O-rings.

  Fig 9: Identifying Fuel Pressure Regulator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
