Fuel Pressure Regulator: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
1. Apply a light coat of gasoline or spindle oil to the O-ring.

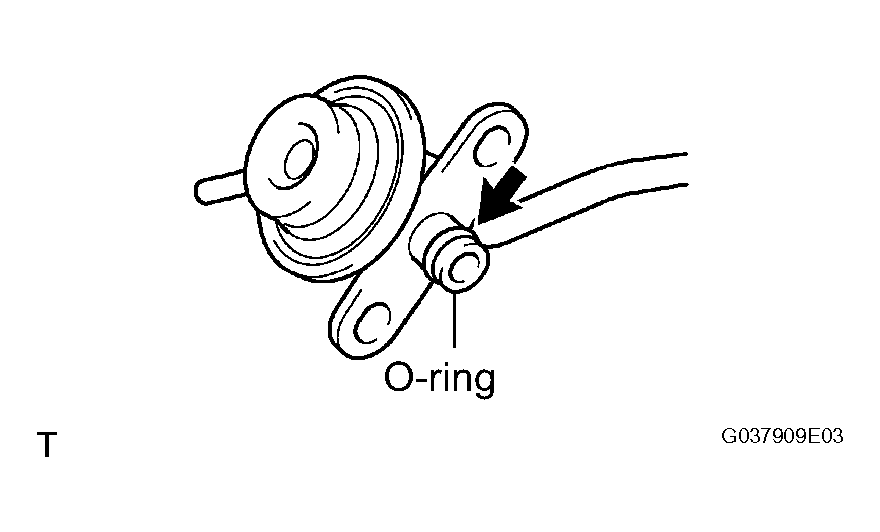

  Fig 1: Identifying O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the fuel pressure regulator with the 3 bolts.
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

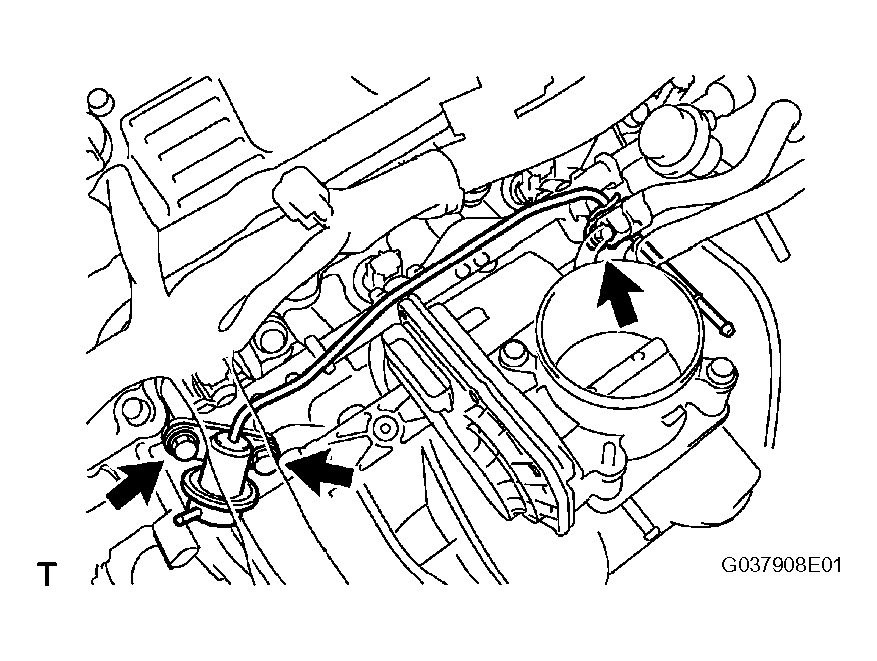

  Fig 2: Identifying Fuel Pressure Regulator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the harness clamp bracket with the bolt.
  Torque: 8.2 N*m (84 kgf*cm, 73 in.*lbf)
4. Connect the engine wire harness clamp.
5. Connect the VSV connector.
6. Connect the throttle with motor body connectors.

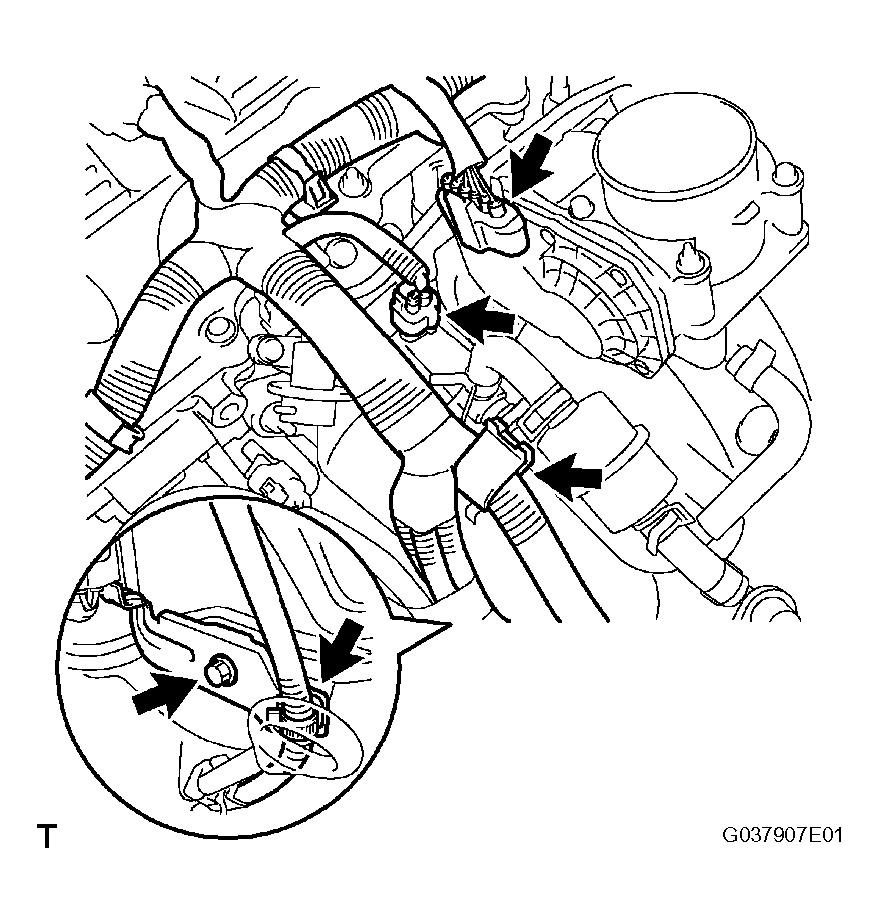

Fig 3: Identifying Harness Clamp Bracket Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT NO. 2 FUEL HOSE (See INSTALLATION )
INSTALL INTAKE AIR CONNECTOR (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
CHECK FOR FUEL LEAKAGE (See ON-VEHICLE INSPECTION )
