Section 21 (Charging System (2TR-FE)): Generator: Removal: Disassembly

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE GENERATOR PULLEY

    SST 09820-63010 (09820-06010, 09820-06020)

    HINT:

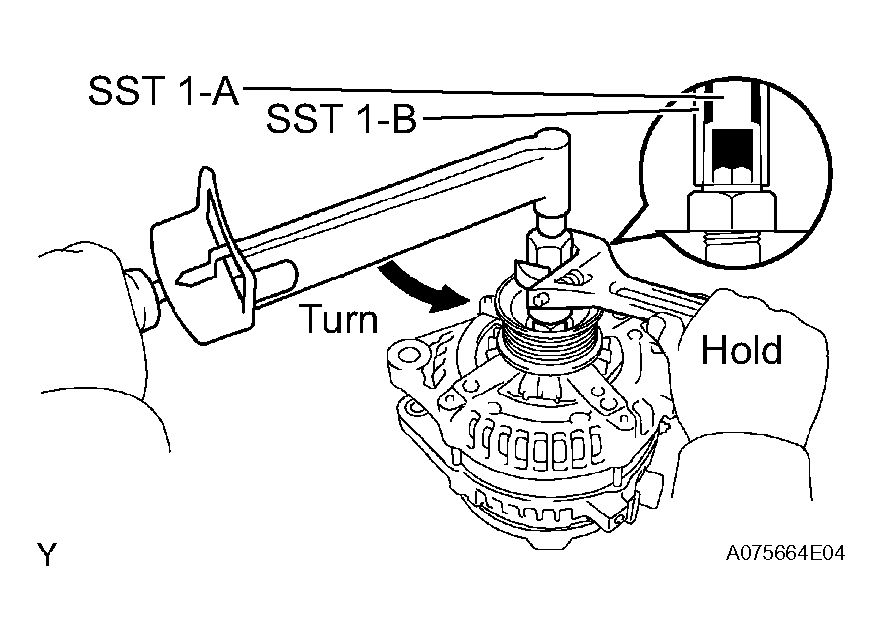

    Fig 1: Removing Generator Pulley
    G04409793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GENERATOR PULLEY

    SST 1-A and B 09820-06010
    SST 2 09820-06020
    1. Hold SST 1-A with a torque wrench, and tighten SST 1-B clockwise with the specified torque.

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

      NOTE: Check that the SST is secured to the generator rotor shaft.
    2. Mount SST 2 in a vise.
    3. Insert SST 1-A and B into SST 2, and attach the generator pulley nut to SST 2.

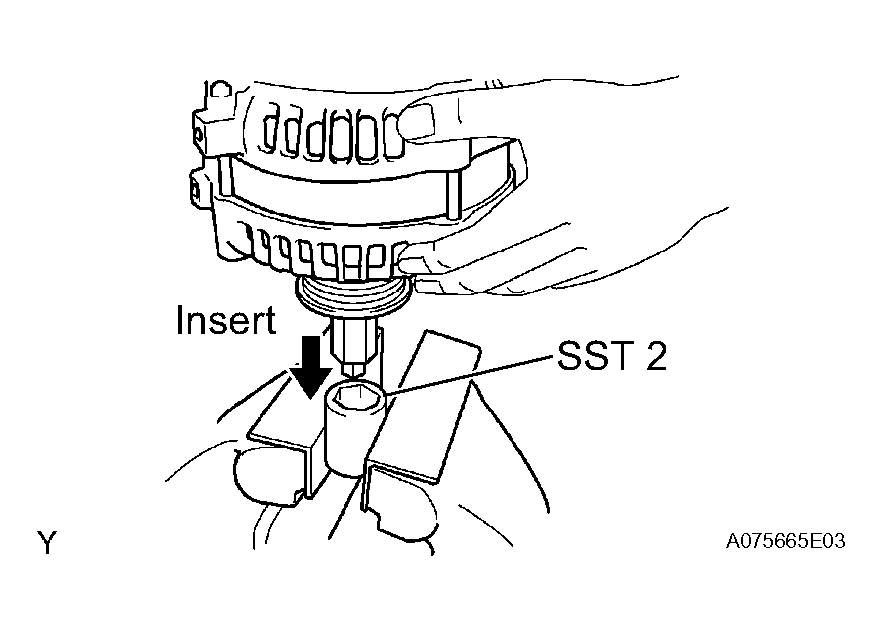

      Fig 2: Mounting SST 2 In Vise
      G04409794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. To loosen the generator pulley nut, turn SST 1-A in the direction shown in Fig 3.
      NOTE: To prevent damage to the rotor shaft, do not loosen the generator pulley nut more than one-half turn.
    5. Remove the generator from SST 2.

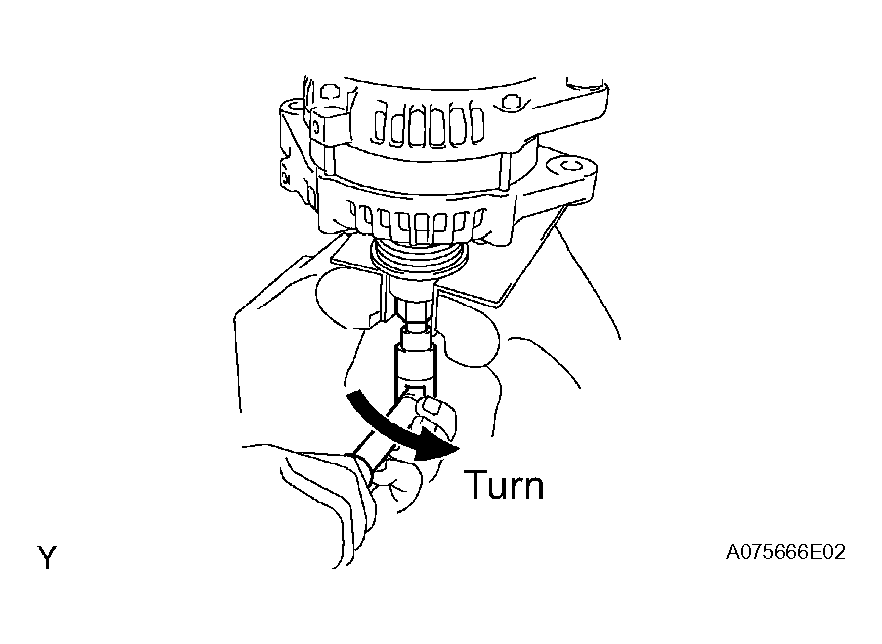

      Fig 3: Turning SST 1-A
      G04409795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Turn SST 1-B, and remove SST 1-A and B.
    7. Remove the generator pulley nut and generator pulley.

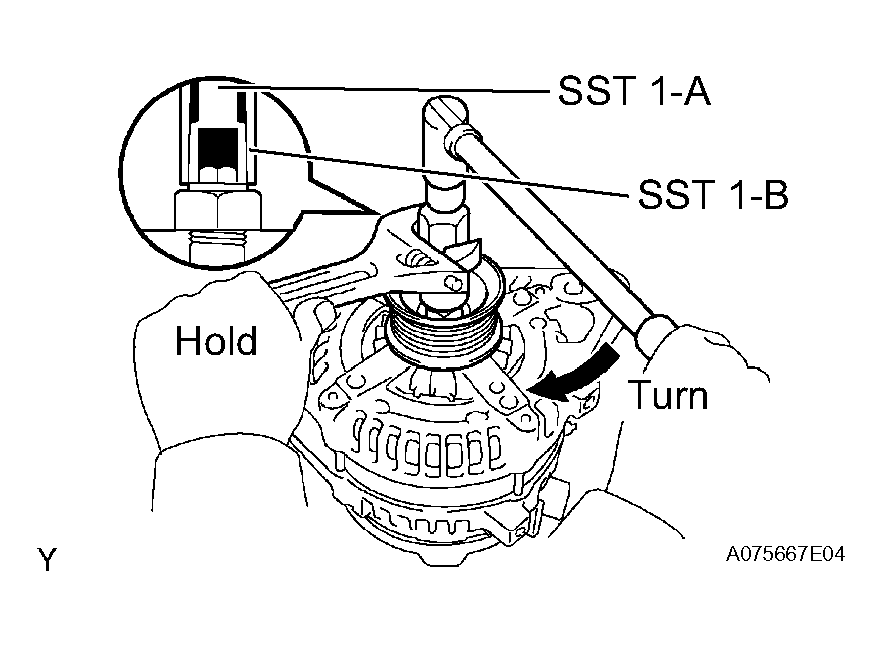

      Fig 4: Removing SST 1-A And B
      G04409796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE GENERATOR BRUSH HOLDER ASSEMBLY
    1. Remove the nut and terminal insulator.
    2. Remove the nut, screw and rectifier plate.
    3. Remove the 2 nuts and rear end cover.

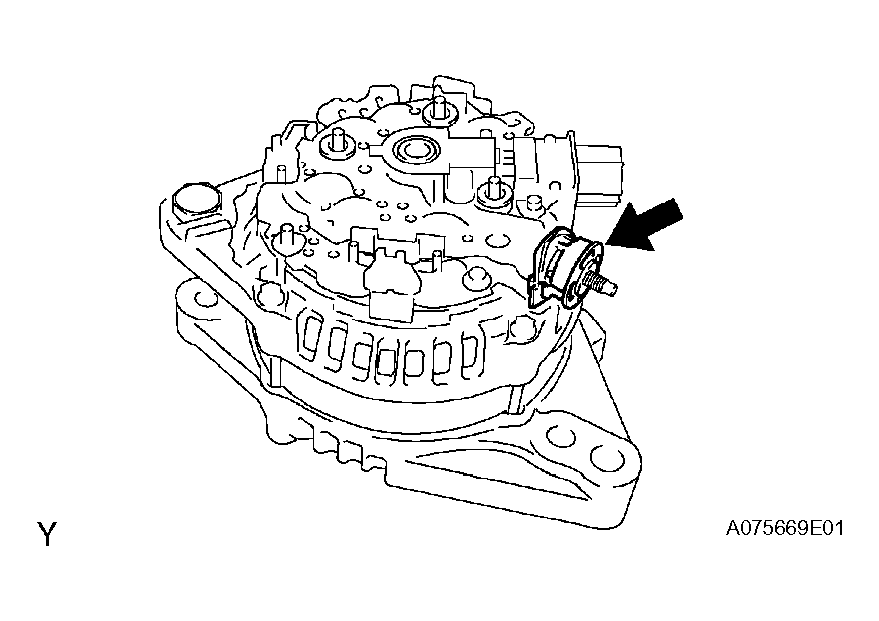

      Fig 5: Identifying Rear End Cover Nuts
      G04409797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the brush cover from the generator brush holder assembly.
    5. Remove the 3 screws and generator brush holder assembly.
    6. Remove the plate seal.

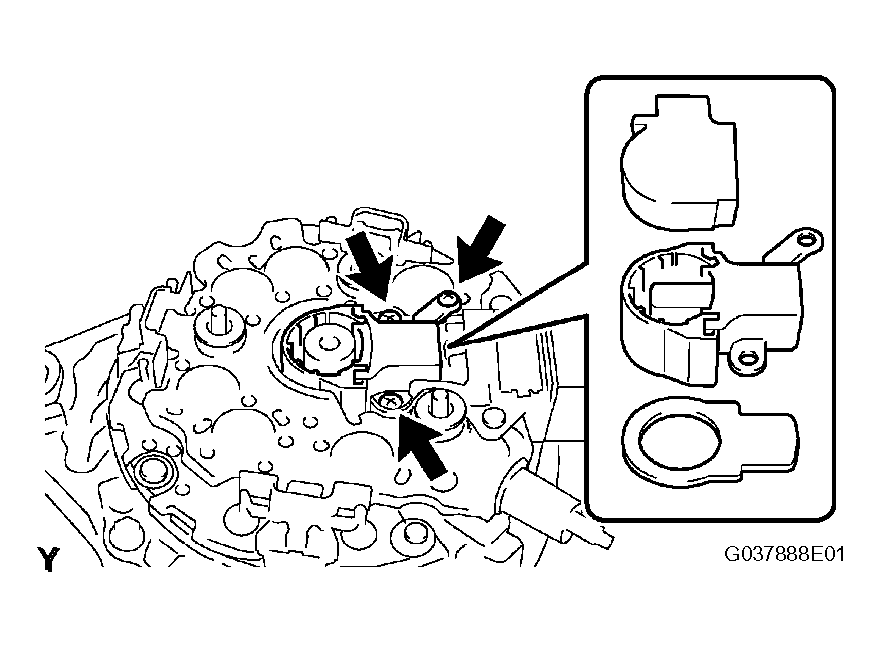

      Fig 6: Identifying Generator Brush Cover
      G04409798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE GENERATOR REGULATOR ASSEMBLY
    1. Remove the 2 screws and generator regulator assembly.

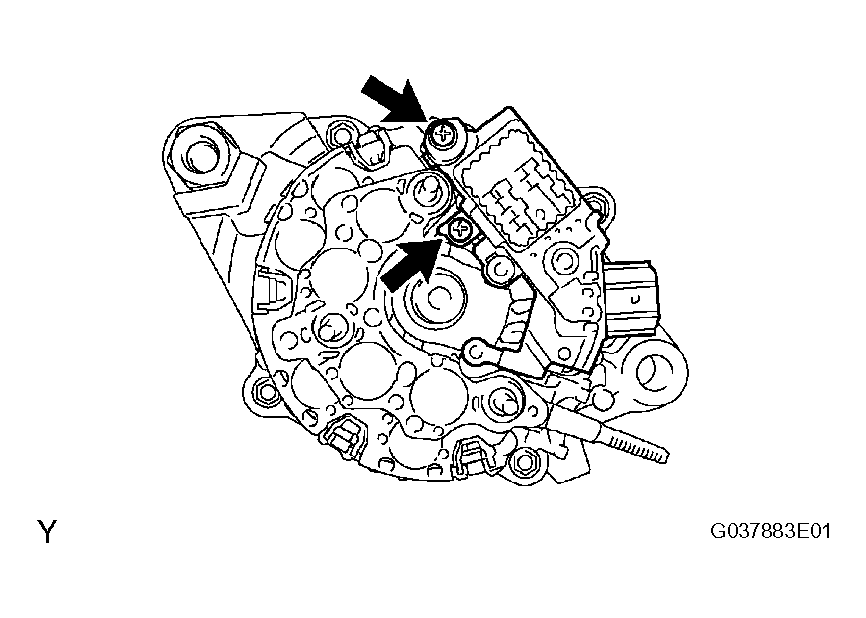

      Fig 7: Identifying Generator Regulator Assembly Screws
      G04409799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE GENERATOR HOLDER WITH RECTIFIER
    1. Remove the 3 screws and generator rectifier holder.

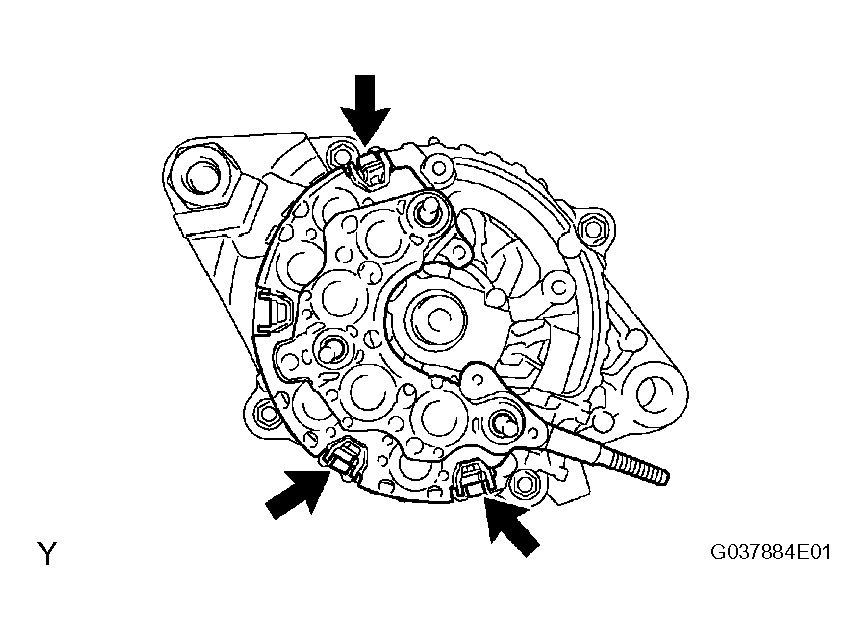

      Fig 8: Identifying Generator Rectifier Holder Screws
      G04409800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE GENERATOR ROTOR ASSEMBLY
    1. Remove the 3 terminal insulators from the rectifier end frame.
    2. Remove the 4 nuts.

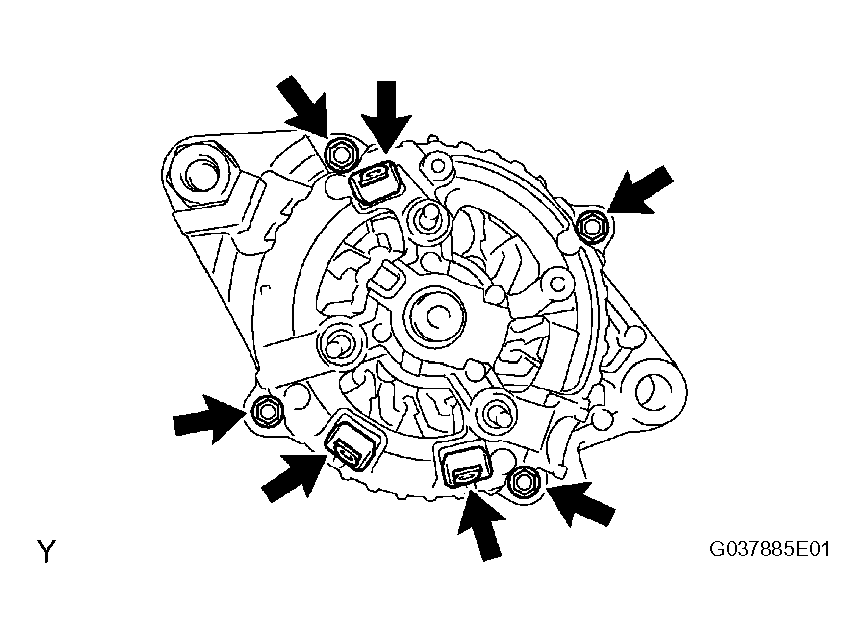

      Fig 9: Identifying Generator Rotor Assembly Nuts
      G04409801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

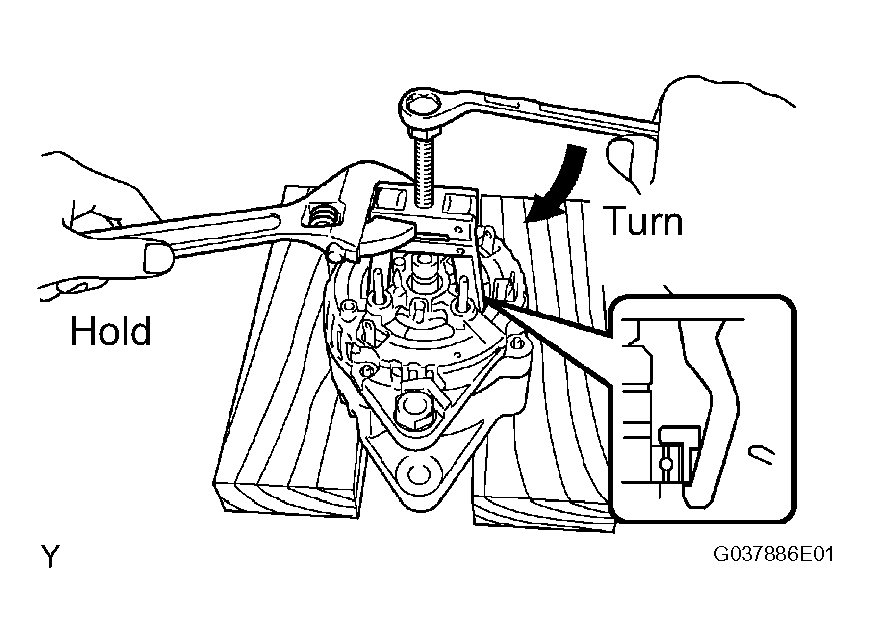

    3. Using SST, remove the rectifier end frame.

      SST 09286-46011

    4. Remove the plate retainer.
    5. Remove the generator rotor assembly from the drive end frame.
      NOTE: Do not drop the generator rotor assembly.

      HINT:

      If the generator rotor is engaged too firmly, lightly tap the generator rotor shaft to remove it using a plastic hammer.

      Fig 10: Removing Generator Rotor Assembly
      G04409802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
