INSTALL GENERATOR ASSEMBLY
1. Install the generator with the 2 bolts.
  Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

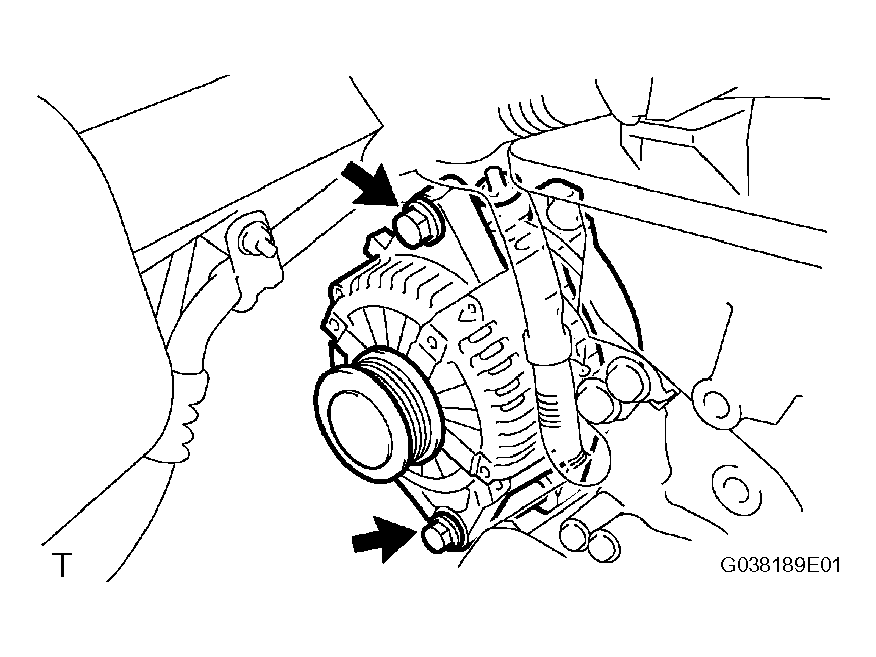

  Fig 1: Identifying Generator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the generator connector.
3. Install the generator wire with the nut.
  Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)
4. Install the terminal cap.

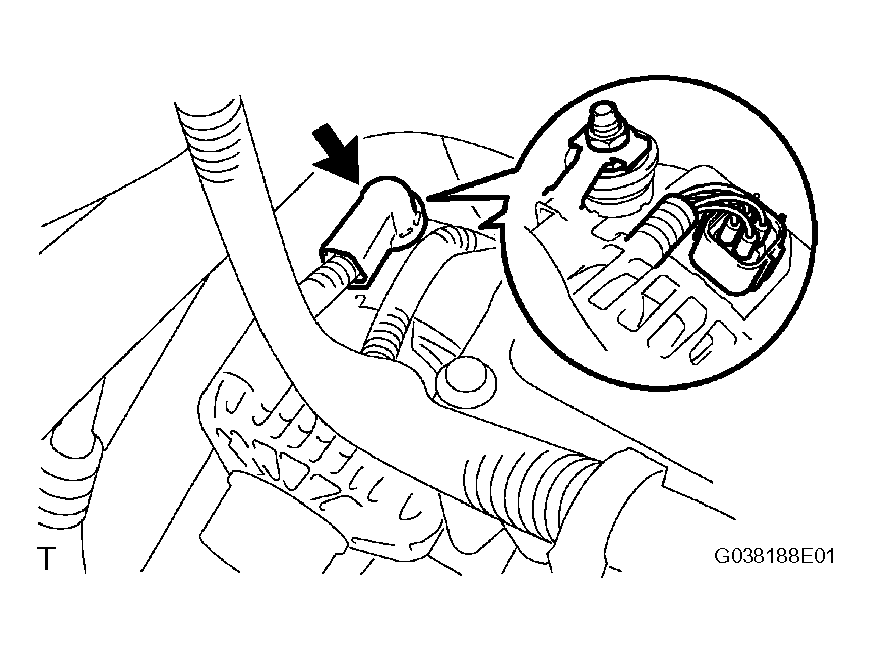

  Fig 2: Identifying Generator Wire Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FAN AND GENERATOR V BELT (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
