Fuel Pressure Regulator: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCHARGE FUEL SYSTEM PRESSURE (See  FUEL SYSTEM  )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  3. REMOVE V-BANK COVER (See  REMOVAL  )
  4. REMOVE AIR CLEANER ASSEMBLY (See  REMOVAL  )
  5. DISCONNECT NO.2 FUEL PIPE SUB-ASSEMBLY (See  REMOVAL  )
  6. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
    1. Remove the 2 bolts, then remove the fuel pressure regulator.
    2. Remove the vacuum hose.

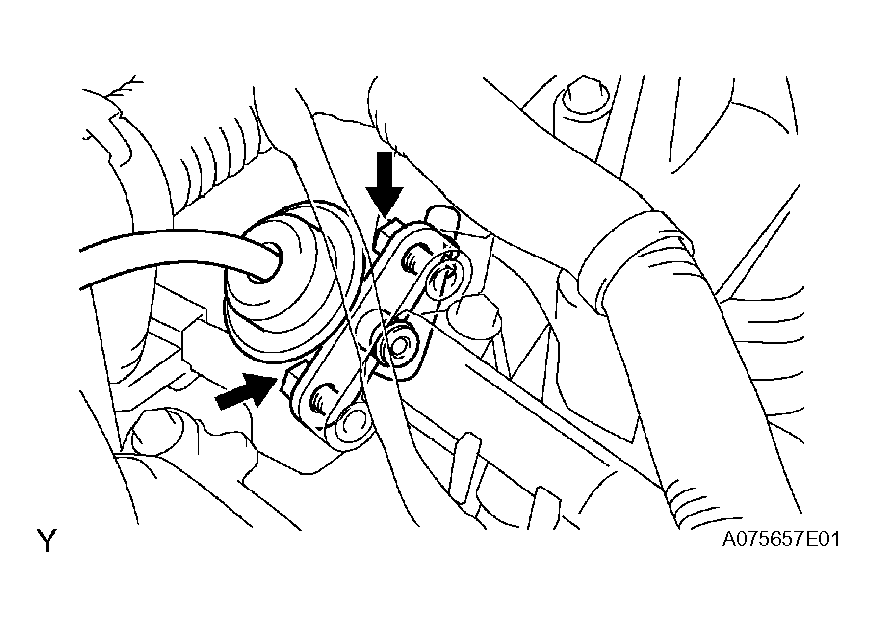

      Fig 1: Removing Fuel Pressure Regulator
      G04409144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
